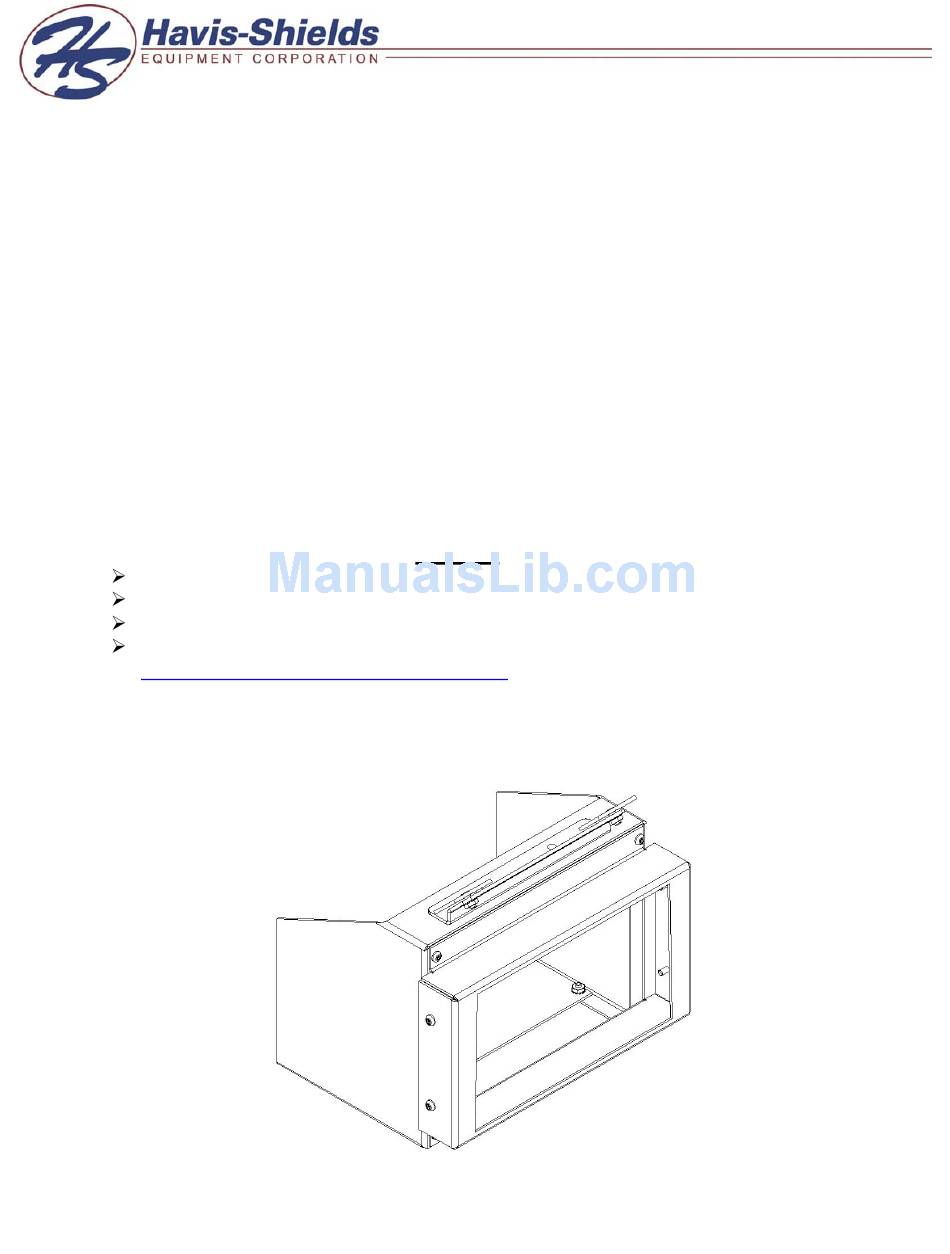

INSTALL INSTRUCTIONS S-CM-112-IMP-1

TOOLS REQUIRED:

Ratcheting wrench
Socket set

HARDWARE:

QTY DESCRIPTION
2
Upper backing plate
1
Radio mounting bracket
8
#8 x 3/8" T-20 torx screw
2
#10 Keps nut
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
For product support, visit the Install Instructions Section of our website at
http://havis.com/Installation/Installation.html
RADIO RELOCATION HOUSING
2006-2009 CHEVROLET IMPALA
Always
Screwdriver set
T-20 torx bit
PART #
CM001620
CM001622-IMP
CM86508
GSM30028
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Radio Relocation Housing S-CM-112-IMP-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Havis-Shields Radio Relocation Housing S-CM-112-IMP-1

  • Page 1 Radio mounting bracket #8 x 3/8” T-20 torx screw #10 Keps nut Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit For product support, visit the Install Instructions Section of our website at http://havis.com/Installation/Installation.html...
  • Page 2 Remove trim around AM/FM radio and Remove lower plastic trim panel and thermostat controls. disconnect cable from lighter plugs. Attach mounting bracket to AM/FM radio Remove AM/FM radio screws, wire and install torx screws to hold radio. harness and antenna. S-CM-112-IMP-1_INST_11-08...
  • Page 3 Slide studded mounting plates into the Mount assembled AM/FM radio bracket slots used previously to hold the trim and radio to main relocation housing. panel that contained the lighter plugs. Mount “hat” bracket to studded mounting Attach main relocation housing to plates.
