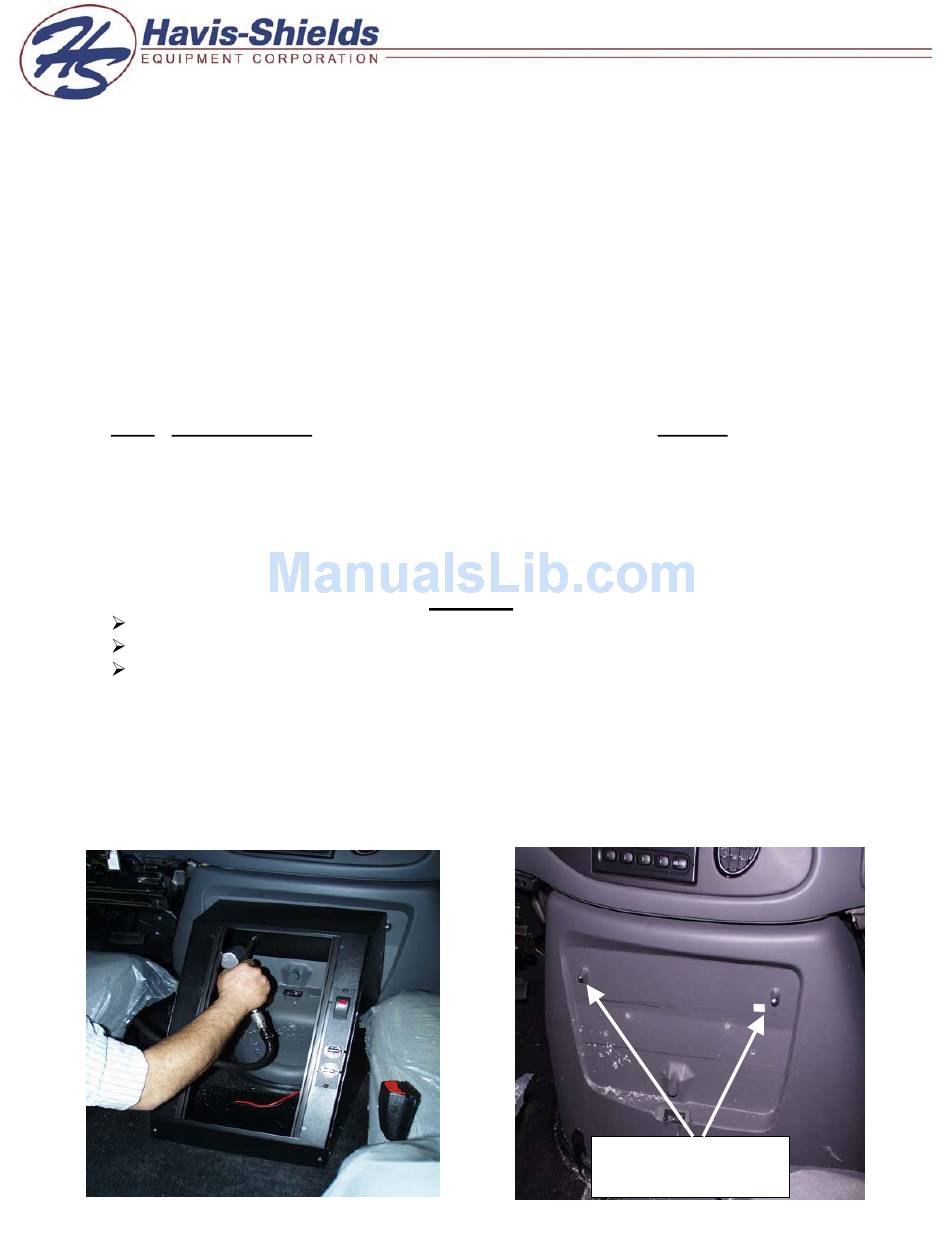

INSTALL INSTRUCTIONS C-VS-1800-ECO
2004-2008 FORD ECONOLINE VAN
TOOLS REQUIRED:
3/8" Standard Socket Set
3/8" Metric Socket Set
3/8" Ratcheting Wrench
HARDWARE & COMPONENTS:
QTY DESCRIPTION
6
¼-20 Nylock nut
4
¼" Flat washer
2
¼-20 x ¾" Carriage bolt
4
¼-20 x 1 ¼" Hex head bolt
4
#10 x 1" Phillips sheet metal screw
1
Torx Screw Hardware Kit
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
INSTALL C-VS-1800-ECO:
1. Remove O.E.M. engine cover accessory package (cup holder/storage pocket).
2. Place new console housing with mount brackets against engine cover and
floor. Mark engine cover and drill four (4) - 5/16" diameter holes. Mark
outline of floor bracket.
Powered drill w/ drill bit set
Open-end wrench set
Screw driver set
!
Always
PART #
GSM30016
GSM31005
GSM32000
GSM33003
GSM33196
C-HK-1
Also remove
washers from studs
C-VS-1800-ECO_INST_9-07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Havis-Shields 2004-2008 Ford Econoline Van C-VS-1800-ECO
Summary of Contents for Havis-Shields 2004-2008 Ford Econoline Van C-VS-1800-ECO
- Page 1 #10 x 1” Phillips sheet metal screw Torx Screw Hardware Kit Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit INSTALL C-VS-1800-ECO: 1.
- Page 2 3. Remove mount brackets from console housing and attach to engine cover with ¼” x 1 ¼” hex head bolts, stop nuts and fender washers. 4. Mark and drill four 5/32” diameter holes and attach floor mount plate with # 10 x 1” sheet metal screws. Also add two ¼” x ¾” carriage bolts facing up. 5.
- Page 3 6. Attach Console to Mount Brackets. 7. Finished Product C-VS-1800-ECO_INST_9-07...
