INSTALL INSTRUCTIONS C-TCB-4
S-15 JIMMY, S-15 SONOMA, S-10 BLAZER, S-10 PICK-UP
TOOLS REQUIRED:
3/16" Allen wrench
3/8" Metric socket set
3/8" Standard socket set
HARDWARE &COMPONENTS:
QTY DESCRIPTION
1
Pole support assembly
1
Telescoping pole assembly
1
Side support brace
1
Lateral support brace
1
5/16-18 Nylock nut
2
5/16"Flat washer
1
5/16-18 x 1"Hex head bolt
2
¼" x ¾"Hex head lag bolt

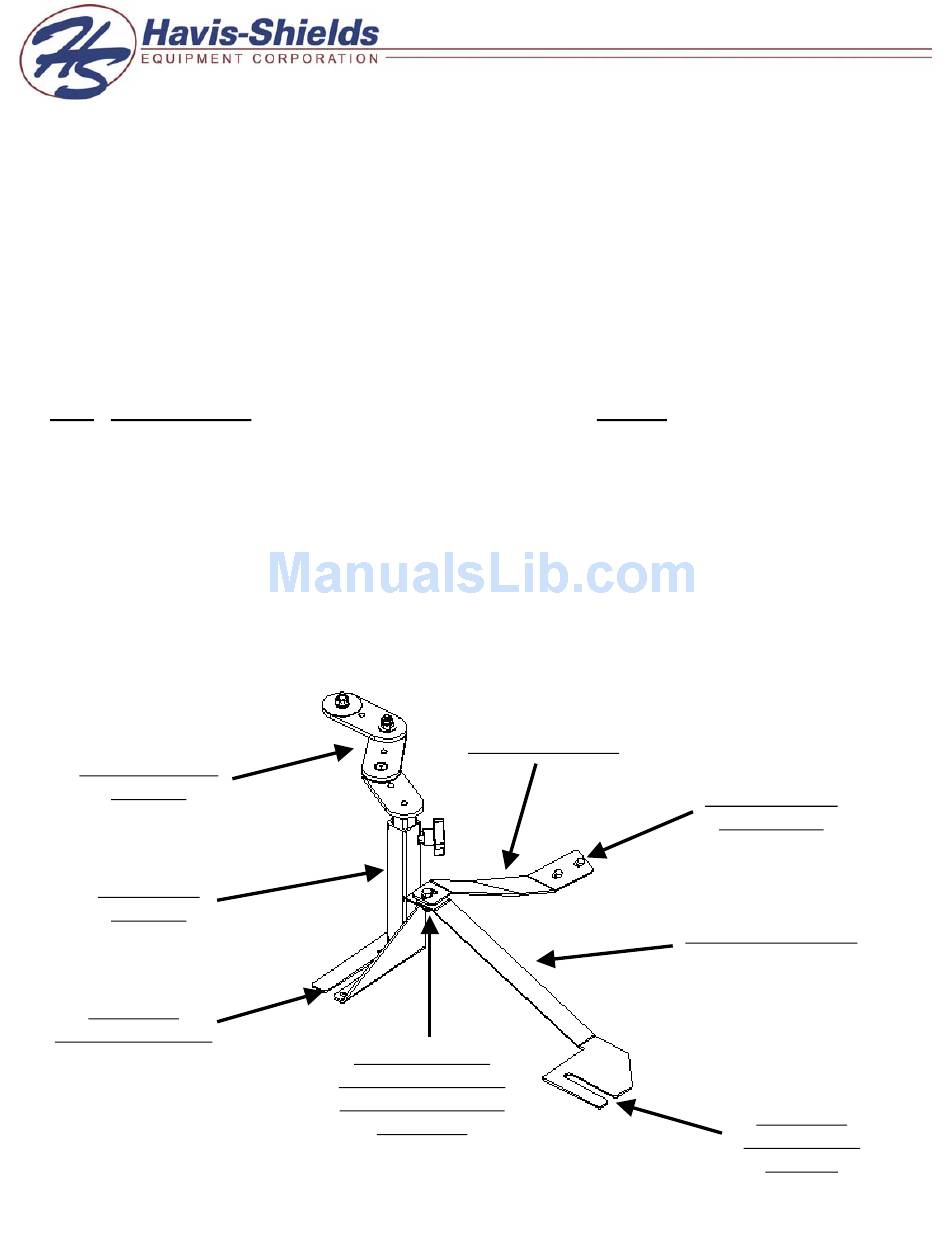

Telescoping pole
assembly
Pole support
assembly
Front inner
passenger seat base
bolt
TELESCOPING COMPUTER BASE
1995-2003 CHEVROLET/GMC
5/16-18 x 1"Hex
head bolt, 5/16" Flat
washer, and 5/16-18
Nylock nut
3/8" Ratcheting wrench
Open-end wrench set
Powered drill w/ 3/16" drill bit
PART #
CM93071-4
CM93072-1
CM93115
CM93126
GSM30017
GSM31006
GSM33012
GSM33060-1
Side support brace
(2)-¼" x ¾"Hex
head lag bolt
Lateral support brace
Front outer
passenger seat
base bolt
C-TCB-4-INST-WIP-12-04
Advertisement
Table of Contents
Related Manuals for Havis-Shields Telescoping Computer Base C-TCB-4
Summary of Contents for Havis-Shields Telescoping Computer Base C-TCB-4
- Page 1 INSTALL INSTRUCTIONS C-TCB-4 TELESCOPING COMPUTER BASE 1995-2003 CHEVROLET/GMC S-15 JIMMY, S-15 SONOMA, S-10 BLAZER, S-10 PICK-UP TOOLS REQUIRED: 3/16” Allen wrench 3/8” Metric socket set 3/8” Standard socket set HARDWARE &COMPONENTS: QTY DESCRIPTION Pole support assembly Telescoping pole assembly Side support brace Lateral support brace 5/16-18 Nylock nut 5/16”Flat washer...
- Page 2 SUB ASSEMBLY: 1. Confirm receipt of all hardware and components. 2. Loosen or remove front inner and outer passenger seat bolts on vehicle. INSTALLATION: 1. Mount C-TCB-4 into vehicle • Slide pole support assembly between front inner seat base mount and floor of vehicle. •...
