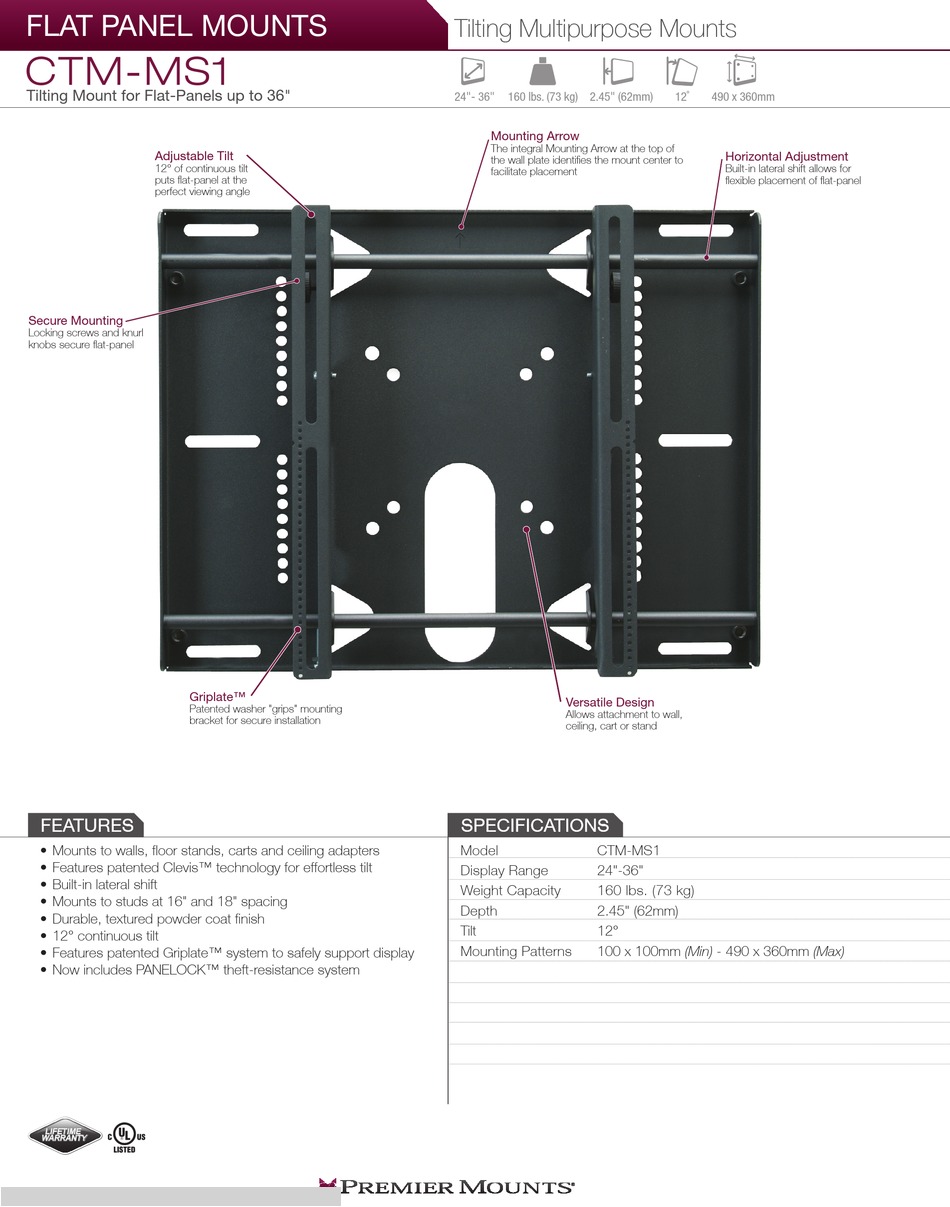

Premier Mounts CTM-MS1 Brochure & Specs

FLAT PANEL MOUNTS

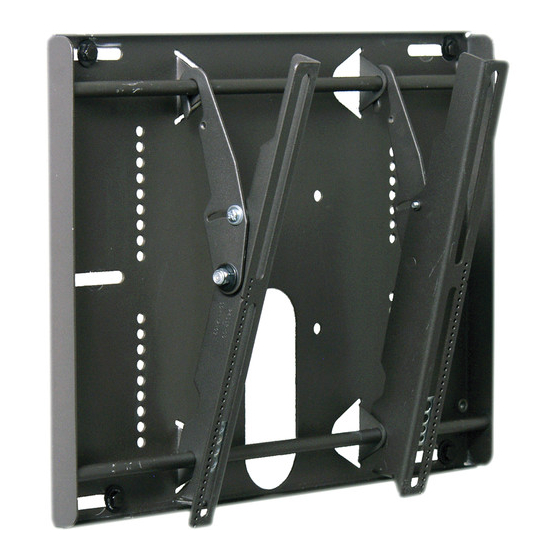

CTM-MS1
Tilting Mount for Flat-Panels up to 36"
Adjustable Tilt
12° of continuous tilt
puts flat-panel at the
perfect viewing angle
Secure Mounting
Locking screws and knurl
knobs secure flat-panel
Griplate™
Patented washer "grips" mounting
bracket for secure installation
FEATURES FEATURES
• Mounts to walls, floor stands, carts and ceiling adapters
• Features patented Clevis™ technology for effortless tilt
• Built-in lateral shift
• Mounts to studs at 16" and 18" spacing
• Durable, textured powder coat finish
• 12° continuous tilt
• Features patented Griplate™ system to safely support display
• Now includes PANELOCK™ theft-resistance system
LIFETIME
WARRANTY
Tilting Multipurpose Mounts
24"- 36" 160 lbs. (73 kg) 2.45" (62mm)
Mounting Arrow
The integral Mounting Arrow at the top of
the wall plate identifies the mount center to
facilitate placement
Versatile Design
Allows attachment to wall,
ceiling, cart or stand
SPECIFICATIONS SPECIFICATIONS
Model CTM-MS1
Display Range 24"-36"
Weight Capacity 160 lbs. (73 kg)
Depth 2.45" (62mm)
Tilt 12°
Mounting Patterns 100 x 100mm (Min) - 490 x 360mm (Max)
12˚ 490 x 360mm
Horizontal Adjustment
Built-in lateral shift allows for
flexible placement of flat-panel
