Havis-Shields Angled Series Consoles C-AS-MMP Installation Instructions

C-AS-MMP ANGLED SERIES CONSOLES

INSTALLATION INSTRUCTIONS

FOR MODELS C-AS-1025, 1325, 1525 & 1725

TOOLS REQUIRED:

Standard and Metric Socket Set with 6" Extension
Standard and Metric Wrench Set
Torx driver #T15 and #T20

HARDWARE:

QTY: DESCRIPTION:
12 #8 X 3/8 Black Torx Screw
4 ¼-20 X ½" Pem Stud
4 ¼" Lock Washer
4 ¼-20 Hex Nut

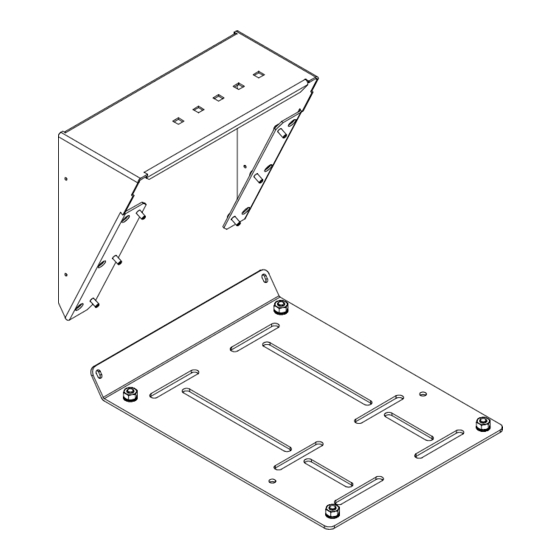

PARTS SUPPLIED

1 CM93569 – Monitor Platform Frame
1 CM93628 – Support Plate
1 Pair of Wire Panels
C-AS-MMP
Monitor Mounting Platform
INSTALLATION: (Refer to pictures on page 2)
1. Turn console over and remove (2) #8 X 3/8" Black torx screws on bottom of console.
2. Place support plate on bottom of console as shown and replace (2) #8 X 3/8" Black torx screws.
3. Turn console back over and place (4) ¼-20 X ½" pem studs on bottom of support plate and insert
(4) ¼" lock washers and (4) ¼" Hex nuts over studs on inside of console housing, then tighten.
4. Place monitor platform on front side of console and secure with (6) #8 X 3/8" Black torx screws.
5. Place wire panels on front sides of console and secure with (6) #8 X 3/8" Black torx screws.
6. Console is ready for mounting in car.

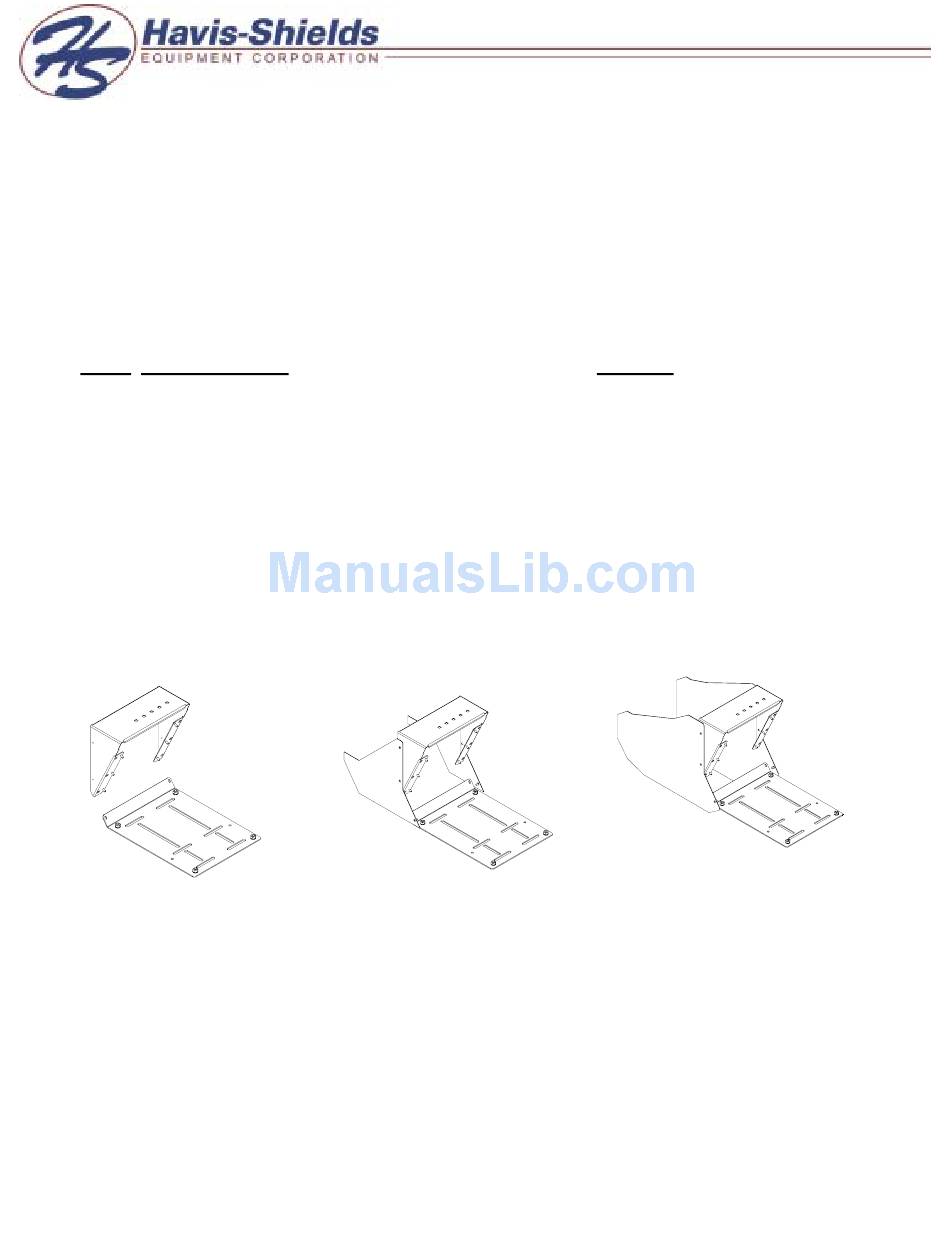

C-AS-MMP-CV
Monitor Mounting Platform
& Wire Panels Crown Vic
PART #:
CM86508
GSM32220
GSM31026
GSM30005
C-AS-MMP-IMP
Monitor Mounting Platform
& Wire Panels Impala
