Installation and Operation

Before permanently securing the unit for final installation of cabling behind walls or ceilings, test for
proper operation of the unit and the cables in your system.
It is recommended that you leave enough ventilation space to provide sufficient airflow and
cooling, especially if you are going to leave the unit powered at all times.
An optional HDMI cable clip (included) enables a method for securing HDMI cables the HDMI
connectors on the back of the units and helps defeat intermittent or complete signal loss due to
poor connection.
Active Input / Output LED Indicators
The front LEDs indicate that a valid HDMI / DVI-D connection is made between the KD-HDDA Pro
›
unit and each Input / Output.
Cable Box
HDMI

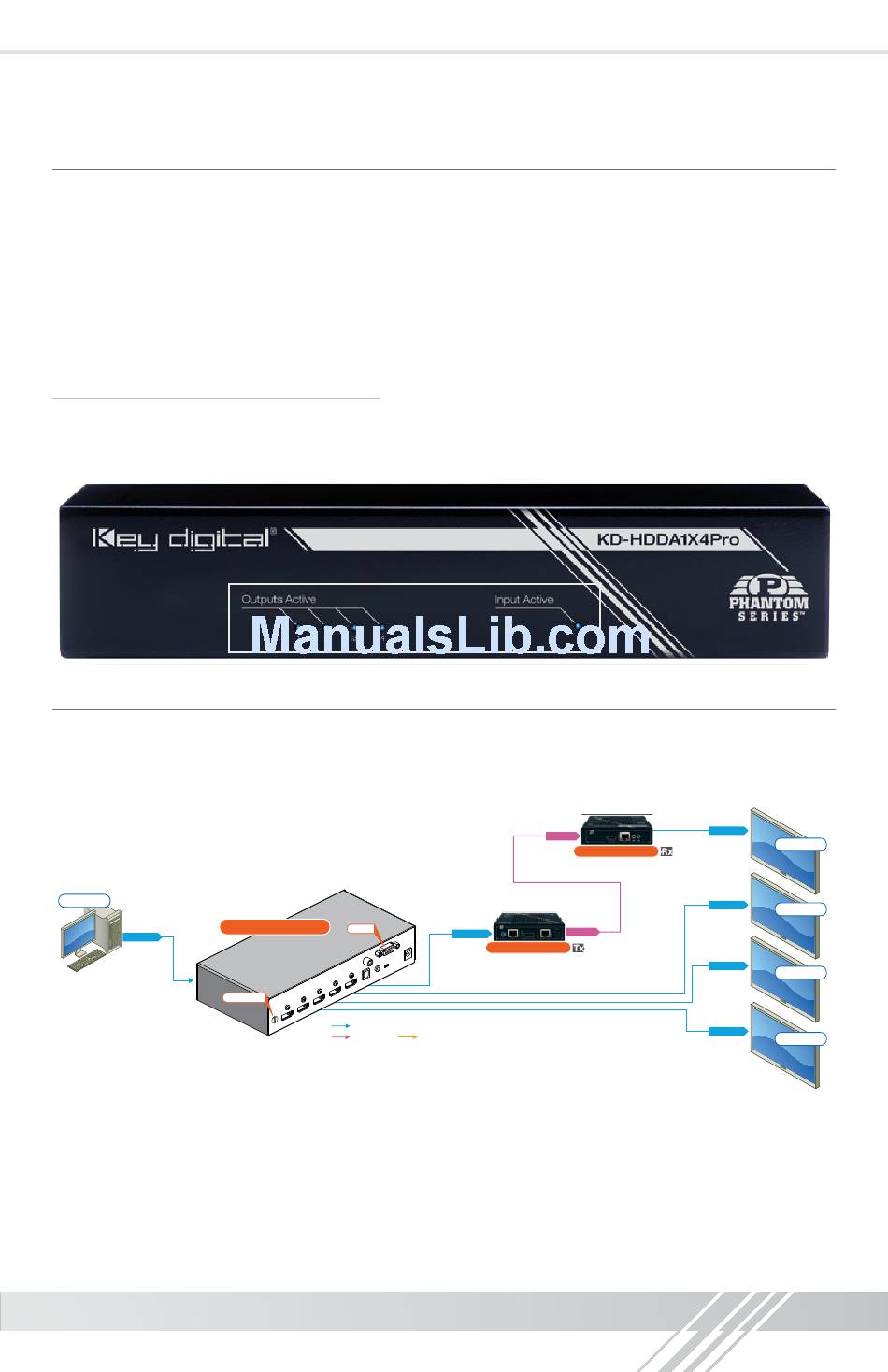

DVI Applications for KD-HDDA Pro Series

KD-HDDA Pro Distribution Amplifiers can also be used with DVI-D sources and displays. For
these applications, use DVI to HDMI (Key Digital model number KD-MFHDMI or KD-FMHDMI)
adapters. Note that while HDMI supports both video and audio over an HDMI cable, DVI-D
supports only video.
Desktop PC
DVI Video*
KD-HDDA1x4Pro
EDID Control
KD-HDDA1x4Pro
RS-232
EDID Control
HDMI
Audio
CAT6/STP
KD-HDDA1x4Pro
RS-232
EDID Control
DVI
CAT6/STP
Up to 600'
with Key Digital
KD-CAT6STP1X
RS-232
CAT6/STP
Up to 400'
KD-CATHD500Pro
with Key Digital
®
KD-CAT6STP1X
HDMI
CAT6/STP
KD-CATHD500Pro
Audio Rcvr.
Audio
CAT6/STP
Up to 600'
KD-CATHD500FW
with Key Digital
®
KD-CAT6STP1X
CAT6/STP
DVI Video*
KD-CATHD500FW
Audio
CAT6/STP
KD-CATHD500FW
®
CAT6/STP
HDMI/DVI *
KD-CATHD500FW
HDMI
Display 1
HDMI
Display 2
HDMI
Display 3
HDMI
Audio Display 4
Speakers
Audio
Sub-Woofer
Audio Speakers
DVI Video*
DVI Video*
DVI Video*
DVI Video*
HDMI/DVI
*
Display 1
Display 2
HDMI/DVI
*
3
Display 1
Display 2
Display 3
Display 4
