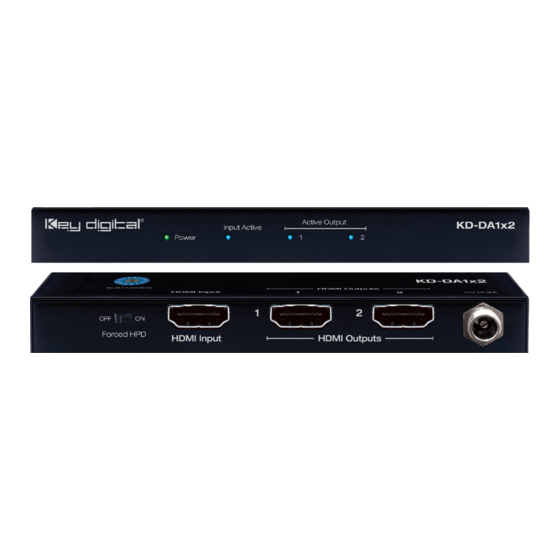

- Page 1 KD-DA1x2 KD-DA1x4 KD-DA1x8 4K/18G HDMI Distribution Amplifiers Operating Instructions KD-DA1x2 KD-DA1x4 KD-DA1x8 The Experts in Digital Video Technology and Solutions ™...
-
Page 2: Table Of Contents
Always follow the instructions provided in this Operating Manual. Note: Please visit www.keydigital.com for the latest product documentation and software › downloads. Product features and specifications are subject to change without notice. © 2019 Key Digital, Inc. All rights reserved. -
Page 3: Introduction
® to offer the best in quality, performance, and reliability, while providing a cost-effective, ultra-slim HDMI distribution solution. The KD-DA1x2/1x4/1x8 provide one input to multiple outputs HDMI distribution without signal degradation. KD-DA1x2/1x4/1x8 HDMI Distribution Amps support all SD, HD, VESA and Ultra HD/4K video standards, including 4K, 1080p/60, 1920x1200 and support of HDCP 2.2 and HDR10. -
Page 4: Quick Setup Guide
CAT5e/6 Quick Setup Guide KD-X222PO HDMI Up to 125 ft. @ Step 1: Find a safe and convenient location to mount or place KD-DA1x2/1x4/1x8 unit CAT5e/6 Step 2: Begin with the KD-DA1x2/1x4/1x8 unit and all input/output devices HDMI HDMI turned off with power cables removed... -
Page 5: Installation And Operation
“handshake” and typically includes manufacturer, serial number, product type, resolutions supported by the display, display size, pixel mapping data, etc. Key Digital EDID Control allows the integrator to choose the handshake that will be provided to source devices of the Rotary EDID Control Switch system. -
Page 6: Hot Plug Control
The possible EDID settings can range from ‘0’ to ‘15’. (‘0’ is the default). Copy EDID from HDMI Output 1 1080i, 2Ch Audio 1080i, Dolby/DTS 5.1 Audio 1080i, HD Audio 1080p, 2Ch Audio 1080p, Dolby/DTS 5.1 Audio 1080p, HD Audio 4Kx2K@60, 10.2G, HDR10, 2CH AUDIO 4Kx2K@60, 10.2G, HDR10, DOLBY/DTS 5.1 4Kx2K@60, 10.2G, HDR10, HD AUDIO... -
Page 7: Specifications
» KD-DA1x4 - 6.9” x 3.25” x .55” KD-DA1x8 - 10.75” x 4.01” x 0.67” Packaging Dimensions: KD-DA1x2 - 8.1” x 4.7” x 3.5” (205x120x90 mm) » KD-DA1x4 - 8.1” x 4.7” x 3.5” (205x120x90 mm) KD-DA1x8 - 12” x 5.1” x 2.95” (307x130x75 mm) Product Weight: KD-DA1x2 - 0.5 lb... -
Page 8: Important Product Warnings & Safety Instructions
Damage to the power supply or power plug » Exposure to rain or moisture » Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the Key Digital Warranty and risk damage to your unit and associated equipment. ®... -
Page 9: How To Contact Key Digital
Please email any comments/questions about the manual to: E-mail: customersupport@keydigital.com › Warranty Information All Key Digital products are built to high manufacturing standards and should provide years ® of trouble-free operation. They are backed by a Key Digital Limited 3 Year Product Warranty Policy. http://www.keydigital.com/warranty.htm... - Page 10 , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important. Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
