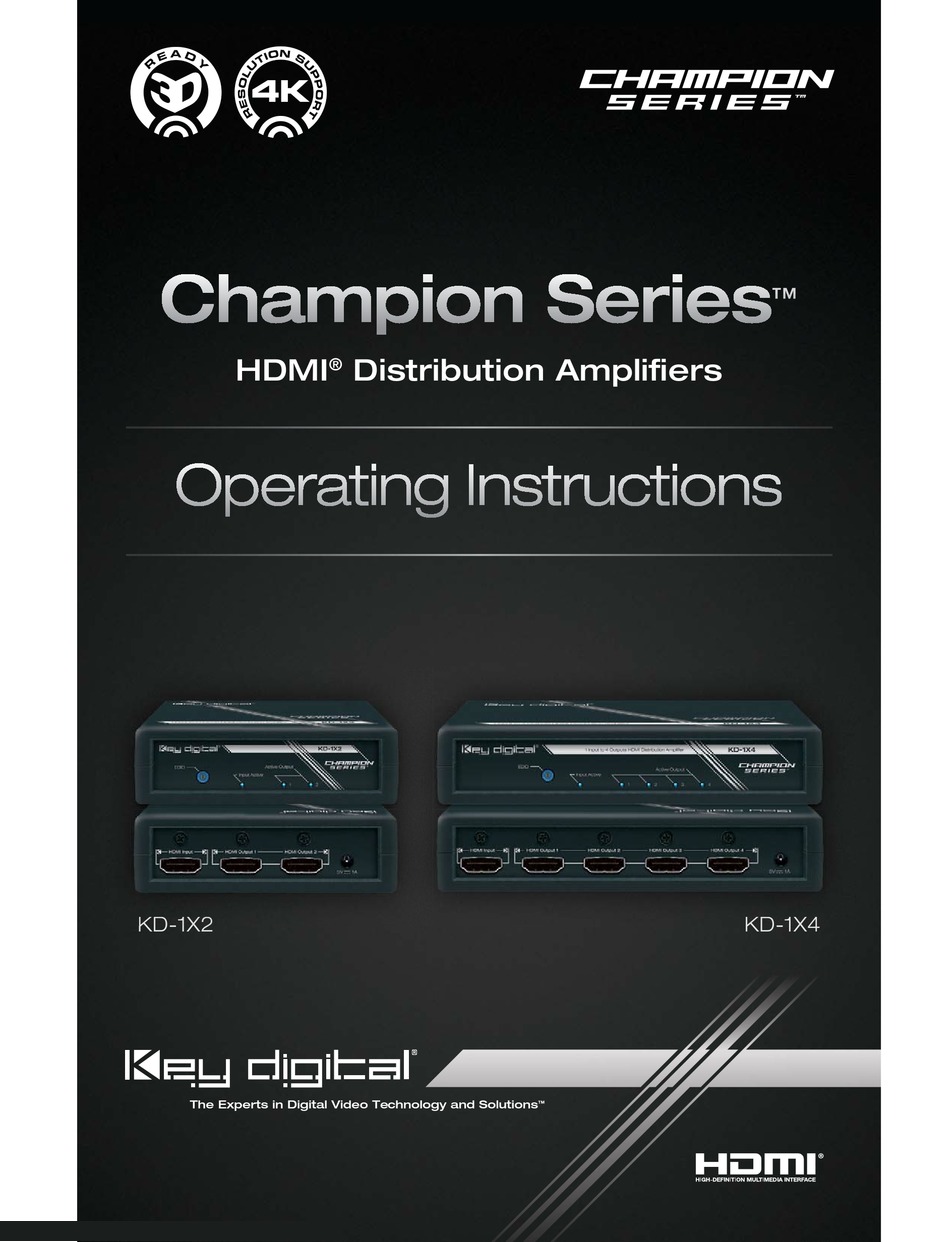

- Page 1 ™ ™ ™ ® HDMI Distribution Amplifiers KD-1X2 KD-1X2 KD-1X4 The Experts in Digital Video Technology and Solutions ™...
-
Page 2: Table Of Contents
............KD-1X2 KD-1X4 Always follow the instructions provided in this Operating Manual. © 2012 Key Digital, Inc. All rights reserved. -
Page 3: Introduction
HDMI Distribution Amplifiers are designed and engineered to offer the best in quality, performance, and reliability while providing a cost effective HDMI/ DVI distribution solution. The KD-1X2 and KD-1X4 HDMI Distribution Amplifiers provide single input to multiple output distribution and maintain crystal-clear, pristine picture and sound quality. -
Page 4: Quick Setup Guide
Step 2: Begin with the KD-1X2; KD-1X4 unit and all input/output devices turned off with power cables removed ➲ Step 3: Connect your HDMI or DVI source to the input port of your KD-1X2; KD-1X4 unit ➲ Step 4: Connect your HDMI or DVI displays to the output port of your KD-1X2; KD-1X4 unit ➲... -
Page 5: Dvi Applications For Kd-1X2; Kd-1X4
DVI Applications for KD-1X2; KD-1X4 KD-1X2; KD-1X4 Distribution Amplifiers can also be used with DVI sources and displays. For these applications, use dual-link DVI to HDMI adapters. Note that while HDMI supports both video and audio over an HDMI cable, DVI supports only video. -
Page 6: Edid Control Settings
At times, your HDMI sources and display may not synchronize properly. This is when EDID* control should be utilized. KD-1X2; KD-1X4 Distribution Amps feature an internal library of default settings that ensure that your HDMI source’s output is compatible with the display devices. -
Page 7: Mechanical / Technical Specifications
Power Source 5 Volt DC @ 1 Amp, 100-240 VAC, 50-60 Hz Dimensions KD-1x2: W = 3.75” , H = 1” , D = 2.5” KD-1x4: W = 5.5” , H = 1” , D = 2.75” Weight KD-1X4 - 0.9 lb... -
Page 8: Terminology
Terminology Below is a list of terms and acronyms that reoccur in this Owner’s Manual and are commonly referred to in the A/V Industry: Consumer An optional protocol used in HDMI systems that allows HDMI Electronics devices to pass control functions along to all devices within the Control system. -
Page 9: Important Product Warnings & Safety Instructions
Damage to the power supply or power plug Exposure to rain or moisture Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the ® Key Digital Warranty and risk damage to your unit and associated equipment. -
Page 10: How To Contact Key Digital
For marketing and public relations information, please contact us at: ➲ Phone: 914-667-9700 ➲ E-mail: marketing@keydigital.com Repairs and Warranty Service Should your product require warranty service or repair, please obtain a Key Digital ® Return Material Authorization (RMA) number by contacting us at: ➲ Phone: 914-667-9700 ➲... -
Page 11: Warranty Information
Warranty Information ® All Key Digital products are built to high manufacturing standards and should provide years of trouble-free operation. They are backed by a limited two-year parts and labor warranty. - Page 12 ® high quality video imaging is important. Key Digital is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers.
