KD-DA1x2X KD-DA1x4X

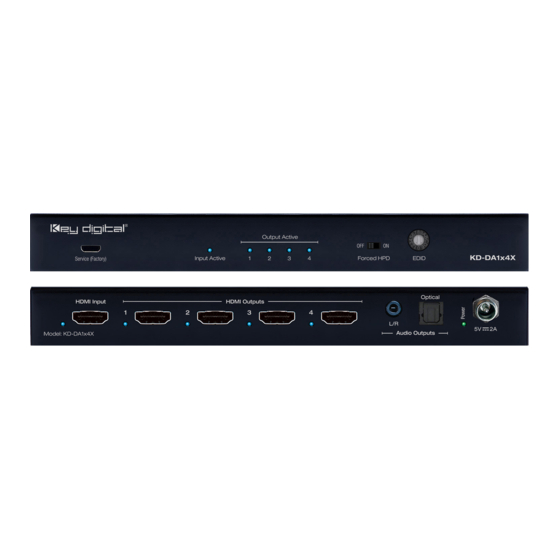

1x2/1x4 (4K@60Hz/18G/444) HDMI Distribution
Amplifiers with L/R / Optical Audio &
Operating Instructions
®
KD-DA1x2X
The Experts in Digital Video Technology and Solutions
De-Embedded Audio Output
KD-DA1x4X
™
Advertisement
Table of Contents
Related Manuals for Key Digital KD-DA1x2X
Summary of Contents for Key Digital KD-DA1x2X
- Page 1 , led by digital video pioneer Mike Tsinberg, develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important. Key Digital ® is at the forefront of the video industry for Home...
-
Page 2: Table Of Contents
Contacting Key Digital ........ -
Page 3: Quick Setup Guide
In addition to mounting with the supplied L-Brackets, multiple KD-DA1x2X/KD-DA1x4X may be mounted in CONNECT: KD-SMS16 using the side mounting screws. KD-SMS16 is a mounting shelf for Key Digital units with side mounting screw spacing of 2.912”, 2.582”, or 2.252”... - Page 4 HDMI Input/Output Port Specifications Audio Ports Specifications Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps signals Each audio output drives audio signals up to 2VRMS with a sampling rate of 192KHz › › See Supported standard 4K Video Formats table There are no volume or tone control features ›...
-
Page 5: Specifications
Specifications Technical: Input (Each): HDMI Connector, Type A, 19 Pin Female » Forced HPD Troubleshooting Tool Output: HDMI Connector, Type A, 19 Pin Female » When ON, Hot Plug Detection voltage is fixed on to the connected display » Bandwidth: TMDS bandwidth 18 Gbps »... -
Page 6: Contacting Key Digital
Damage to the power supply or power plug » Exposure to rain or moisture » Power Supply Use: You MUST use the Power Supply PROVIDED with your unit or you VOID the Key Digital Warranty ® and risk damage to your unit and associated equipment.
