EDID Control
2
KD-1X4CS

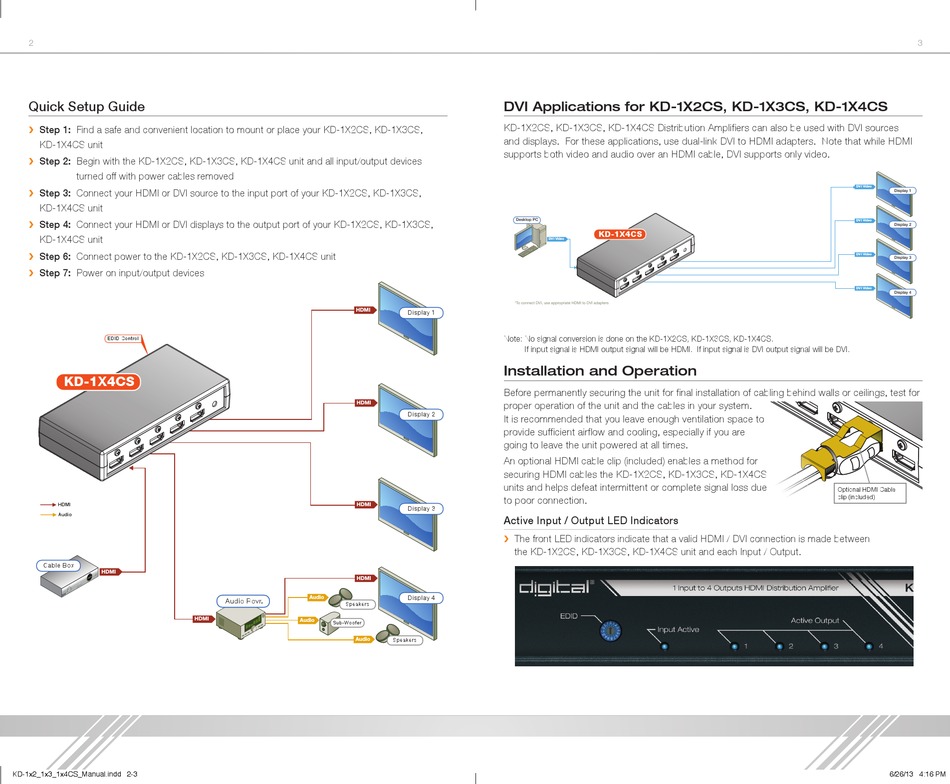

Quick Setup Guide

Step 1: Find a safe and convenient location to mount or place your KD-1X2CS, KD-1X3CS,
›
KD-1X4CS unit
Step 2: Begin with the KD-1X2CS, KD-1X3CS, KD-1X4CS unit and all input/output devices
›
HDMI
turned off with power cables removed
Audio
Step 3: Connect your HDMI or DVI source to the input port of your KD-1X2CS, KD-1X3CS,
›
KD-1X4CS unit
Step 4: Connect your HDMI or DVI displays to the output port of your KD-1X2CS, KD-1X3CS,
›
KD-1X4CS unit
Step 6: Connect power to the KD-1X2CS, KD-1X3CS, KD-1X4CS unit
›
Step 7: Power on input/output devices
›
EDID Control
KD-1X4CS
HDMI
Audio
Cable Box
HDMI
HDMI
Audio
Audio Rcvr.
HDMI
Audio
HDMI
HDMI
HDMI
HDMI
Audio
Audio Rcvr.
Speakers
Audio
Sub-Woofer
Audio
Speakers
HDMI
Display 2

DVI Applications for KD-1X2CS, KD-1X3CS, KD-1X4CS

HDMI
Display 3
KD-1X2CS, KD-1X3CS, KD-1X4CS Distribution Amplifiers can also be used with DVI sources
and displays. For these applications, use dual-link DVI to HDMI adapters. Note that while HDMI
HDMI
supports both video and audio over an HDMI cable, DVI supports only video.
Display 4
Speakers
Sub-Woofer
Audio
Speakers
Desktop PC
DVI Video
*To connect DVI, use appropriate HDMI to DVI adapters
Display 1
Note: No signal conversion is done on the KD-1X2CS, KD-1X3CS, KD-1X4CS.
If input signal is HDMI output signal will be HDMI. If input signal is DVI output signal will be DVI.

Installation and Operation

Before permanently securing the unit for final installation of cabling behind walls or ceilings, test for
proper operation of the unit and the cables in your system.
Display 2
It is recommended that you leave enough ventilation space to
provide sufficient airflow and cooling, especially if you are
going to leave the unit powered at all times.
An optional HDMI cable clip (included) enables a method for
securing HDMI cables the KD-1X2CS, KD-1X3CS, KD-1X4CS
units and helps defeat intermittent or complete signal loss due
to poor connection.
Display 3
Active Input / Output LED Indicators
The front LED indicators indicate that a valid HDMI / DVI connection is made between
›
the KD-1X2CS, KD-1X3CS, KD-1X4CS unit and each Input / Output.
Display 4
DVI Video
Display 1
HDMI
Audio
Cable Box
HDMI
Audio
Audio Rcvr.
HDMI
Audio
Sub-Woofer
KD-1X4CS
3
HDMI
Display 3
HDMI
Display 4
Speakers
Audio Speakers
DVI Video
Display 1
DVI Video
Display 2
DVI Video
Display 3
DVI Video
Display 4
Optional HDMI Cable
clip (included)
