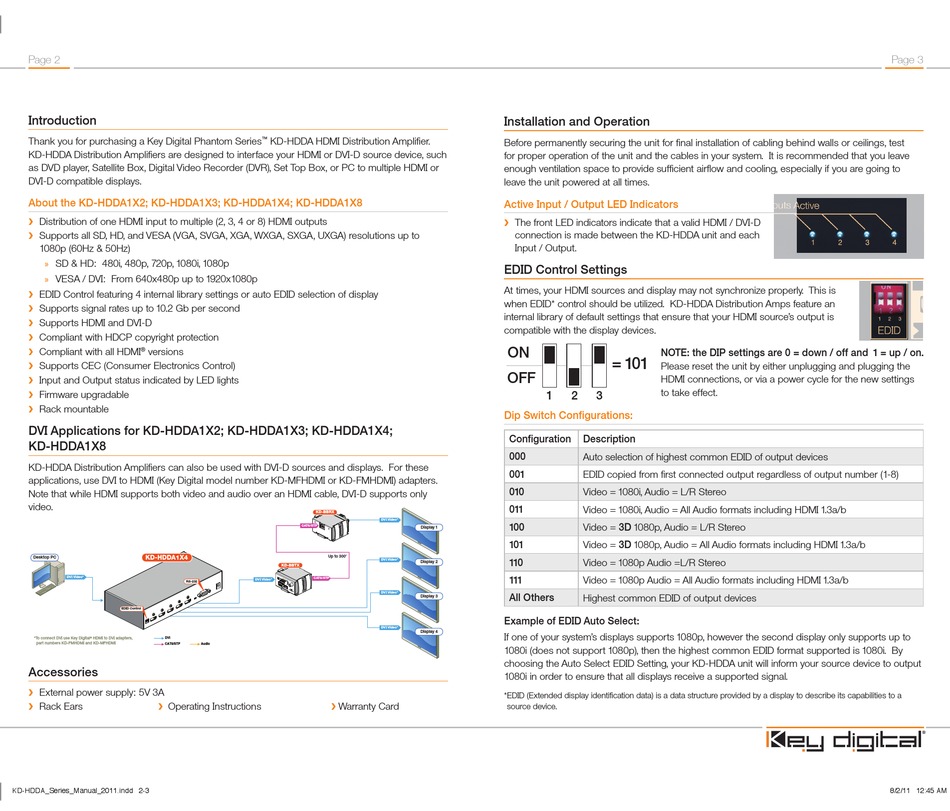

Introduction
Thank you for purchasing a Key Digital Phantom Series
KD-HDDA Distribution Amplifiers are designed to interface your HDMI or DVI-D source device, such
as DVD player, Satellite Box, Digital Video Recorder (DVR), Set Top Box, or PC to multiple HDMI or
DVI-D compatible displays.
About the KD-HDDA1X2; KD-HDDA1X3; KD-HDDA1X4; KD-HDDA1X8
Distribution of one HDMI input to multiple (2, 3, 4 or 8) HDMI outputs
½
Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) resolutions up to
½
1080p (60Hz & 50Hz)
SD & HD: 480i, 480p, 720p, 1080i, 1080p
»
VESA / DVI: From 640x480p up to 1920x1080p
»
EDID Control featuring 4 internal library settings or auto EDID selection of display
½
Supports signal rates up to 10.2 Gb per second
½
Supports HDMI and DVI-D
½
Compliant with HDCP copyright protection
½
Cable Box
HDMI/DVI
*
Compliant with all HDMI ® versions
½
KD-HDDA1X4
Supports CEC (Consumer Electronics Control)
½
Input and Output status indicated by LED lights
½
RS-232
Firmware upgradable
½
Rack mountable
½
EDID Control
DVI Applications for KD-HDDA1X2; KD-HDDA1X3; KD-HDDA1X4;
KD-HDDA1X8
HDMI/DVI
CAT6/STP Audio
KD-HDDA Distribution Amplifiers can also be used with DVI-D sources and displays. For these
applications, use DVI to HDMI (Key Digital model number KD-MFHDMI or KD-FMHDMI) adapters.
*To connect DVI, use HDMI to DVI adapters
Note that while HDMI supports both video and audio over an HDMI cable, DVI-D supports only
video.
KD-HDDA1X4
Desktop PC
DVI Video*
RS-232
EDID Control
*To connect DVI use Key Digital HDMI to DVI adapters,
® DVI
part numbers KD-FMHDMI and KD-MFHDMI
CAT6/STP Audio
Accessories
External power supply: 5V 3A
½
Rack Ears Operating Instructions
½ ½
KD-HDDA1X4
RS-232
KD-HDDA HDMI Distribution Amplifier.
™
KD-BBRX
HDMI/DVI
*
CAT6/STP
Display 1
Up to 300'
HDMI/DVI *
KD-BBTX Display 2
CAT6/STP
HDMI/DVI *
HDMI/DVI *
Display 3
HDMI/DVI *
Audio Display 4
Audio Rcvr.
Speakers
HDMI/DVI *
Audio
Sub-Woofer
Audio
Speakers
KD-BBRX
DVI Video*
CAT6/STP
Up to 300'
DVI Video*
KD-BBTX
CAT6/STP
DVI Video*
DVI Video*
DVI Video*
KD-BBRX
HDMI/DVI
*
CAT6/STP
Display 1
Warranty Card
½
Up to 300'
KD-BBTX
CAT6/STP
HDMI/DVI *
HDMI/DVI *
Display 2

Installation and Operation

Before permanently securing the unit for final installation of cabling behind walls or ceilings, test
for proper operation of the unit and the cables in your system. It is recommended that you leave
enough ventilation space to provide sufficient airflow and cooling, especially if you are going to
leave the unit powered at all times.
Active Input / Output LED Indicators
The front LED indicators indicate that a valid HDMI / DVI-D
½
connection is made between the KD-HDDA unit and each
Input / Output.

EDID Control Settings

At times, your HDMI sources and display may not synchronize properly. This is
when EDID* control should be utilized. KD-HDDA Distribution Amps feature an
internal library of default settings that ensure that your HDMI source's output is
compatible with the display devices.
ON
OFF
1 2 3
Dip Switch Configurations:
Configuration Description
000 Auto selection of highest common EDID of output devices
001 EDID copied from first connected output regardless of output number (1-8)
010 Video = 1080i, Audio = L/R Stereo
011 Video = 1080i, Audio = All Audio formats including HDMI 1.3a/b
100 Video = 3D 1080p, Audio = L/R Stereo
Display 1
101 Video = 3D 1080p, Audio = All Audio formats including HDMI 1.3a/b
110 Video = 1080p Audio =L/R Stereo
Display 2
111 Video = 1080p Audio = All Audio formats including HDMI 1.3a/b
All Others Highest common EDID of output devices
Display 3
Example of EDID Auto Select:
Display 4
If one of your system's displays supports 1080p, however the second display only supports up to
1080i (does not support 1080p), then the highest common EDID format supported is 1080i. By
choosing the Auto Select EDID Setting, your KD-HDDA unit will inform your source device to output
1080i in order to ensure that all displays receive a supported signal.
* EDID (Extended display identification data) is a data structure provided by a display to describe its capabilities to a
source device.
NOTE: the DIP settings are 0 = down / off and 1 = up / on.
= 101
Please reset the unit by either unplugging and plugging the
HDMI connections, or via a power cycle for the new settings
to take effect.
