Quick Setup Guide - Key Digital KD-HDDA1x2Pro Phantom Operating Instructions Manual

2
KD-HDDA1x4Pro
Video*

Quick Setup Guide

Step 1: Find a safe and convenient location to mount or place your KD-HDDA Pro unit
›
EDID Control
Step 2: Begin with the KD-HDDA Pro unit and all input/output devices turned off with
›
power cables removed
Step 3: Connect your HDMI or DVI-D source device to the input port of your KD-HDDA Pro unit
›
Step 4: Connect your HDMI or DVI-D displays to the output port of your KD-HDDA Pro unit
›
Step 5: Be sure the Operation Mode Switch is set to the "Normal" position
›
Step 6: Connect power to the KD-HDDA Pro unit
›
Step 7: Power on input/output devices
›

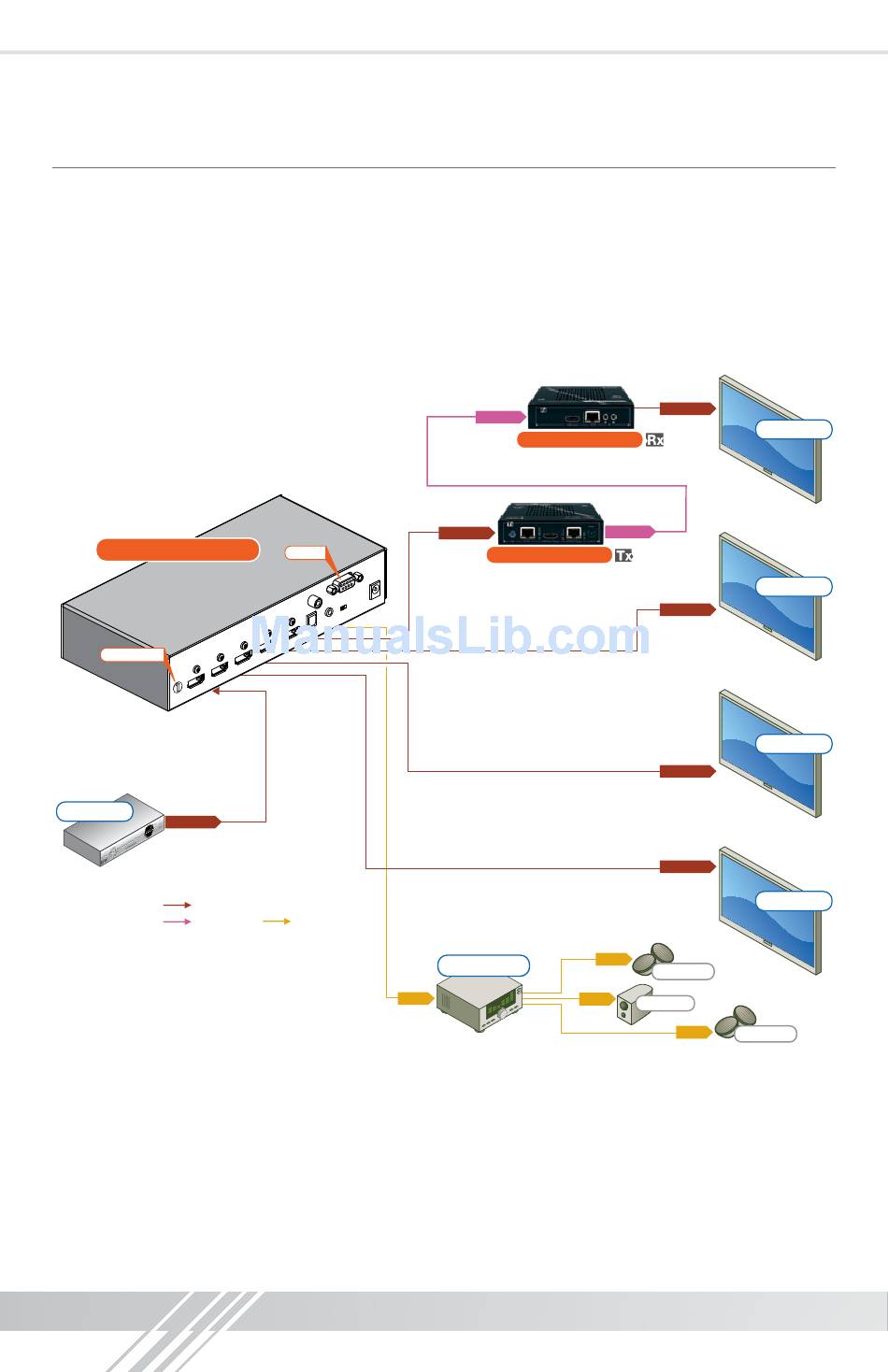

KD-HDDA1x4Pro
EDID Control
Cable Box
Note: No signal conversion is done on the KD-HDDA1x2Pro; KD-HDDA1x3Pro; KD-HDDA1x4Pro.
If input signal is HDMI output signal will be HDMI. If input signal is DVI output signal will be DVI.
RS-232
DVI
CAT6/STP
Up to 600'
with Key Digital
KD-CAT6STP1X
RS-232
HDMI/DVI *
HDMI/DVI*
Audio
CAT6/STP
KD-CAT6STP1X
DVI Video*
KD-CATHD500FW
Audio
CAT6/STP
KD-CATHD500FW
®
HDMI/DVI
*
KD-CATHD500FW
Audio Rcvr.
Audio
CAT6/STP
HDMI/DVI
*
CAT6/STP
HDMI/DVI *
HDMI/DVI *
HDMI/DVI
*
Audio
Speakers
Audio
Sub-Woofer
Audio
Speakers
DVI Video
DVI Video
DVI Video
Display 1
Display 2
Display 3
Display 4
