- Page 1 Default static IP address: 192.168.1.239, port 23 KD-DA2x4G KD-DA2x8G 2x4/2x8 4K/18G POH/HDBT/HDMI Distribution Amplifier/Switcher with Audio De-Embedding (Includes KIT 4/8 Rx 100 Meters Extenders) Operating Instructions KD-DA2x4G KD-DA2x8G...
-
Page 2: Table Of Contents
Always follow the instructions provided in this Operating Manual. Note: Please visit www .keydigital .com for the latest product documentation and software downloads . › Product features and specifications are subject to change without notice . © 2019 Key Digital, Inc . All rights reserved . -
Page 3: About Kd-Da2X4G/Kd-Da2X8G
UHD/4K up to 250 ft . (76m) using CAT5e/CAT6/CAT6A/CAT7 . 1080p resolutions may be extended up to 328 ft . (100m) . KD-DA2x4G/KD-DA2x8G is easily integrated into professional AV systems with the audio from the selected source being de-embedded on analog and digital audio connectors, and switching controllable via TCP/IP, RS-232 or IR . -
Page 4: Quick Setup Guide
5 . Connect control system and/or PC to TCP/IP, RS-232, or place IR emitter over IR sensor . 6 . Screw-in the two power supplies to the KD-DA2x4G/KD-DA2x8G’s unit, and then connect power to outlets . Both power connections are needed . -
Page 5: Application Example
914.667.9700 ext 3 521 East 3rd Street Mount Vernon NY 10553 • • Supports iOS & Android www.keydigital.com/compass phone: 914.667.9700 • fax: 914.668.8666 HDMI KD-DA2x8G Cable / Satellite IR Emitter HDMI Concourse 1 KD-XDALRx IR/RS232 HDMI Operation Center Concourse 2 KD-XDALRx KD-XDALRx... -
Page 6: Connections, Buttons And Leds

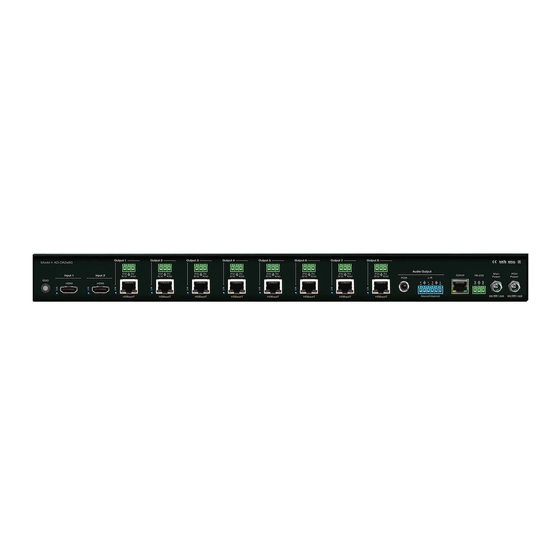

Connections, Buttons and LEDs HDMI Inputs and HDBaseT Outputs EDID Control IR/RS232 Control Pass-thru TCP/IP RS-232 Audio HDMI Inputs POH/HDBT Outputs Outputs Power Power HDMI Inputs: › The HDMI Inputs are located on the bottom left side of the back panel . »... - Page 7 Audio Outputs Pin: 1 2 3 4 5 6 Analog: One Analog L/R Balanced/Unbalanced 6-Pin Terminal Block which provides de-embedded 2ch › Balanced Analog Audio Output from the HDMI input source The Pin assignment for the audio is as follows: ›...
- Page 8 TCP/IP and RS-232 commands may be found in the TCP/IP and RS-232 Commands section › Connect an Ethernet cable from the KD-DA2x4G/KD-DA2x8G to a network router or connect a straight › through cable directly from a PC Unit configuration, control, and firmware updates are most commonly achieved with ›...
- Page 9 Illuminated solid with active HDBaseT link and hot plug detection received from connected display » Blinks once per second when the output has been turned off in the KD-DA2x4G/KD-DA2x8G unit » All LEDs ramp from left to right during unit boot up process.
-
Page 10: Edid Handshaking Control
EDID Handshaking Control EDID authentication is provided from Position EDID Handshake Description EDID Rotary the KD-DA2x4G/KD-DA2x8G unit to Copy EDID from HDMI Output the connected input/source device . 1080i, 2CH AUDIO The EDID file (AKA “handshake”) › 1080i, DOLBY/DTS 5 .1... -
Page 11: Ir Remote Control
Basic switching and troubleshooting may be achieved with the factory remote control . Not all of the remote buttons are used . Other advanced settings may be configured using TCP/IP or RS-232 and via Key Digital Management Software Pro (KDMS Pro) downloaded ™... - Page 12 Signal Dashed/ IR Signal Marked Solid/ Ground Black RS-232 RS-232 cables are available through Key Digital and other wire suppliers, and can also be fabricated by › skilled technicians . Model Wire DB9 Pin Signal KD-3.5FDB96 3 .5mm Stereo to Female DB9...
-
Page 13: Rs-232 And Tcp/Ip Commands
RS-232 and TCP/IP Commands KD-DA2x4G/KD-DA2x8G allows control over serial interface for advanced control and bi-directional communication . RS-232 Pinout: Pin 1 = RS-232 Tx Data » Pin 2 = RS-232 Ground » Ping 3 = RS-232Rx Data » Default IP address is 192.168.1.239, with ›... - Page 14 -- SPCDF00 : Reset to Factory Default without Network Reset ------------------------------------------------------------------------- KD-DA2x4G Status command (STA). Returns current state and settings of the unit: ------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- -- KD-DA2x4 System Address = 00 F/W Version : 1.07 -- Power : ON...
- Page 15 KD-DA2x8G Help Command (H). Returns entire API in readable format: -------------------------------------------------------------------------- Key Digital Systems HELP ------------------------------------------------------------------------- -- KD-DA2x8 System Address = 00 F/W Version : 1.11 -- Azz : All Commands may have Prefix System Address zz=[01-99] -- -- H...
- Page 16 KD-DA2x8G Status command (STA). Returns current state and settings of the unit: -------------------------------------------------------------------------- Key Digital Systems STATUS ------------------------------------------------------------------------- -- KD-DA2x8 System Address = 00 F/W Version : 1.11 -- Power : ON -- Forced HPD : ON -- Front Panel Button : Enabled...
-
Page 17: Specifications
Specifications Technical: Inputs (2): 1 HDMI Connector, Type A, 19 Pin Female › Outputs (4/8): 1 HDBaseT, Valens VS100 Class A, RJ45 Female › Output (1): RCA female for digital audio following SPDIF format (IEC 60958) . Supports sampling rate up to ›... -
Page 18: Important Product Warnings & Safety Instructions
Damage to the power supply or power plug » Exposure to rain or moisture » Power Supply Use: You MUST use the Power Supply provided with your unit or you VOID the Key Digital Warranty and risk ® damage to your unit and associated equipment. -
Page 19: How To Contact Key Digital
Warranty Information All Key Digital products are built to high manufacturing standards and should provide years of trouble-free ® operation . They are backed by a Key Digital Limited 3 Year Product Warranty Policy . http://www .keydigital .com/warranty .htm ›... - Page 20 ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high-end video and control are important . Key Digital ® is at the forefront of the video industry for Home Theater Retailers, Custom Installers, System Integrators, Broadcasters, Manufacturers, and Consumers .
