Summary of Contents for Gefen EXT-USB-MINI2

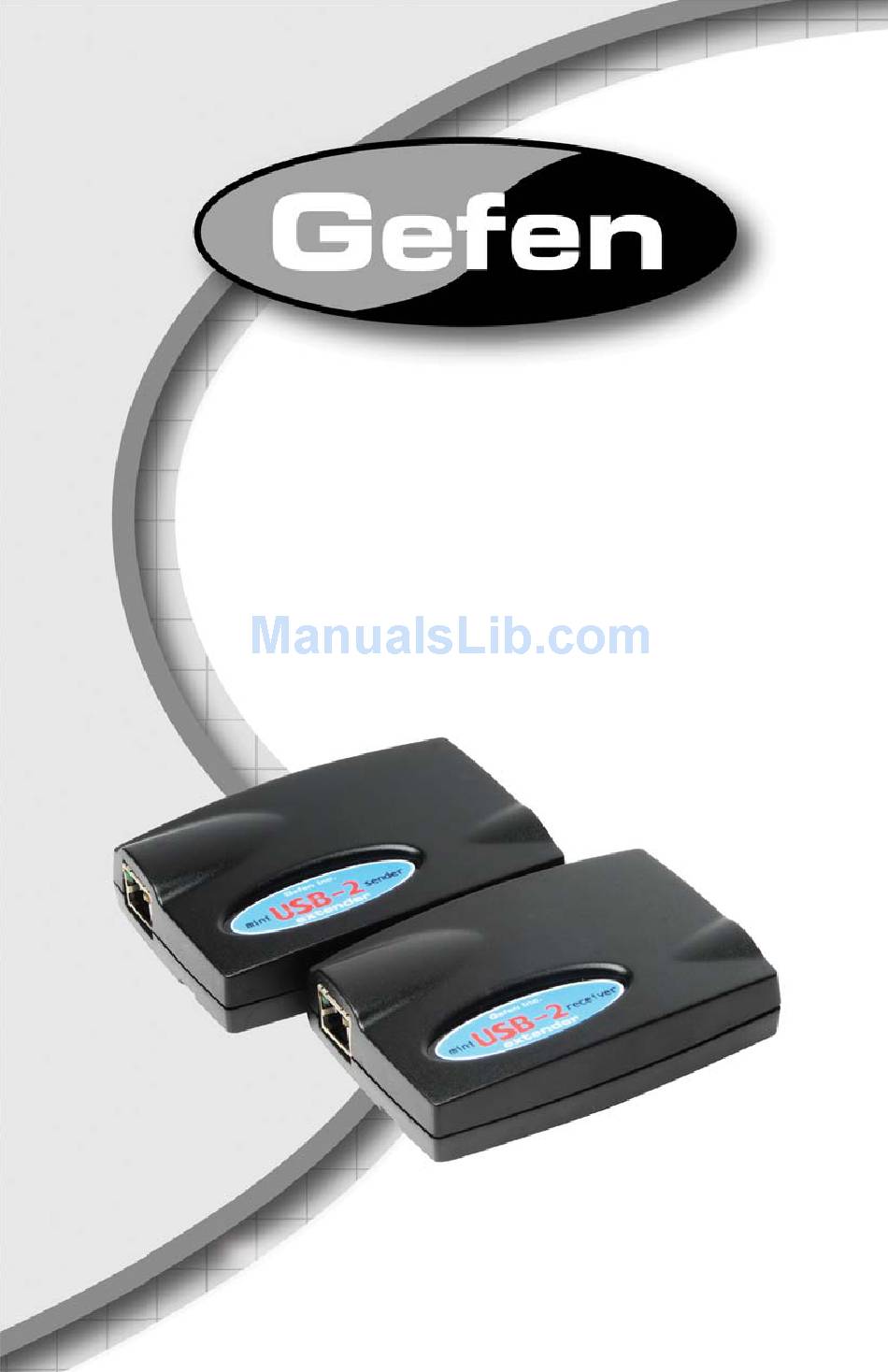

- Page 1 ® Mini USB-2 Extender EXT-USB-MINI2 USER’S MANUAL www.gefen.com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Mini USB-2 Extender is a trademark of Gefen LLC © 2010 Gefen LLC, All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The Mini USB-2 Extender Network Cable Wiring Diagram 10 Troubleshooting 12 Specifi cations 13 Warranty... -
Page 4: Introduction
Congratulations on your purchase of the Mini USB-2 Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE MINI USB-2 EXTENDER • The Mini USB-2 Extender sender and receiver were designed to operate on USB type computers. DO NOT attempt to use this equip ment with any other type of device. -
Page 6: Features
FEATURES Features • Extends any USB 1.1 device up to 150 feet (45 meters) using CAT-5 cable • Requires no external power adapter • Contains internal USB hub • Provides support for any full-speed 12 Mb/s or low-speed 1.5Mb/s USB device •... -
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel... -
Page 8: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS USB Type B Input This connector will accept a USB Type B cable to connect to a USB host device (i.e. Computer). RJ-45 Link Connector This connector will accept a CAT-5 UTP cable to link the sender and receiver units together. -
Page 9: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 10: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS USB Type A Input This connector will accept a USB Type A cable to connect to a USB peripheral device (i.e. Keyboard & Mouse). Two USB peripherals can be connected at the same time. RJ-45 Link Connector This connector will accept a CAT-5 UTP cable to link the sender and receiver units together. -
Page 11: Connecting And Operating The Mini Usb-2 Extender
CONNECTING AND OPERATING THE MINI USB-2 EXTENDER How to Connect the Mini USB-2 Extender Connect the USB host device to the USB Type B port on the Mini USB-2 Extender Sender unit using a user supplied USB Type A-B cable. Connect the sender and receiver units together using a CAT-5 UTP cable. -
Page 12: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 13: Troubleshooting
Sender unit to the computer. 6. If the second device does not operate, the extender may be malfunctioning. Con- tact Gefen technical support for assistance. 7. If the second device does operate prop- erly, the fi rst device may not be compatible with the extender. - Page 14 Connect the Sender unit to the computer. 5. If the second device does not operate, the extender may be malfunctioning. Contact Gefen technical support for assistance. 6. If the second device does operate properly, the fi rst device may not be compatible with the extender.
-
Page 15: Specifi Cations
SPECIFICATIONS USB device support ......Full-Speed 12 Mbs / Low-Speed 1.5 Mbs USB Input Connectors ................Type B USB Output Connectors ................Type A Link Connector ................RJ-45 Shielded Dimensions ............... 3.8” W x 1.2” H x 2.7” D Shipping Weight .................... 1 lbs. - Page 17 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
