Summary of Contents for Gefen EXT-USB-MINI2N

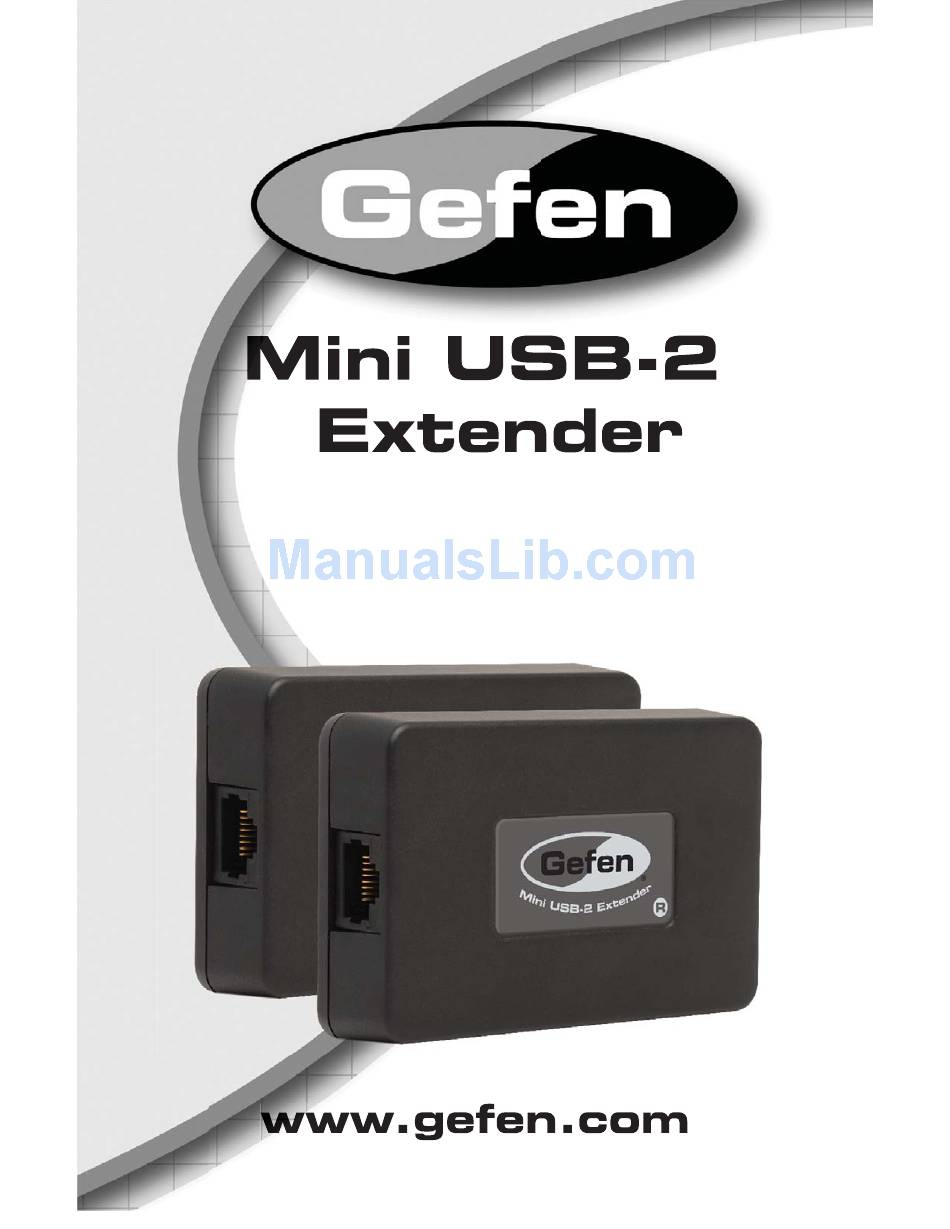

- Page 1 ® EXT-USB-MINI2N USER MANUAL...
- Page 3 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. Mini USB-2 Extender is a trademark of Gefen LLC © 2012 Gefen, LLC. All rights reserved.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The Mini USB-2 Extender Network Cable Wiring Diagram 10 Specifi cations 11 Warranty... -
Page 5: Introduction
The Gefen Mini USB-2 Extender The Gefen Mini USB-2 Extender allows the extension of any USB 1.1 device up to 150 feet (45 meters). The Receiver comes with a 2-port USB HUB. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE MINI USB-2 EXTENDER • CAT-5e or CAT-6a cables should not exceed 150 feet (45 meters). • Shielded (STP) CAT-5e or CAT-6a is recommended. However, un-shielded (UTP) CAT-5e or CAT-6a is acceptable. The shielded cable has an advantage by providing NOTE: immunity to Electromagnetic Interference (EMI), cell... -
Page 7: Features
FEATURES Features • Extends any USB 1.1 device up to 150 feet (45 meters) using CAT-5 cable • Provides support for any full-speed 12 Mb/s or low-speed 1.5Mb/s USB device • Provides two USB outputs • Supports Windows XP, Windows Vista, Windows 7, Linux, and Mac OSX operating systems •... - Page 8 SENDER UNIT LAYOUT Front Back...
-
Page 9: Sender Unit Descriptions
SENDER UNIT DESCRIPTIONS USB Input Connect the USB source to this port using the supplied USB cable CAT-5 Connects the Sender to the Receiver unit using a CAT-5e cable... - Page 10 RECEIVER UNIT LAYOUT Front Back...
-
Page 11: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS USB Output Connects a USB device (i.e mouse, keyboard, hub) USB Output Connects a USB device (i.e mouse, keyboard, hub) CAT-5 Connects the Sender to the Receiver unit using a CAT-5e cable... -
Page 12: Connecting And Operating The Mini Usb-2 Extender
Up to two USB devices can be connected to the USB outputs on the Receiver unit. CAT5 CABLE USB CABLE USB Peripheral Computer Receiver Sender USB Peripheral EXT-USB-MINI2N IMPORTANT: This product cannot be disposed of in the general trash. Please contact your solid waste local authority. -
Page 13: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 14: Specifi Cations
SPECIFICATIONS USB Connector (Sender)...........(1) USB Type B, female USB Connector (Receiver..........(2) USB Type A, female Link Connectors (Sender/Receiver)............(1) RJ-45 USB Current Output..........Up to 400mA per USB device (as long as the host can provide 800mA or more) Operating Temperature..........+32 to +122 °F (0 to +50 °C) Dimensions (W x H x D) (Sender/Receiver)........3.5”... -
Page 15: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 18 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed or CE supplied power supplies.
