USB•500
E X T - U S B - 5 0 0
U S E R ' S
M A N U A L
www.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-USB-500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen EXT-USB-500

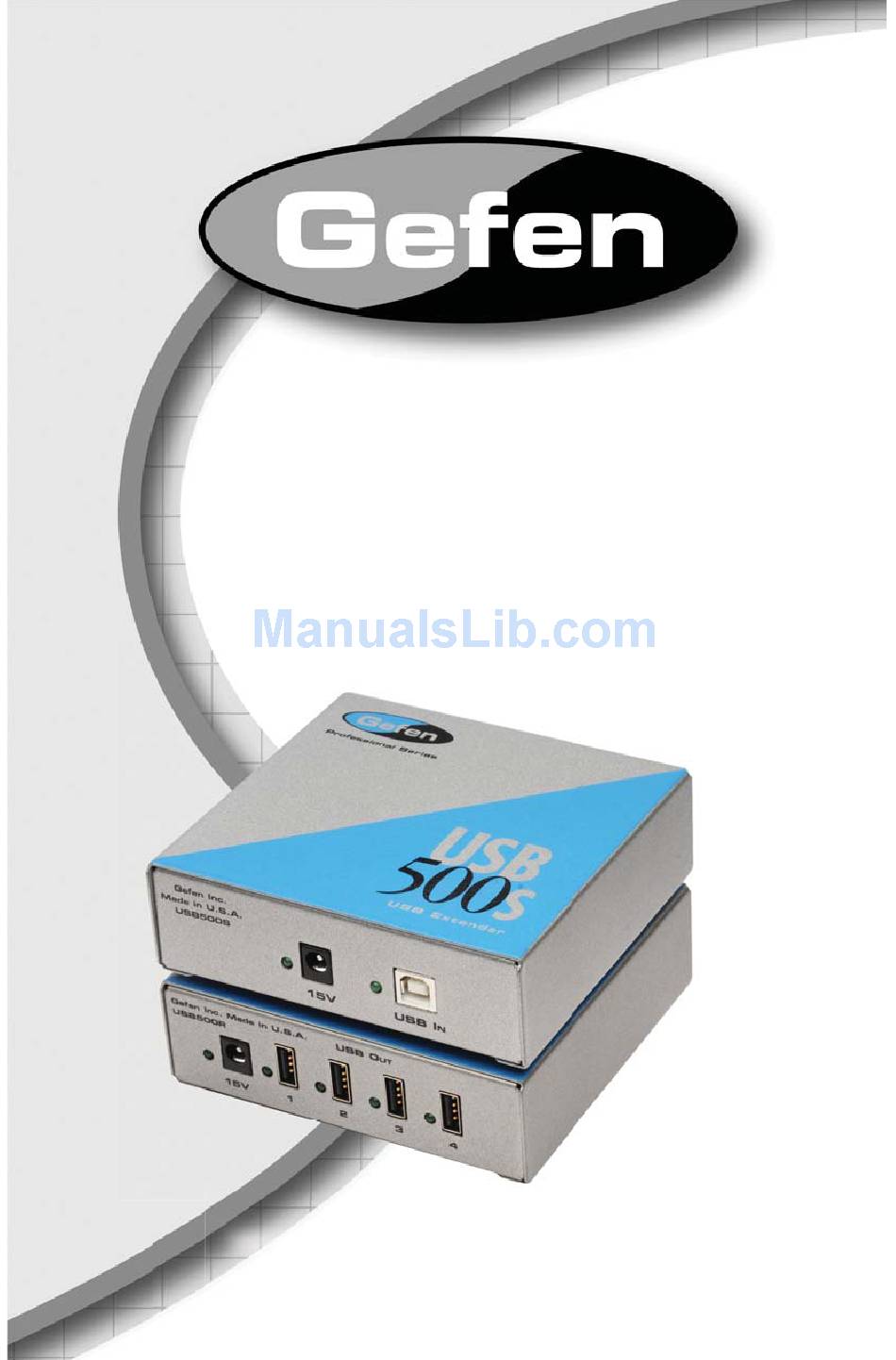

  • Page 1 ® USB•500 E X T - U S B - 5 0 0 U S E R ' S M A N U A L www.gefen.com...
  • Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. © 2010 Gefen, LLC, All Rights Reserved. All trademarks are the property of their respective owners.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS General Information Introduction .................. 1 Operation Notes ................2 USB Series Installation ............... 3 USB•500 Panel Layout ............... 4 USB•500 Function Description ............ 5 Wiring Diagram ................6 Check List ................... 7 Troubleshooting Hints ..............8 Warranty ..................9...
  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing the ex•tend•it USB•500 Series. Incorporating ExtremeUSB technology, the new USB•500 model allows users the benefi ts of USB technology beyond the desktop, extending your computer keyboard, mouse, trackball, and any USB device up to 1650 feet away from the location of your Macintosh or PC computer.
  • Page 5: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE USB•500 SYSTEM. * The USB•500 units were designed to operate on USB type computers. DO NOT attempt to use this equip ment with any other type computers. * Use the computer's USB port when using a local keyboard that is not extended with the USB•500 sender unit.
  • Page 6: Usb Series Installation

    USB•500 SERIES INSTALLATION USB•500R (Receiver Unit) 1. Place the USB•500R unit close to the USB device to be served. 2. Connect the USB devices to the USB•500R unit. 3. Connect the power adapter to a suitable AC source wall outlet. 4.
  • Page 7: Usb•500 Panel Layout

    USB•500 PANELS LAYOUT USB•500 Sender USB•500 Sender USB•500 Receiver USB•500 Receiver 11 12 11 12 11 12 11 12...
  • Page 8: Usb•500 Function Description

    USB•500 FUNCTION DESCRIPTION Link LED (Sender) Indicates a correctly functioning fi ber optic link between the USB•500S send and the USB•500R Receive units. Fiber Link Connector (Sender) MTRJ Modular Jack for the fi ber optic cable which connects the USB•500 Send and Receive units.
  • Page 9: Wiring Diagram

    WIRING DIAGRAM...
  • Page 10: Check List

    CHECK LIST 1. On the USB•500S send unit, check that the power in di ca tor is GREEN. 2. On the USB•500S send unit, check that the link indicator is GREEN. 3. On the USB•500R receiver unit, check that the power in di ca tor is GREEN. 4.
  • Page 11: Troubleshooting Hints

    TROUBLESHOOTING HINTS Power Indicator is not lit. • Make certain the power supply unit is properly con nect ed to the USB•500R unit and the computers USB port is active and securely connected to the USB•500S Link Indicators are Green. •...
  • Page 13 Rev X2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
