DVI Audio to HDMI Adapter
Accessories

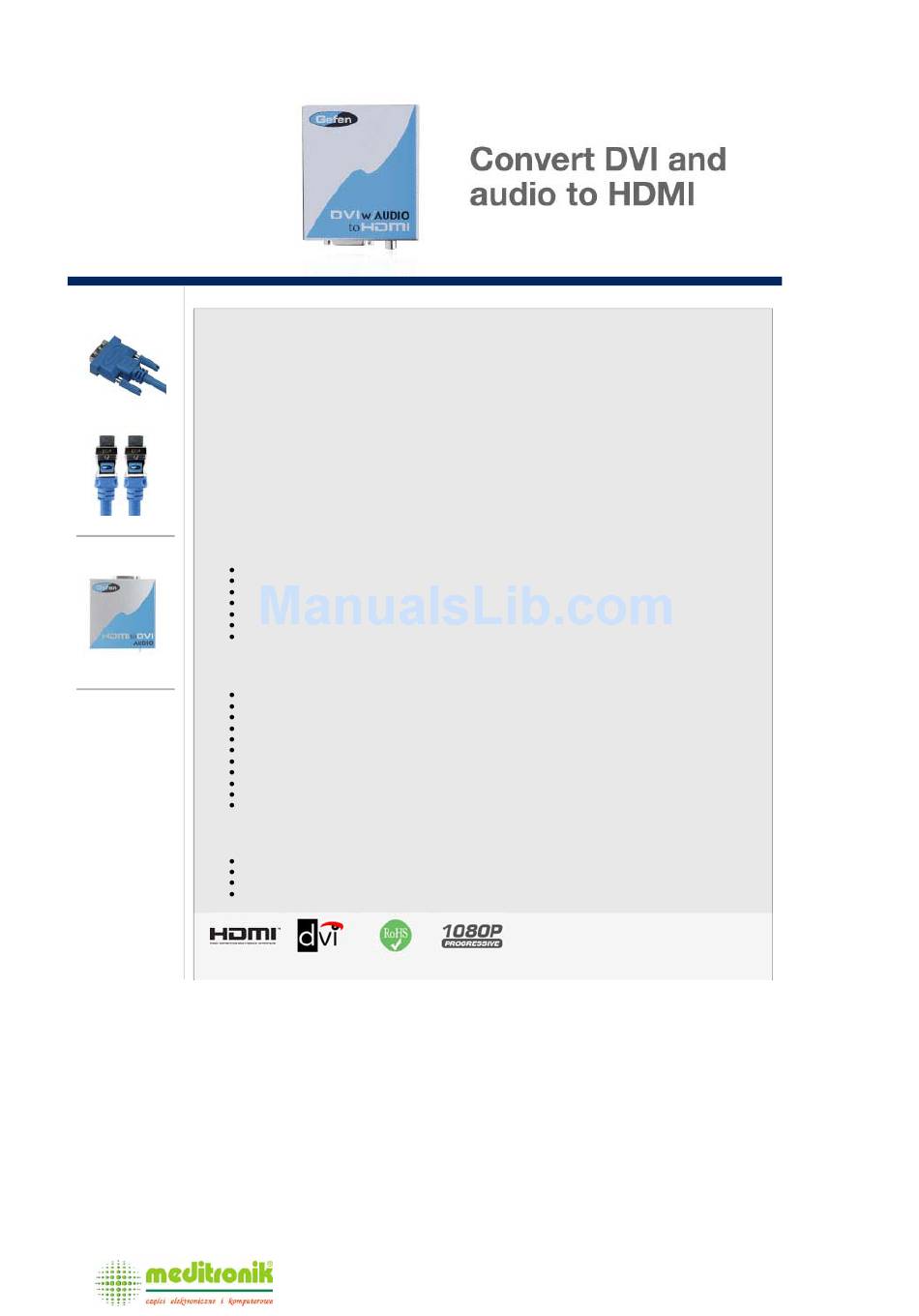

Convert DVI Video and Audio to HDMI
The DVI Audio to HDMI™ Adapter is a unique device that combines digital video (DVI) and digital
audio into HDMI™ to seemlessly integrate into the modern home theater. This adapter connects
DVI home theater devices or DVI video graphic cards to HDMI compliant digital monitors. This
adapter also takes digital audio and encodes it onto the HDMI signal for the full HDMI video and
audio effect. With the DVI Audio to HDMI Adapter home theater devices and computer systems can
be easily connected any HDMI display for the full digital video and audio experience.
DVI Cables
How It Works
Simply connect the supplied DVI cable to the input side of the DVI Audio to HDMI™ Adapter. Then
connect the SPDIF digital audio cable to the audio input of the DVI Audio to HDMI Adapter. Then
connect the HDMI display or projector to the HDMI output of the DVI Audio to HDMI Adapter. The
adapter encodes the digital audio onto the digital video signal to generate the HDMI signal.
HDMI Cables
Features:
Related Products
Allows you to connect computers with DVI output and SPDIF to an HDMI™ display
Encodes digital audio onto the video signal for HDMI™ video and audio
Supports computer resolutions up to 1920x1200 at 60Hz
Supports HDTV resolutions
Supports resolutions up to 1080p, 2K, and 1920 x 1200
HDMI™ compliant
HDCP pass-through
HDMI to DVI Audio
Specifications:
Adapter
Video Amplifier Bandwidth: 165 MHz
Pixel clock frequency: 24Mhz - 165 Mhz
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
HDMI Connector: type A (19 pin) female
DVI Connector: DVI-I (29 pin) female (digital only)
Audio Connector: SPDIF
Power Consumption: 10 watts (max)
Power Supply: 5V DC
Dimensions: 5"W x 1"H x 4"D
Shipping Weight: 2 lbs.
Package Includes:
DVI Audio to HDMI Adapter
One 5V Power Supply
One 6 ft DVI Cable
Users Manual
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-DVIAUD-2-HDMI
