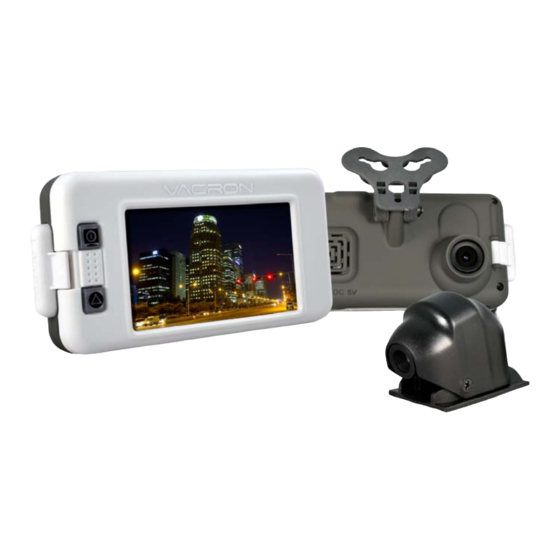

- Page 1 1 CH Vehicle Video Recorder External Camera (optional) User Manual TYPE A : Built-in GPS 2012 DEC V1.0 TYPE B : W/O GPS (Optional for G-Mouse)
-
Page 2: Table Of Contents
Vehicle Video Recorder User Manual Index A. Features .................... 1 B. Specification ..................2 C. Accessories ..................2 D. Installation Guide ................3 E. External Camera ................5 F. Product Appearance ............... 6 G. Format Memory Card ................ 7 H. Record / Stop-Record ................ 9 Remote Controller Function .............. -
Page 3: Features
Vehicle Video Recorder User Manual A. Features Built-in 720P CMOS Sensor. Viewing angle approx. 100 degrees. Suitable for all types of vehicles use. Small Design, Easy Installation。 Optional position for camera setting to record situations of inside, outside, front or rear the car. -
Page 4: Specification
Vehicle Video Recorder User Manual B. Specification CH1: Forward facing lens 720p CMOS Sensor Sensor Device CH2: should equip with Phone Jack -4P 3.5mm connect Camera.(optional) CH1 Outside vehicle approx : 100 degree View Angle CH 2 is optional accordingly to the camera spec. -
Page 5: Installation Guide
Vehicle Video Recorder User Manual D. Installation Guide 1. 1. To install the device on the windshield by “Suction Cups” or “Stick-Holder” Type Sticker Adhesive Spot Suction Cups Type Stick-Holder Type 2. The best position to install 3. To adjust the recording angle... - Page 6 Vehicle Video Recorder User Manual 6. VVR installation NOTE: GPS positioning speed will be affected by weather, window films, etc. Windows film may contain metal substances and have impact on GPS positioning. Indicator Lighting Mode- Day and Night mode/Auto Detection.
-
Page 7: External Camera
To stall External Camera with 4P Phone Jack Connect (1 Vp- p Composite Video Output) in front or rear of the car. Note: To avoid camera damage, please power off the vehicle video recorder before plug the camera in. Definition of 4P Phone Jack connect... -
Page 8: Product Appearance
Vehicle Video Recorder User Manual F. Product Appearance Monitor On/Off G-Mouse Plug CH1 720P Lens Force recording Screen DC5V Power input USB cover Reserved for USB PC Link SD card Slot External camera plug Unit: mm... -
Page 9: Format Memory Card
(a) When should you「format」the SD card? When you purchase a new SD card, you have to format it for vehicle video recorder to record properly. (b) When should you「restore」the SD card? When you have backup the record files into PC and want to use the SD card for other purposes, you can restore the SD Card to normal format, so it can be used correctly. - Page 10 Vehicle Video Recorder User Manual NOTE: 1. Before restoring SD card, please ensure to unlock it first. If the SD card is unlocked but still cannot be formatted, this might be caused by Window Vista / 7 security restrictions. Please run the program as Administrator to prevent from this problem.
-
Page 11: Record / Stop-Record
Vehicle Video Recorder User Manual H. Record / Stop-Record 1. Power on / Record The device can be started completely after power on for one minute. The device starts recording now. 2. Power off / Stop record Power off and enter playback page to stop recording. -
Page 12: Live Display
Vehicle Video Recorder User Manual J. Live Display ◆ Introduction of OSD Interface: (Video output from connecting TV-OUT line to the device) Event Mode Camera 1 Audio recording on Camera 2 Speaker Energy saving Live Video 2 Video 1 GPS Information 1. - Page 13 Vehicle Video Recorder User Manual 3. Press on the remote controller to switch between CH1 full screen, CH2 full screen and 2-split screen display. (see below) CH1 full screen CH2 full screen 2-split screen image 4. Press on the remote controller in LIVE mode to show OSD operation setting.
- Page 14 Vehicle Video Recorder User Manual 6. A icon means that either the device is calculating coordinate or there is no satellite signal. A icon means GPS is ready. 7. Daylight/Night mode: indicates daylight mode; indicates night mode. 8. Volume: Press on the remote controller for volume control.
-
Page 15: Software Operating Instruction
Vehicle Video Recorder User Manual K. Software operating instruction 1. Playback Execute the player software (the software inside the CD), the screen will be showed as below. Click “Open the document” ，and choose the files from memory card or hard disc then click to do playback. - Page 16 Vehicle Video Recorder User Manual a. Play & Settings Icon Instruction Return to last file key Forward playback Playback key Pause key Stop key Play key Forward playback Rearward playback Backup the current playing file Configuration, Set machine-related settings Google Map...
- Page 17 Vehicle Video Recorder User Manual File Backup Save the recorded files to your PC. Click on the button it will pop up the screen as below. Step1: Select the origin for the Micro SD card Setp2: Select the recorded file which you want to backup Step3: Choose the backup file format (1)Micro SD Card Backup (*.sd)
- Page 18 Vehicle Video Recorder User Manual (2)AVI File Backup(*.avi) Chn01 is the forward facing lens record. The file name is *.avi. Chn02 is the backward facing lens record. The file name is *.avi. ★ Note: If backup by original format of Micro SD card,...
- Page 19 Vehicle Video Recorder User Manual Setting One side of card translator is plug into Micro SD card, the other one is plug into USB plot before recording. Record format and display of the device can be set by configuration of PC client. After setting completed, the Micro SD card can plug into the device and start recording again.
- Page 20 Vehicle Video Recorder User Manual This feature of the SD card encryption, to prevent others from accessing any data. Set a password to 15 characters Password limited: 123456789123456. After setting the password, it is required to enter password to access the playback file, setting, formatting memory card.
- Page 21 Vehicle Video Recorder User Manual The night sensitivity settings for Sensor front and interior lens: very low, Sensitivity low, normal, high, very high. at night According to night conditions set sensitivity. Audio On: recording voice Recording Off: stop voice recording.
- Page 22 Vehicle Video Recorder User Manual Snapshot While playing the recorded file, you can use this function to snapshot the picture and save it into your PC. Default saving path for snapshot picture will be in /Snapshot folder. File type: BMP Speed Meter &...
- Page 23 Vehicle Video Recorder User Manual d. G SENSOR When detecting extraordinary G-force, the machine will record the images and separate the recorded file from normal recording. G SENSOR X: The G-force from left & right of the car. Y: The G-force from front & back of the car.
-
Page 24: Appendix: The Indication Of Bright And Dark Spot Of Lcd
Vehicle Video Recorder User Manual L. Appendix: The Indication of Bright and Dark Spot of Q: What is Bright/Dark Spot? A : Bright Spot: At dark background, we found the abnormal bright spots, we called those spot are “Bright Spot”... - Page 25 For More Information Please check VACRON Website http://www.vacron.com Made in Taiwan...
