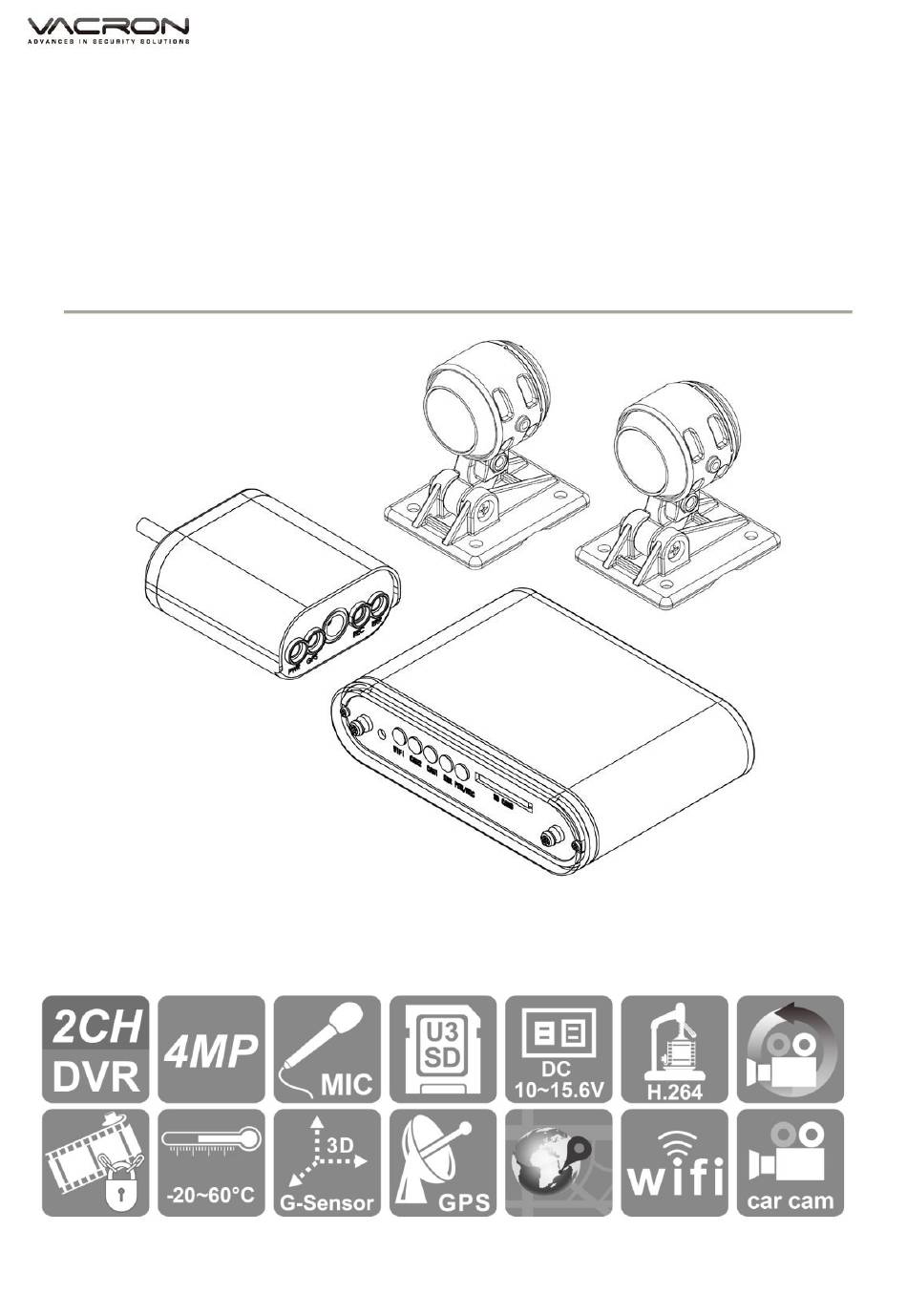

- Page 1 2CH Vehicle Video Recorder Operation Manual 2018 OCT V1.0...
-
Page 2: Table Of Contents
2-Channel Mobile Video Recorder User Manual Table of Contents Accessories ..............................1 Features: ................................. 2 Specifications ............................... 3 Product appearance ..........................5 Installation of SD card ..........................6 Cable Installation ............................8 Installation diagram ..........................10 Installation on motorcycle ......................... 10 DVR installation diagram ........................ - Page 3 Safety Precautions Dear Vacron user, Appreciate for you purchase Vacron products. Please contact your local distributor if you meet any question or need for any assistance. We will offer you complete and in time service via local distributor. However, we still have rights to upgrade software and hardware without any kind notice beforehand.
- Page 4 2-Channel Mobile Video Recorder User Manual Surrounding Please have the DVR under recommended temperature set it away from the sun and heating source. Please keep this equipment away from humid surrounding. Please keep this equipment away from smoke and dust ...
-
Page 5: Accessories
2-Channel Mobile Video Recorder User Manual A. Accessories Please check every accessory we list below, make sure everything include in the product package before use. If you found any thing missing, please contact local distributor. Note：The product set does not come with memory card, please purchase the memory card separately. -
Page 6: Features
2-Channel Mobile Video Recorder User Manual B. Features: Aluminum casing make it durable and waterproof. Small independent system, 2 channels video and 1 channel audio recording. H.264 compression format, 4MP video resolution. Low power consumption and efficient heat dissipation, no build-in Lithium battery to prevent possible danger and heat explosion. -
Page 7: Specifications
2-Channel Mobile Video Recorder User Manual C. Specifications CAR DVR Item Specification Video Input 2CH 4MP Resolution CH1 NTSC/PAL:30FPS/25FPS、 CH2 NTSC/PAL:30FPS/25FPS (a) DC12V input, power consumption is approx. 1A. (b) DC12V input, ACC OFF standby power consumption is Power approx.2.5mA. - Page 8 2-Channel Mobile Video Recorder User Manual GPS time zone auto calibration, and initialize with build- in calendar if no GPS signal. Please do GPS time calibration after installation, time Time Setting memory is kept with car battery, no battery power supply will result setting return to default, please do time calibration after connecting to power.
- Page 9 2-Channel Mobile Video Recorder User Manual Mode (a) Green light flashing: recording. (Higher flashing frequency for event recording). (b) Red light: install or set incorrect. Indicator (c) Blue light: WiFi connection. (d) Green light: CAM 1 on (e) Green light: CAM 2 on (a) Power and signal input: i.
-
Page 10: Product Appearance
2-Channel Mobile Video Recorder User Manual D. Product appearance Mobile DVR unit: SD card slot IR Receiver Power / Recording Lid screw Lid screw Error Indicator CAM1 CAM2 WiFi dongle light OBD (On Board Display) Microphone Error Power Recording... -
Page 11: Installation Of Sd Card
2-Channel Mobile Video Recorder User Manual E. Installation of SD card SD card slot Dustproof lid screw Dustproof lid screw (1). Counterclockwise to unscrew the screw of dustproof lid to install/takeoff the SD card. (2). Format/ restoration SD card refer to other chapter description. - Page 12 2-Channel Mobile Video Recorder User Manual Attention Memory card speed is recommended to be above U3, Otherwise it may causes the recording not completely. Before using the memory disk, please format the disk first by using the software player in the CD-ROM. If not, device will automatically erase all data in the memory disk before recording.
-
Page 13: Cable Installation
2-Channel Mobile Video Recorder User Manual F. Cable Installation Cables (1) Power connector (2) Multi-functional OBD display connector (3) WiFi dongle slot (4) Video out (5) Camera 1 connector (6) Camera 2 connector Note: Please use specified camera that provide by manufacture. - Page 14 2-Channel Mobile Video Recorder User Manual Power cable (a) Power connection: reception (b) Alarm recording (Grey cable): Pre-reserved function. (Reserved function, no effect) (c) Power cable (Red): connect to power positive connector. (d) ACC activation cable (Brown): connect to motorcycle power switch (+). (e) Ground (Black): connect to power supply (-).
-
Page 15: Installation Diagram
2-Channel Mobile Video Recorder User Manual G. Installation diagram Installation on motorcycle... - Page 16 2-Channel Mobile Video Recorder User Manual Attention (1) Please install this device with the help of professional technician to avoid damaging your vehicle. (2) For installation by none-technician, please use tapes instead of boring tools to avoid damaging the electrical and gasoline system.
-
Page 17: Dvr Installation Diagram
2-Channel Mobile Video Recorder User Manual DVR installation diagram (a) DC12V input is approx. 1A Power supply: consumption； Standby power Red cable: DC (+) consumption when ACC OFF is Brown cable: ACC power DC current 2.5mA. Grey cable: Pre-reserved function, no (b) Operation electric pressure：... -
Page 18: Remote Controller (Optional)
2-Channel Mobile Video Recorder User Manual H. Remote Controller (optional) Button Description Description Description Split screen display Enter Force Record Quad display Fast Forward Mute Play back Menu Pause Arrow keys Stop How to check if the Check the mercury cell is installed in Correct remote controller is direction. - Page 19 2-Channel Mobile Video Recorder User Manual Recording and stop recording 1. System initialization / Recording: System initializes within 30 seconds when power is on. PWR green light ON when system is rebooting. System starts to recording when REC green light is flashing. Light Indication: PWR/REC：GREEN on means device POWER is on, Flashing resembles...
-
Page 20: Live View
2-Channel Mobile Video Recorder User Manual J. Live view: (1) The monitor can display video record from CH1, CH2 or both CH1 and CH2. (2) Icon Description: • : Recording • : GPS sensor position successfully. • : Microphone ON •... - Page 21 2-Channel Mobile Video Recorder User Manual Operating 1.Setting default channel mode Mode 2.Audio record ON/OFF The device will activate force recording function, G-Sensor which ensure device keep recording and avoid overwrite records during vehicle collision accident. Restore default After restore default setting, the device will restart Setting and restore default setting data.
-
Page 22: Wifi Connection
2. WLAN connection, type in「DIRECT-SSID-XXXXXX」 a s user ID, password as 「12345678.」 3. Open “VACRON MOTO”, watch real time video record by selecting real time video 4. Select「Playback」 : Capable play all video files that storages in SD card. 5. Select「Download Video files」 , capable download video by date, time and channel for 1 minute. - Page 23 2-Channel Mobile Video Recorder User Manual 7. Click " Video fragment ": watch the video fragment during play real time and playback video APP main menu Real time image...
- Page 24 2-Channel Mobile Video Recorder User Manual Playback Playback Today: choose channel 1 or channel 2, and then press Search button, it will show all video files that record in today. Select and playback any video record as your request. Custom : Choose channel1 or channel2, at meanwhile, setting date and time period, press search, it will show all video records that record during this range,...
- Page 25 2-Channel Mobile Video Recorder User Manual Save list Save list 1. All records: press and playback all downloaded records, which include video clip of real time video, playback video, download image. Real time: video fragment of real time video record, the file name ending with “L”.
- Page 26 2-Channel Mobile Video Recorder User Manual Setting Setting: Select microphone On/Off.( Require use with OBD) Version︰ 1. F/W: Display the device current version 2. App: Display APP current version...
-
Page 27: (C)、Ios
2. WLAN connection, type in「DIRECT-SSID-XXXXXXa 」 s user ID, password as 「12345678. 」 3. Open “ VACRON MOTO ”, watch real time video record by selecting real time video 4. Select「Playback: 」 Capable play all video files that storage in SD card. - Page 28 2-Channel Mobile Video Recorder User Manual Playback Playback Today: choose channel 1 or channel 2, and then press Search button, it will show all video files that record in today. Select and playback any video record as your request. Custom : Choose channel1 or channel2, at meanwhile, setting date and time period, press search, it will show all video record that record during this...
- Page 29 2-Channel Mobile Video Recorder User Manual Save list Save list 1. All records: press and playback all downloaded records, which include video clip of real time video, playback video, download image. 2. Real time: video fragment of real time video record, the file name ending with “L”.
- Page 30 2-Channel Mobile Video Recorder User Manual Attention 1. Live image may be delay caused by wireless signal connection error. 2. Remote control only use for records that storage in device, record cannot be searched when the SD card had been overwritten. 3.
- Page 31 For more information Please visit VACRON website http://www.vacron.com Made in Taiwan...
