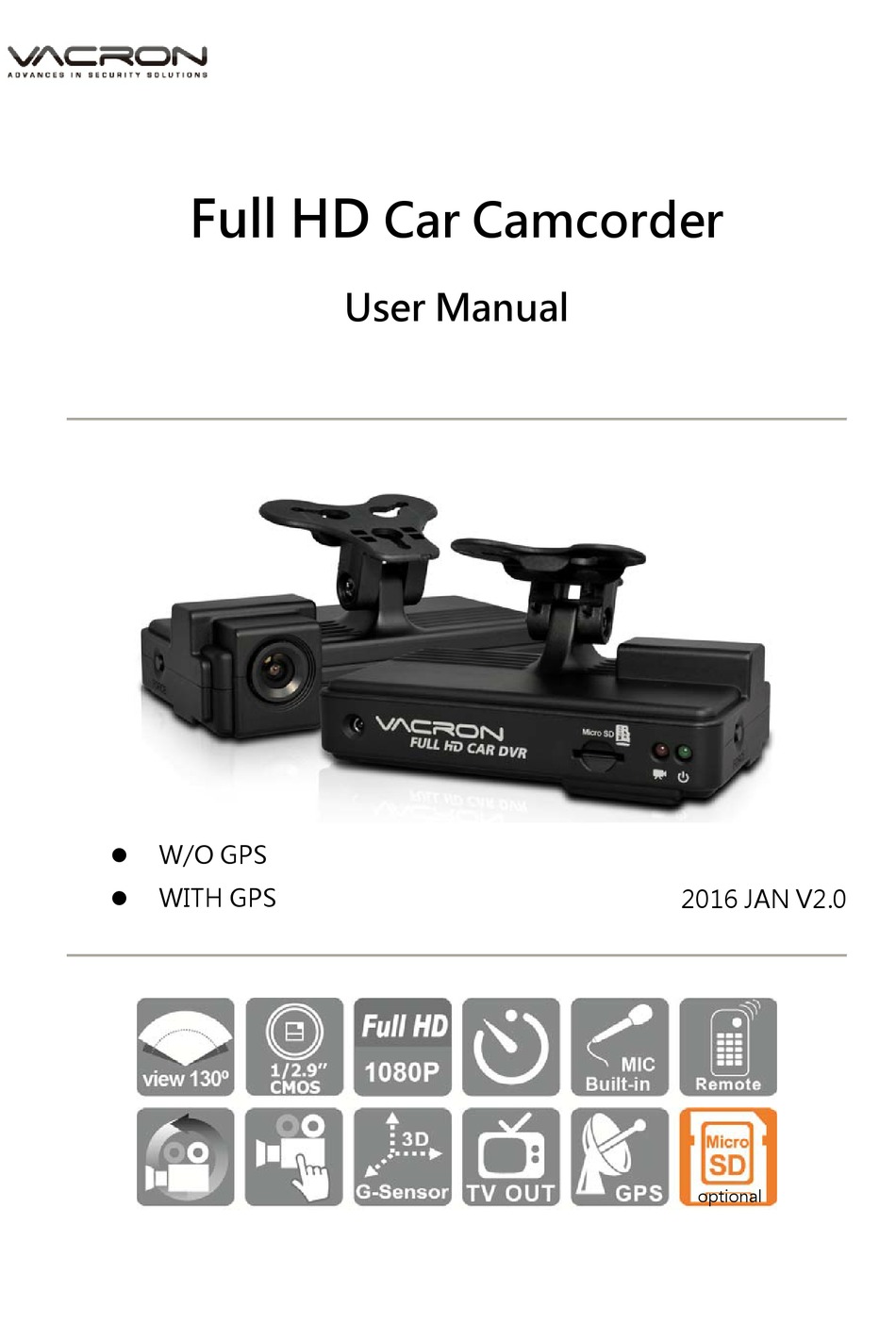

- Page 1 Full HD Car Camcorder User Manual W/O GPS WITH GPS 2016 JAN V2.0 optional...
-
Page 2: Safety Precautions
Car Camcorder User Manual Safety Precautions Please Take and review some testing videos initially to make sure the images were recorded correctly. Please note that manufacturer, its subsidiaries and affiliates, or its distributors are not liable for consequential damages arising from any malfunction of main device accessory, including malfunction memory card that results in the failure of recording video or recorded video ca not be read. - Page 3 Car Camcorder User Manual • Stop using the product immediately if it emits smoke, a strange smell, or otherwise behaves abnormally. • Do not use organic solvents such as alcohol, benzene, or thinner to clean the product. • Do not let the product come into contact with water (e.g. sea water) or other liquid.
-
Page 4: Table Of Contents
D. Installation Instruction ............... 4 E. Product Dimensions ..............6 F. SD Card ..................7 G. Remote Controller ..............9 H. Recording / Stop Recording ............ 10 OSD Menu Function ..............11 Playback Video Files ..............13 K. VACRON Viewer ............... 14... -
Page 5: Feature Description
Car Camcorder User Manual A. Feature Description Built-in megapixel Sony CMOS Sensor. Built-in supercapacitor offers extensional power supply and ensures video is well stored of critical moment and compact. 130°Wide angle 6G+IR glare-depressed lens. Built-in synchronous single-channel microphone. ... -
Page 6: Specification
Recording Data Date/Time/Video/Audio/G-Sensor/GPS data. Storage Format *.ts file is playable on most players, exclusive player available on VACRON website. Use remote control to playback. Audio Input Built-in microphone. Time Setting Built-in calendar clock to adjust the time. -
Page 7: Accessories
Car Camcorder User Manual C. Accessories 3.5M mini-USB power cable 5V cigarette power adapter Remote controller USB card reader Suction cup bracket Bracket holder Quick user manual 4 pings, 3.5 inch headphone jack to RCA output cable... -
Page 8: Installation Instruction
Car Camcorder User Manual D. Installation Instruction 1. To install the device on the windshield by” Sucker-type holder “ or “Stick-Holder” Type Sticker Adhesive Spot, Sucker-type holder Stick-Holder 2. Install the device on the 3. To adjust the recording angle windshield in the best position properly 5. - Page 9 Car Camcorder User Manual 6. VVR installation instruction Caution (1). This device should be installed in the area where the Windshield will be able to be cleaned by windshield wiper. (2). Formatting SD card on the PC before beginning to use. (3).
-
Page 10: Product Dimensions
Car Camcorder User Manual E. Product Dimensions Lens Force Record Power Indicator Cable collect slot Remote Control Receiver Recording Indicator MICRO SD Card DC5V Power input Video Out Battery for permanent calendar... -
Page 11: Sd Card
Car Camcorder User Manual F. SD Card “Format” Micro SD card While applying a brand new Micro SD card, or use a Micro SD card that was take out from other devices, a formatting procedure is required. Caution “Format” will clean all the data saved on Micro SD (1). - Page 12 Car Camcorder User Manual Caution (1). Recommend memory card class 10 or above 8GB Micro SD Card, max to 64GB. (2). Since memory cards have the writing endurance situation, we recommend to inspect the memory card and use pc for playback regularly, to ensure that the memory card can read and write (3).
-
Page 13: Remote Controller
Car Camcorder User Manual G. Remote Controller Playback Emergency REC Menu Navigator Enter Stop √ Check the mercury cell is installed in correct direction. (Check the pole) √ Check if the cell power is exhaust. √ Check if the sensor is covered. How to check if the remote √... -
Page 14: Recording / Stop Recording
Car Camcorder User Manual H. Recording / Stop Recording 1. Power On/Recording When car power on, the device start up automatically. Please wait for 15 Sec. to start recording. 2. Power Off/Stop recording When the car power off, the device will stop to record video and sound. -
Page 15: Osd Menu Function
Car Camcorder User Manual OSD Menu Function In Live view screen press [Menu] will popup OSD operation menu as follows: NTSC / PAL Time Setting Microphone G-Sensor Format Speed Unit Switch Firmware Version 1. Video Type :Click to choose NTSC /PAL. 2. - Page 16 Car Camcorder User Manual sensitive the sensor, the more likely trigger mandatory photography; When emergency record is triggered, it will keep emergency recording and keep the files without being event video overwritten. 5. Format: Click to format Micro SD card. 6.
-
Page 17: Playback Video Files
Car Camcorder User Manual Playback Video Files Playback the video files on PC via the storage card from the vehicle recorder. Suggest use exclusive player program or via video play software to open .TS files. Such as KM、Baofeng、Windows build in Media player…... -
Page 18: Vacron Viewer
Car Camcorder User Manual K. VACRON Viewer ★ Reminder- DirectX 9.0 is required. Allow to move the user interface to left or right. Playback Speed: Fast Forward 2X, 4X, 8X; Slow Forward 1/2X, 1/4X, 1/8X Scroll Bar: playback display can be scrolled to wanted position. - Page 19 Car Camcorder User Manual Control Panel Pause Reverse Play Stop Previous File Previous Frame Next Frame Next File Volume control: Click +、- to adjust volume. Float Interface Click into video list to play and backup Capture playing screen and recording data Display version information and set up version language Play list, time list...
- Page 20 For More Information Please check VACRON Website http://www.vacron.com Made in Taiwan...
