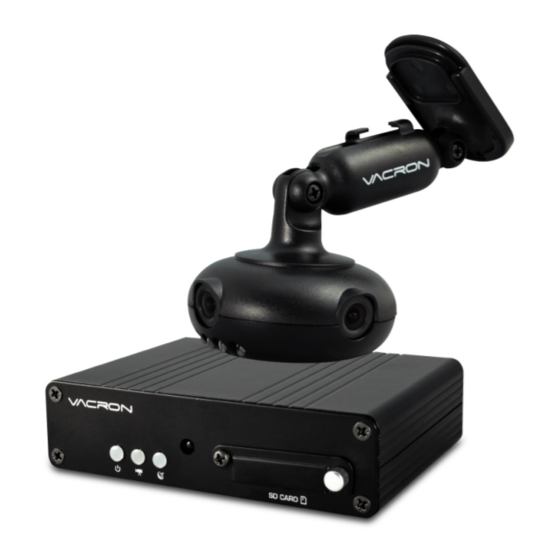

360º Vehicle Surveillance System
4 channel VVR / all in one 4 channel vehicle video recorder
User Menu
2013 AUG V1.0
Mobile DVR
Option
Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VVH-MD657 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vacron VVH-MD657

Summary of Contents for Vacron VVH-MD657

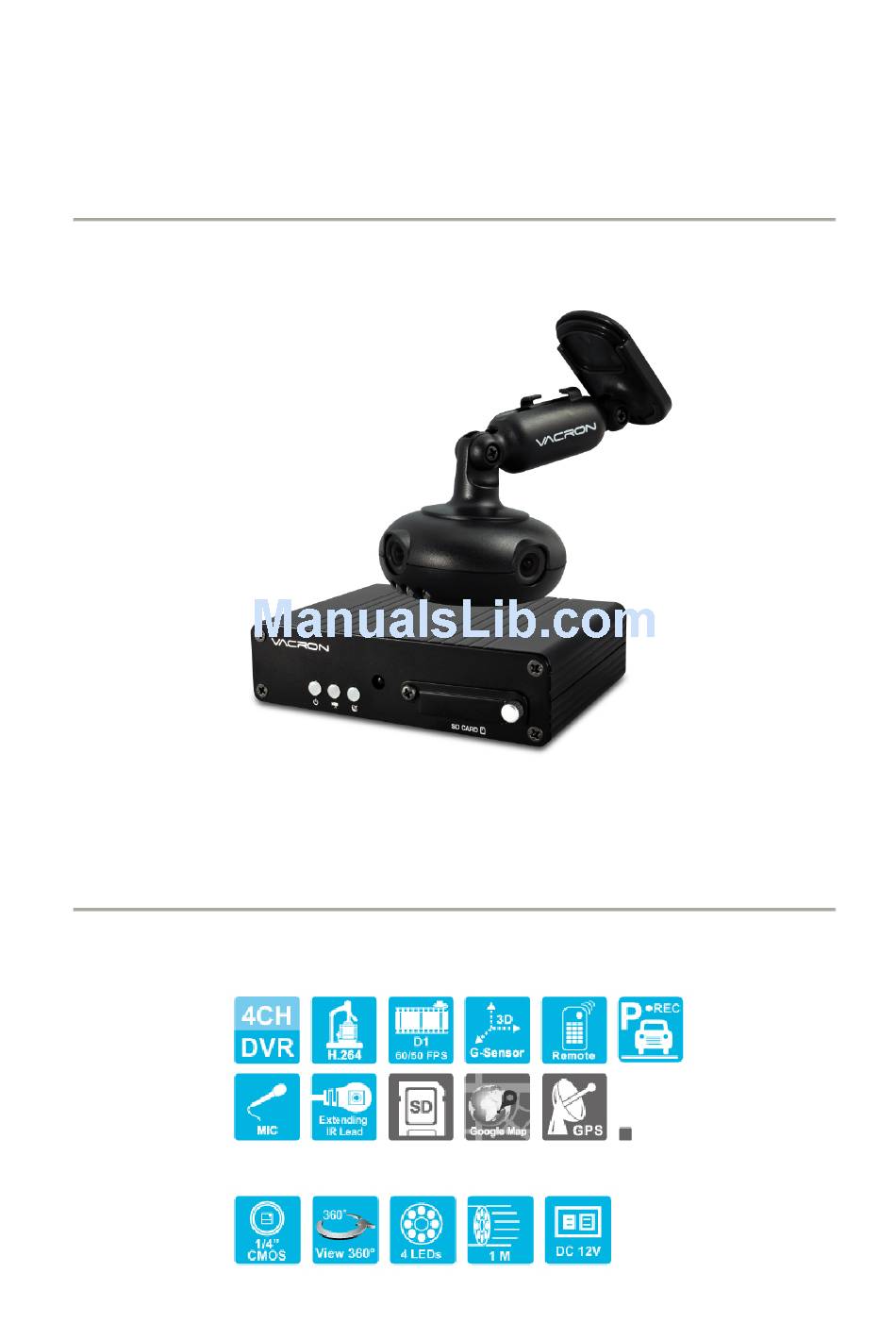

  • Page 1 360º Vehicle Surveillance System 4 channel VVR / all in one 4 channel vehicle video recorder User Menu 2013 AUG V1.0 Mobile DVR Option Camera...

  • Page 2: Safety Precautions

    360º Surveillance Digital Recording System User Menu Safety Precautions Take and review some testing video initially to make sure the images were recorded correctly. Please note that manufacturer, its subsidiaries and affiliates, and its distributors are not liable for consequential damages arising from any malfunction of main device accessory, including memory device that results in the failure of an image to be recorded or to be recorded in a way that is machine readable.

  • Page 3: Table Of Contents

    360º Surveillance Digital Recording System User Menu Table of Contents A. Features ....................1 B. Specification ..................2 C. Accessories ................... 4 D. Product Dimension ................5 Mobile DVR Dimension ............5 Appearance of Camera ............7 E. Installation..................... 8 DVR Wiring Diagram ..............
  • Page 4 360º Surveillance Digital Recording System User Menu (11). G-Sensor setting ............27 (12). Restore to Factory setting ........27 (13). Language setting ............28 (14). Firmware upgrade ............ 28 (15). Firmware version ............29 K. Player (On the personal computer) .......... 30 (1).

  • Page 5: Features

    360º Surveillance Digital Recording System User Menu A. Features All New Parking Surveillance Mode:  - Programmable recording time-reduce vehicle battery exhausting. - Programmable fps - prolong recording time. Mobile DVR with 4CH 360° camera; Leaving no blind spots  of your surroundings.

  • Page 6: Specification

    360º Surveillance Digital Recording System User Menu B. Specification Mobile DVR  Item Description NTSC/PAL Signal type Embedded Linux Video input 1 CH AV Video output 1CH input Audio input Audio output 1CH AV Alarm-in 1 input Icon、Multi-language(English, Traditional Chinese, Simplified Interface Chinese) NTSC...
  • Page 7 360º Surveillance Digital Recording System User Menu Mode time/date, event Playback Full screen LED indicator 3 LED (REC、GPS、POWER) Brightness Contrast Signal off Detection Buzzer G-MOUSE (Optional) with Google Map display G-SENSOR Extending IR Monitoring Mode Auto recording after power on Power input (1) DC 8V~32V (2)ACC Auto Power-off Programmable Dimension...

  • Page 8: Accessories

    360º Surveillance Digital Recording System User Menu Auto-zenith Open automatically control Dynamic range 65 dB Auto-balance Automatic Shutter status Automatic Viewing angle H : 360° V : 70° Signal output 1 Vp-p standard video output,75 Ω IR LED 4PCS IR range Operation - 10°...

  • Page 9: Product Dimension

    360º Surveillance Digital Recording System User Menu D. Product Dimension 1. Mobile DVR Dimension (1). Power Light (4). IR receiver (2). Recording Light (5). SDcard Slot (3). GPS Light (6). GPS Connector：To connect with G-Mouse (GPS sensor) to start GPS function. It can record vehicle location, speed, longitude and latitude.
  • Page 10 360º Surveillance Digital Recording System User Menu recording audio. (10). Alarm Input: Alarm input connector. (11). Camera connector: In pair with AVM-360PV, it can support 360 degree recording. (12). IR extension cable connector: Once upon connecting with the extension cable, the IR receiver will be adjusted to the end of cable.

  • Page 11: Appearance Of Camera

    360º Surveillance Digital Recording System User Menu 2. Appearance of Camera 1. Lens 1 (Front) 4. Lens 4 (Left) 2. Lens 2 (Right) 5. Cable collect slot 3. Lens 3 (Inner) 6. 3M tape Dimension (Unit: mm)

  • Page 12: Installation

    360º Surveillance Digital Recording System User Menu E. Installation 1. DVR Wiring Diagram Power Cable (Black/Blue/Red)  RED：Positive Port (DC8~32 input) Blue : ACC control Black: GND...
  • Page 13 360º Surveillance Digital Recording System User Menu Alarm Cable  1. Yellow：Positive Alarm Input (12V) 2. Black：GND Notice (1). To protect your vehicle, please have professional technician to install this mobile DVR. (2). Please keep all the connecters clean from dust with temporary tape during installation.

  • Page 14: Camera Installation Diagram

    360º Surveillance Digital Recording System User Menu 2. Camera Installation Diagram 1. Install camera on windshield 2. Pick up a best location for by adhesive bracket. installation. Sticker Adhesive Spot 3. To adjust a best view angle. 4. To connect power cable to Mini USB hole.

  • Page 15: How To Install Memory Card

    360º Surveillance Digital Recording System User Menu 3. How to install Memory Card (1). To loose the screws then move the cover to install memory card. (2). See how to format in another chapter. Note：SD Card is optional accessory Notice (1).

  • Page 16: On/Off

    360º Surveillance Digital Recording System User Menu F. ON/OFF ON：  Insert SD card into slot in main engine, connect the power to start. Waiting for around 30 seconds, it will be booted when the power light on. Screenshot of booting OFF：...
  • Page 17 360º Surveillance Digital Recording System User Menu Light Signal：  Power Light (GREEN)： ● No light = No power supply. Light on = Stable power supply. Recording Light (RED)： ● No light = No recording. Light Blinked = On recording. Light Blinked Fast = On force recording.

  • Page 18: Remote Controller Introduction

    360º Surveillance Digital Recording System User Menu G. Remote Controller Introduction CH2 display Force Record CH1 display Quad display CH3 display CH4 display Mute Menu Up, Down, Left, Right Enter Fast Rewind Fast Forward Stop Play Pause Button Description Choose 1-4 CH to display footages when in CH 1~4 real time monitoring or playback.
  • Page 19 360º Surveillance Digital Recording System User Menu Menu Open main menu or back to front page. Up, Down, When enter menu, use these 4 buttons to choose function. Left, Right Enter the function you choose or save the Enter setting you choose. Fast Rewind Rewind the footage when playback.

  • Page 20: Real Time Monitoring Mode

    360º Surveillance Digital Recording System User Menu H. Real Time Monitoring Mode The screenshot of real time monitoring mode: Signal Description On recording. GPS sensor position successfully. Microphone on. Hand Force Recording on. G-Sensor is triggered, force recording automatically on. 1/2/3/4 Display of channel 1/2/3/4 Vehicle speed.

  • Page 21: Playback Instruction

    360º Surveillance Digital Recording System User Menu Playback Instruction There are two ways to playback recorded footages: in main engine and in PC. To playback in main engine Press play button ( ) under Real Time  Monitoring Mode, then select “show all playback list (see picture as below)”and press enter button( ) to see all list.

  • Page 22: To Playback In Pc

    360º Surveillance Digital Recording System User Menu ：This file is recorded by automatically force recording. Playback operation instruction  (1). When playing, if you want to view single channel display, select and press channel button ( (2). When playing, if you want to view quad display, press quad button ( ).
  • Page 23 360º Surveillance Digital Recording System User Menu (3). Select correct memory card drive, then it will show file list, choose and click the file you want to play. Select correct drive (memory card). Select file to play.
  • Page 24 360º Surveillance Digital Recording System User Menu (4). The screenshot of playing...

  • Page 25: Menu Operation On The Mobile Dvr

    360º Surveillance Digital Recording System User Menu J. Menu Operation On The Mobile DVR Main Menu  Main menu setup： (1). Press the remote control icon to start the main menu in live monitoring mode (2). Press icon to move the light bar, then press the related function，then press to enter the related setup.

  • Page 26: Menu Operation And Parameter Setup

    360º Surveillance Digital Recording System User Menu (Main menu 3/4) (Main menu 4/4) Menu OperatiOn And Parameter Setup (1). Video recording setting Main menu－Record setup Record setup setting page 5-15 NTSC 5-30 5-15 5-25 Quality Normal Better High...

  • Page 27: Parking Setting

    360º Surveillance Digital Recording System User Menu (2). Parking setting Main menu－Set Parking Set Parking Mode setting page Mode This is for the purpose to setup the fps after vehicle  power off. Fps setting， less then 『Recording setup』 fps ...

  • Page 28: Time Setting

    360º Surveillance Digital Recording System User Menu (4). Time setting Main menu－Time setting Time setting page  「yyyy/mm/dd/hh/mm/ss/time zone」 DVR will adjust the time and time zone  automatically from the GPS. (5). Vehicle number setting Main menu－Vehicle Number Vehicle Number Setting page Setting Input range：A~Z, 0~9.

  • Page 29: Format The Disk

    360º Surveillance Digital Recording System User Menu (6). Format the disk Main menu－Delete All Delete All Record Data page Record Data ★ Note: All footage in SD card will be erased after format. (7). Live screen mode setting Main menu－Live Screen Live Screen Mode Setting Page Mode Setting ...

  • Page 30: Alarm Setting

    360º Surveillance Digital Recording System User Menu Setup how many times you want to record after  vehicle power off. Recording period setting：From 00:00、00:30、  01:00…Etc. It divided into 30 min as a part, the longest can set as 23:30. If you want to keep always recording, please choose “Never shut down”.

  • Page 31: G-Sensor Setting

    360º Surveillance Digital Recording System User Menu (11). G-Sensor setting Main menu－G_Sensor G_Sensor Setting page Setting G_Sensor options：On、OFF.  G_Sensor Mode：Sedan mode、Truck mode.  G_Sensor sensitivity options：Min、Low、medium、  High、Max. ★After setup the sensitivity, when car impact from outside, DVR will start into 『Force Recording』 mode to prevent event recording do not be overwritten.

  • Page 32: Language Setting

    360º Surveillance Digital Recording System User Menu (13). Language setting Main menu - Language Language Setting page Setting  Language：English / Traditional Chinese / Japanese / Korean / Russian /Spanish / German (14). Firmware upgrade Main menu－Firmware Firmware upgrade page upgrade ...

  • Page 33: Firmware Version

    360º Surveillance Digital Recording System User Menu (15). Firmware version Main Menu－Version Version page You can check the firmware version here to make  sure if you need to update the firmware...

  • Page 34: Player (On The Personal Computer)

    360º Surveillance Digital Recording System User Menu K. Player (On the personal computer) Execute the program CarBox2.exe ，the player will open as follows: ★Note：Your PC need install DirectX 9.0 or above. CH1(Front view) CH4(Left view) CH2(Right view) CH3(Vehicle inside (1). Capture Capture：Screen shoot Click the icon to capture the footage screen.

  • Page 35: Configuration

    360º Surveillance Digital Recording System User Menu (2). Configuration Configuration: Setup the general setting. Before execute this function, please insert the SD card into your computer. When finish all setting and click 『Save』, all the setting will save to the SD card. When you insert the SD card into your DVR, the DVR will read the setting and follow the setting to start recording.
  • Page 36 360º Surveillance Digital Recording System User Menu Image Choose the resolution: High / Quality Normal / Low Set the fps D1 resolution：5~15 CIF resolution：5~30 Image Two format: D1 / CIF Format Car License, Driver (For Informati Company car, Taxi, or fleet) Player Screen size: 1920*1080 UI Mode / 1440*810 / 1024*576...
  • Page 37 360º Surveillance Digital Recording System User Menu Copy Copy all Player’ related files Player to to SD card. SD Card Set the speed unit Speed Km/hr Unit Mile/hr Knot G-sensor mode: G-sensor Sedan/ Truck/ Sensitivity Sensitivity setting： (Min/Low/Normal/High/Max) You can choose how long the DVR will auto power off to Power stop recording after vehicle...

  • Page 38: Backup

    360º Surveillance Digital Recording System User Menu (3). Backup Backup folder：Choose the folder that backup file will save. You can backup the footage on the SD card to your computer for data backup. Choose icon to start the backup function as the following : Step1.Choose the SD card Disk Drive or Backup File.
  • Page 39 360º Surveillance Digital Recording System User Menu Step2.Choose the file you want to backup on the SD card. Step3.Choose backup file audio and format Backup format： ● SD format *.sd ● AVI format .avi Note：*.sd format file contain image/ speed/ location and G-SENSOR data.
  • Page 40 360º Surveillance Digital Recording System User Menu Step4.You also can choose a period to backup the footage during the period. Step5.Choose the backup folder. Step6.Start to backup. Step7. Backup Completed.

  • Page 41: Playback

    360º Surveillance Digital Recording System User Menu (4). Playback Playback the footage：Choose the file in SD Card or in the computer to playback. 1. Choose the SD or Backup File 2. Choose the file (5). Format Format：Format the SD Card、Restore the SD card format to windows format.

  • Page 42: Footage Playback Speed

    360º Surveillance Digital Recording System User Menu (6). Footage playback speed Footage playback ：Can adjust form 2x~16x, and 1/2x~1/16x (7). MAP Map：Show the location on the Google Map, can show the location and drive path. (GPS is optional)

  • Page 43: G-Sensor

    360º Surveillance Digital Recording System User Menu (8). G-sensor G-SENSOR： When G-Sensor be triggered, system will record the X、Y、Z axis data. X： horizon change. Y： Front and rear change. Z： Vertical change. (9). Footage playback speed Playback speed is adjustable from 2x~16x and 1/2X~1/16x.

  • Page 44: Volume

    360º Surveillance Digital Recording System User Menu (10). Volume Volume control bar：Click the ＋or－to adjust the volume. (11). Control panel Previous File Previous Frame Backward Play Pause Stop Play Next Frame Next file...

  • Page 45: Direction And Latitude

    360º Surveillance Digital Recording System User Menu (12). Direction and Latitude Show the direction Show the Latitude Show the direction and Latitude and position. (13). Speed Km/h mile/h knot Speedometer：Set the speed unit.

  • Page 46: Format The Sd Card

    360º Surveillance Digital Recording System User Menu L. Format the SD card Before format the SD card, please backup all files in your card, this procedure will erase all files on the SD card. Q. When you need to format the SD card? A.

  • Page 47: Format In Your Computer

    360º Surveillance Digital Recording System User Menu Step3.When your LCD menu back to the screen as follows, the format procedure is finish. 2. Format in your computer Step1.Pulg your SD card into card reader or SD slot in your computer. Execute the CarBox2.exe software (bundle in our product CD) Step2.Click the...
  • Page 48 360º Surveillance Digital Recording System User Menu Step4. Windows pop up the menu as follows and ask you to answer 『Start to Format this device?』, Please make sure the disk drive is right, then press 『Yes』. Step 5. When the format procedure finish, the following pop window will show on your screen.
  • Page 49 360º Surveillance Digital Recording System User Menu SD card from the computer and insert into the slot again. Then you can start to proceed the related setup on the Player can do. Then insert the SD to your recorder, your recorder is ready for recording the footage.

  • Page 50: Restore The Sd Card

    360º Surveillance Digital Recording System User Menu M. Restore the SD card Before restore the SD card, remember to backup your footage on the SD card, if needed. Q. When you need to restore the SD card? A. When you want to use the SD card on other purpose, you need to proceed the “Restore”...
  • Page 51 360º Surveillance Digital Recording System User Menu Step3.The following window will pop up, Click 『Yes』to start restore the SD. Step4.Now system will pop up the window to proceed the format procedure, please choose 『Quick format』，then click 『Start』.
  • Page 52 360º Surveillance Digital Recording System User Menu Step5. Click 「Yes」 to start formatting the SD card Step6. Click "OK" to finish restore SD card. Step7.After finished, press 『OK』。Then the SD card format is normal windows format.
  • Page 53 More product information Please visit VACRON web-site http://www.vacron.com Made in Taiwan...
