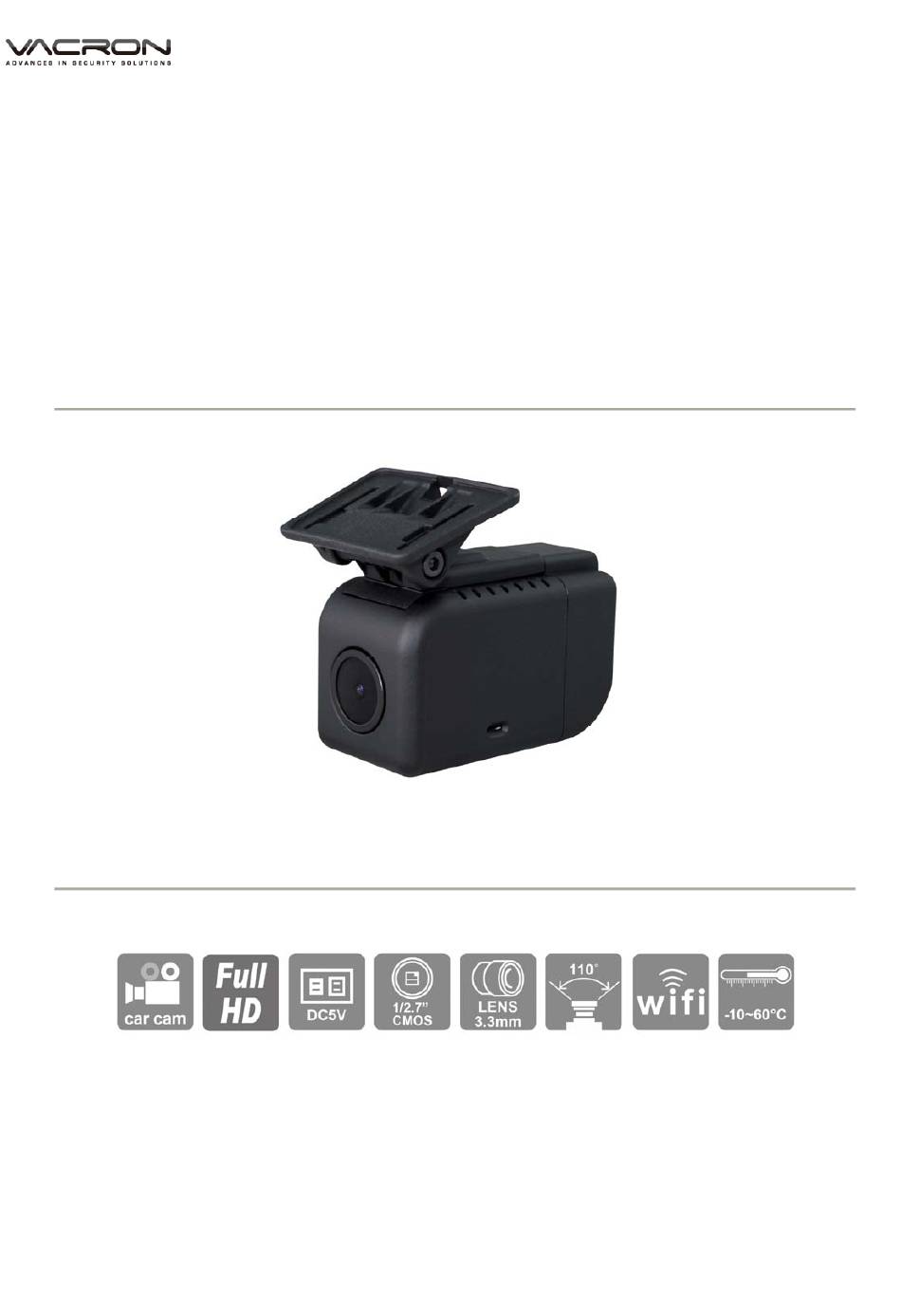

- Page 1 H.264 FULL HD 1080P WIFI Vehicle Video Recorder User Manual 2018 FEB. V2.0...
- Page 2 Safety Precautions Dear Vacron user, Appreciate for you purchase Vacron products. Please contact your local distributor if you meet any questions or need any assistance. We will offer you complete and in time service via a local distributor. However, we still have the rights to upgrade software and hardware without any kind notice beforehand.
-
Page 3: Table Of Contents
WIFI Vehicle Video Recorder User Manual Table of Contents Product Accessories ......................3 Features ..........................3 Specifications ........................4 Appearance/ Dimensions ....................5 Installation diagram ......................6 Micro SD Card ........................7 Record / Stop record ....................... 8 WIFI connection ........................ 9 APP connection: ...................... -
Page 4: Product Accessories
WIFI Vehicle Video Recorder User Manual A. Product Accessories Please check every accessory we listed below, make sure everything is included in the product package before use. If you found anything is missing, please contact the local distributor. Note：The product set does not come with a memory card, please purchase the memory card separately. -
Page 5: Specifications
WIFI Vehicle Video Recorder User Manual C. Specifications Terms Specifications System NTSC \ PAL Image sensor 1/2.9" SONY CMOS Image Sensor 1920(H)×1080(V) Resolution Picture elements 2.12 Mega Pixel 1080P Resolution Synchronization internal Scanning system 2:1interlace Low lux 0.1LUX Noise Min 58db Auto: (1/25NTSC)(1/25 PAL)sec TO 1/50,000 sec Auto Built-in high sensitivity microphone... -
Page 6: Appearance/ Dimensions
WIFI Vehicle Video Recorder User Manual D. Appearance/ Dimensions Dimension：mm LED indicator Lens... -
Page 7: Installation Diagram
WIFI Vehicle Video Recorder User Manual E. Installation diagram Best installation Connect car Power USB cable Bracket holder Power adaptor windshield DVR host Install the device in windshield position.，connect the power USB cable to the power adaptor, and plug it in the cigarette adapter. When the engine turns on, the DVR starts recording. The DVR can be removed from the bracket holder if no uses. -
Page 8: Micro Sd Card
WIFI Vehicle Video Recorder User Manual F. Micro SD Card Micro SD 卡插槽 1. SD card format When the user to purchase a new memory card, or use their existing card, is required after the first card is formatted before use. Attention Backup the data before format the Micro SD Card. -
Page 9: Record / Stop Record
WIFI Vehicle Video Recorder User Manual G. Record / Stop record LED indicator REC. Indicator Power on, around 15s, Red LED Flashing means continuous recording. RED LED is lighted constantly means systems error. 1. Make sure if SD card is plugged. 2. -
Page 10: Wifi Connection
WIFI Vehicle Video Recorder User Manual H. WIFI connection Search WIFI SSID WLAN connection, SSID is DIRECT-SSID-xxxxxx as user ID. WIFI password: 12345678 ... -
Page 11: App Connection
1. Visit Google play store, search for ”VACRON MOTO” and download 2. WLAN connection, type in「DIRECT-SSID-XXXXXX」 as user ID, password as「12345678」 . 3. Open “VACRON MOTO”, watch real-time video record by selecting real-time video 4. Select「Playback」 : Capable play all video files that storages in SD card. - Page 12 WIFI Vehicle Video Recorder User Manual Playback Playback Today: choose channel 1 or channel 2, and then press the Search button, it will show all video files that record in today. Select and playback any video record as your request. Custom: Choose channel1 or channel2, meanwhile, setting date and period time, press search, it will show all video records that...
- Page 13 WIFI Vehicle Video Recorder User Manual Save list Save list 1. All records: press and playback all downloaded records, which include a video clip of real-time video, playback video, download image. Real-time: video fragment of real time video record, the file name ending with “L”.
- Page 14 WIFI Vehicle Video Recorder User Manual Setting Setting: Select microphone On/Off. (Require use with OBD) Version: 1. F/W: Display the device current version 2. App: Display APP current version...
- Page 15 2. WLAN connection, type in「DIRECT-SSID-XXXXXX」 a s user ID, password as「12345678」 . 3. Open “ VACRON MOTO ”, watch real time video record by selecting real time video 4. Select「Playback」 : Capable play all video files that storage in SD card.
- Page 16 WIFI Vehicle Video Recorder User Manual Playback Playback Today: choose channel 1 or channel 2, and then press Search button, it will show all video files that record in today. Select and playback any video record as your request. Custom: Choose channel1 or channel2, at meanwhile, setting date and time period, press search, it will show all video record that record during this range, select and playback any...
- Page 17 WIFI Vehicle Video Recorder User Manual Save list Save list 1. All records: press and playback all downloaded records, which include video clip of real time video, playback video, download image. 2. Real time: video fragment of real time video record, the file name ending with “L”.
-
Page 18: Playback
WIFI Vehicle Video Recorder User Manual Attention 1. Live image may be a delay caused by wireless signal connection error. 2. Remote control only uses for records that storage in device, record cannot be searched when the SD card had been overwritten. 3. -
Page 19: Pc Player
WIFI Vehicle Video Recorder User Manual K. PC Player Run the player software by pressing , player o as following: ◎ To do this, the software should be installed DirectX 9.0 or above. 。 1. Viewer interface Function control interface Not support Not support Volume... - Page 20 WIFI Vehicle Video Recorder User Manual 2. Function control interface Close Minimal window Select and playback file Calendar Backup Screen shot Setting Tool box, for format SD card, language 3. Play & Setting Icon Instruction Play previous file Stop Play previous frame Play Play backward Play next frame...
-
Page 21: Data Backup
WIFI Vehicle Video Recorder User Manual L. Data Backup Save data from SD card to PC or other device. Use PC player and click to enter backup interface: Step1. Choose SD card source: Step2. Choose backup files Step3. Choose backup data format... - Page 22 WIFI Vehicle Video Recorder User Manual Data format： SD card original format (RAW) RAW file *.sd AVI Format (*.avi) Cam1 and Cam 2, *.avi file Note: it is recommend backup to memory card in original format, the format will be containing GPS latitude and longitude, speed, recorded data such as G-SENSOR, if the backup date in *.AVI Step4.
-
Page 23: Sd Card
WIFI Vehicle Video Recorder User Manual M. SD Card 1. Before recording, insert SD Card into a card reader, and then insert the card reader to USB slot in PC, launch player and setting record format and displaying mode. After setting successfully, remove and insert SD card back to DVR. - Page 24 WIFI Vehicle Video Recorder User Manual ★ Note: Please confirm the font case and record the password to avoid password forgetting. GMT (GPS automatic time correction) Time zone Copy player Copy player to SD card to SD card Set for detecting the strength of vehicle collision, and condition to sensor lead G-sensor sensitivity trigger and...
- Page 25 WIFI Vehicle Video Recorder User Manual 2. WIFI connection SSID: type in WIFI connect ID。 SSID Password: Password: WIFI connect password...
- Page 26 WIFI Vehicle Video Recorder User Manual 3. Live Video Set Up Live video function Set up the live video function on or off On/Off Live stream URL Enter the live stream server URL Live stream URL Enter the stream URL/key password...
-
Page 27: Playback
WIFI Vehicle Video Recorder User Manual OUTUB example of live stream Live stream URL Live stream URL password N. Playback Playback on PC player Click to enter playback mode... - Page 28 WIFI Vehicle Video Recorder User Manual (1) Select the path of the memory disk or a backup file on the hard disk. (2) Double click on the desired footage to play the file.
-
Page 29: Screenshot Tools
WIFI Vehicle Video Recorder User Manual O. Screenshot tools User can take a screenshot of the current frame by pressing Screenshot image will be saved at C: /Black Box, user can enter to set image path. Data format is *.bmp... -
Page 30: Format / Restore Sd Card
WIFI Vehicle Video Recorder User Manual P. Format / Restore SD card Q1. When does user need to format SD card？ When a user uses a brand new SD card, please format it before use. ★Note: This recording system cannot delete some specific video file, please backup video files that you need first before formatting. - Page 31 WIFI Vehicle Video Recorder User Manual Q3. How to format/restore SD cards? (1). Put the SD card into a card reader, and then plug the card reader into your computer USB slot. (2). Play software , click to enter formatting tool. (3).
