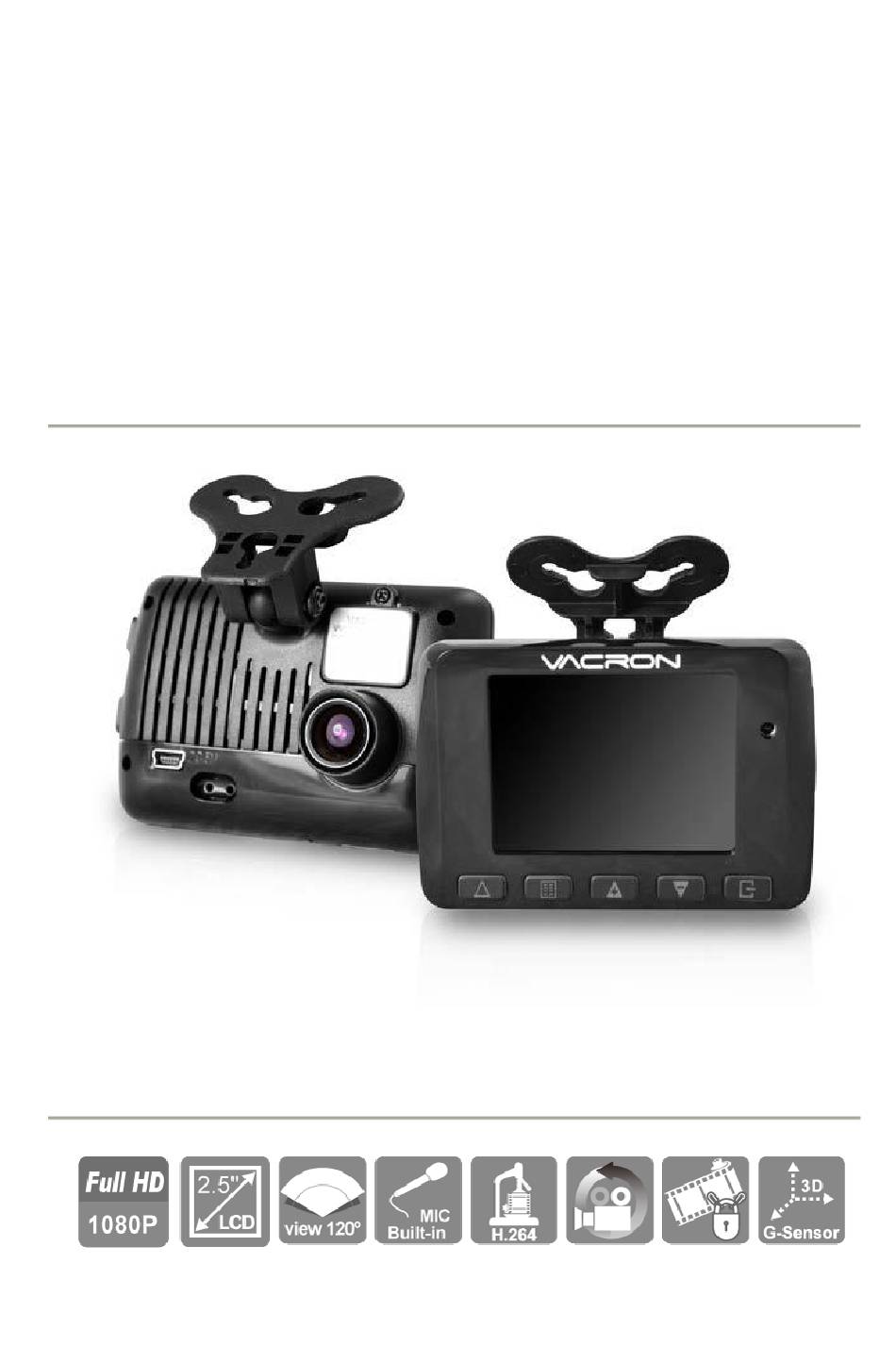

- Page 1 Full HD Vehicle Video Recorder User Manual 2019 JULY V1.0...
- Page 2 Vehicle Video Recorder User Manual Safety Precautions Please Take and review some testing videos initially to make sure the images were recorded correctly. Please note that manufacturer, its subsidiaries and affiliates, and its distributors are not liable for consequential damages arising from any malfunction of main device accessory, including memory device that results in the failure of an image to be recorded or to be recorded in a way that is machine readable.
- Page 3 Vehicle Video Recorder User Manual • Do not let the product come into contact with water (e.g. sea water) or other liquids. • Do not allow liquids or foreign objects to enter the VVR. • Do not place the VVR near or in direct flame. •...
-
Page 4: Table Of Contents
Vehicle Video Recorder User Manual Index A. ACCESSORIES ................. 1 B. FEATURE DESCRIPTION ..............2 C. SPECIFICATIONS ................3 D. INSTALLATION ................5 E. CONTROL PANEL / FUNCTION BOARD ........7 F. SD CARD INSTALLATION ............... 9 G. RECORD AND STOP ..............11 H. -
Page 5: Accessories
Vehicle Video Recorder User Manual A. ACCESSORIES Please review the contents prior to use. Please contact your local dealer if something not found in the box. ※ Storage card is not included in the box as free provision. Standard Cigarette Lighter Adapter Bracket Monitor Mount (3M double sided tape included) -
Page 6: Feature Description
Vehicle Video Recorder User Manual B. FEATURE DESCRIPTION FullHD 1080P, H.264, real-time recording. ■ 120° wide-angle 5MP sensor. ■ 2.5”TFT LCD. ■ Share of performance as the entire SD card. ■ Records video and audio of a car around. ■ SDHC Card in Use, Class 10 or above 8GB at least, max to ■... -
Page 7: Specifications
Vehicle Video Recorder User Manual C. SPECIFICATIONS Item Description Sensor SONY CMOS Sensor FullHD 1080p Resolution Resolution NTSC 1080P 30FPS / PAL 1080P 25FPS DC5V±5% / 1 Amp. Power Supply Build-in 1.5F super-capacitor. Operating Tmp. -10℃~ +60℃ SDHC Card Recommended Class 10 or above Storage 8GB at least, max to 128GB. - Page 8 Vehicle Video Recorder User Manual 1. Startup Menu and OSD (on screen display) might be varied with firmware update. 2. Please refer to the SD card usage and life limit, and check video recording periodically Notification with Carbox player on PC to ensure normal recording.
-
Page 9: Installation
Vehicle Video Recorder User Manual D. INSTALLATION... - Page 10 Vehicle Video Recorder User Manual Notice (a) This device should be installed on the windshield of clean and dry. (b) The best location must be in the range of the moving wipes. (c) Format the memory card in the DVR prior the very first recording.
-
Page 11: Control Panel / Function Board
Vehicle Video Recorder User Manual E. CONTROL PANEL / FUNCTION BOARD IR Receiver TFT LCD Emergency Record Enter/Play Down/Light - Menu/Left & Right Up/Light＋ • Emergency Record is a priority button. Whenever Emergency Record occurs record status comes up to the screen. •... - Page 12 Vehicle Video Recorder User Manual Battery DC5V Power In SD Card Slot Lens Size of VVR unit ：mm...
-
Page 13: Sd Card Installation
Vehicle Video Recorder User Manual F. SD CARD INSTALLATION Warning (1). Recommended Class 10 or above 8GB at least, up to 128GB. (2). If the memory card is not formatted by the player, the device will automatically erase all the data. (3). - Page 14 Vehicle Video Recorder User Manual (5). When the SD card life monitor index is less than 5%, the red light of the device will flash for 10 seconds, and the warning notice will be displayed for 10 seconds on screen. After 10 seconds, it will return to the normal status.
-
Page 15: Record And Stop
Vehicle Video Recorder User Manual G. RECORD AND STOP 1. Reboot/Record Reboot the DVR system ready in 20 seconds. DVR starts recording. 2. Power Off/Stop It stops recording once power is off, build-in capacitor offer 3 seconds extra power to make sure file is well stored. User can remove the memory card after the indication light is off. -
Page 16: Remote Control (Optional)
Vehicle Video Recorder User Manual H. REMOTE CONTROL (optional) Playback OSD Screen on/off Emergency REC Menu Navigator Enter Stop / Return... -
Page 17: Osd Menu Function
Vehicle Video Recorder User Manual OSD MENU FUNCTION Select Menu enter OSD as below NTSC / PAL Time setting Eco-saving monitor Microphone G-Sensor Format SD card life monitor Firmware Version 1. Video standard: click to set NTSC or PAL. 2. Time setting: click to set calendar. - Page 18 Vehicle Video Recorder User Manual SD card life monitor ︰to show current life of SD card. 8. Version: click to show current firmware version information.
-
Page 19: Playback
Vehicle Video Recorder User Manual J. PLAYBACK Click the playback function to enter playback menu, and choose the recorded video fragment. : Manual/Emergency Recording. : G-Sensor Recording. -
Page 20: Pc Viewer
Vehicle Video Recorder User Manual K. PC VIEWER ★ Reminder- (1). To do this, the software should be installed DirectX 9.0 or above. (2). Support OS: WINDOWS 7,8,10, does not support MAC OS. (3). The recommended hardware requirements: i5 above grade 3.1GHZ, RAM: 4G or more, more preferably independent display card. - Page 21 Vehicle Video Recorder User Manual Scroll Bar: playback display can be scrolled to wanted position. Set the start and end point to identify the range, right click to backup the video files.
- Page 22 Vehicle Video Recorder User Manual Control Panel Pause Reverse Play Stop Previous File Previous Frame Next Frame Next File 4. Volume control: Click +、- to adjust volume. 5. File backup: click to choose file save directory.
- Page 23 Vehicle Video Recorder User Manual 6. Snap Shot: to capture the picture during playback, and click to save the file to directory (default directory: /Snaptshot, the saving directory can be changed. The file format is “.bmp”) 7. Current Version: click to view current version and setting language.
- Page 24 Vehicle Video Recorder User Manual...
- Page 25 Vehicle Video Recorder User Manual 8. Playback List: to access video recording and jump to required segment by scrolling time bar. 9. G-SENSOR G-Sensor will detect the impacts form the car, and record 1-3 minutes video automatically. This footage saves to the separate area to avoid file from being overwritten.
-
Page 26: Record Time Estimation
Vehicle Video Recorder User Manual L. RECORD TIME ESTIMATION The chart below is for reference only. The length of recording time can be varied due to variation in image size and video quality. Capacity 16GB 32GB Quality High 120 Minutes 240 Minutes 480 Minutes... -
Page 27: Criteria Of Tft Lcd Inspection
Vehicle Video Recorder User Manual M. CRITERIA OF TFT LCD INSPECTION Ｑ: What is bright spot? What is dark spot? Ａ: Bright Spot: At dark background, we found the abnormal bright spots, we called those spot are “Bright Spot” Dark Spot: At multiple color background (excluded dark ...
