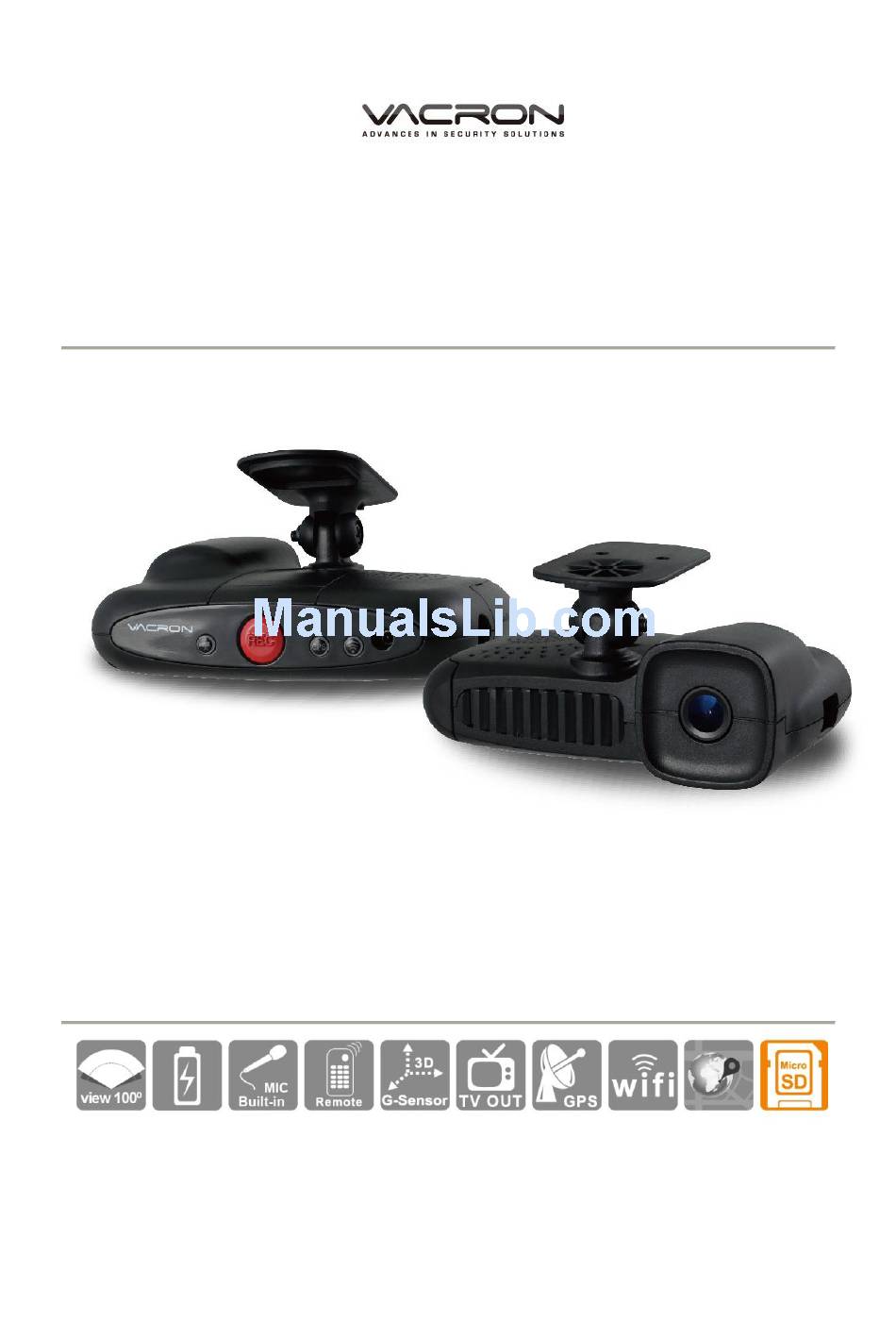

- Page 1 Smart Driving Recorder User Manual 2016 JUN. V1.0 Option * Memory cards are not Include, .
-
Page 2: Table Of Contents
Installation Guide .................... 11 Memory Card Install ..................14 Start / Stop Recording ................... 17 Functions of Remote Controller ..............19 VACRON Player ....................20 Video Play ......................24 Even Calendar ....................25 Backup ......................... 26 Quick Backup ....................26 Disk Backup ....................... - Page 3 User manual Toolbar operation ................... 42 Format SD card ....................42 Restoring Memory Card ................44 Interface Language setting ................. 45 Version ......................... 46 3D (G-SENSOR) ....................47 Check impact sensor analyzer ..............47 Mandatory event video through G-SENSOR ........47 Route / position coordinates ..............
-
Page 4: Notice
User manual Notice Please test recording and play function to make sure the device is running well. Attention, if the failure was due to device accessories included memory card out of function to lead to any loss of video recording function fail or unable to read the video type, our company ,subsidiary bodies and agency all not responsible for indemnification. - Page 5 User manual • If the device is smoking, waft peculiar smell or any abnormal issues, please stop to operate the device. • Please do not let any liquid or object into the device. • Please avoid the terminal or plug to contact any metal object (ex.
-
Page 6: Accessories
User manual Accessories Before use, check the package offered by the following items. If you find that items are not complete, please contact your retailer to purchase. ※ Memory cards are not include Standard： (a) 5V cigarette Power adapter (b) 4 pings, 3.5 inch headphone jack to RCA output cable (c) WiFi/Bluetooth USB Dongle(Install to device) (d) Remote control (e) Bracket holder... -

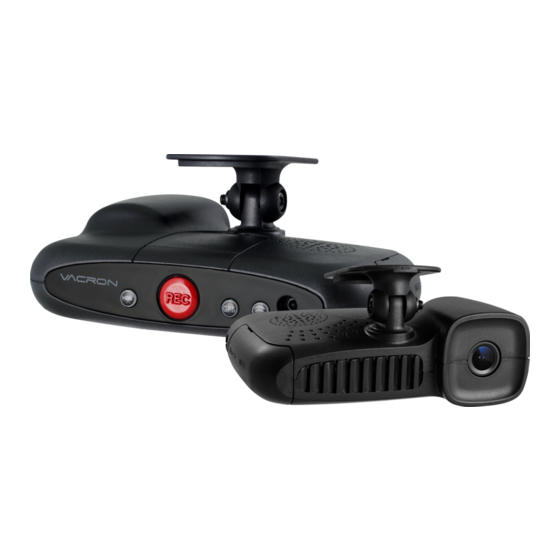

Page 7: Structure Of Product
User manual Structure of Product Remote Control Receiver 接收器 Wifi/ Bluetooth Force Recording Button Indicator Recording Indicator Power / GPS Indicator Lens Forward Facing... - Page 8 User manual TV out Wifi / Bluetooth USB dongle Micro SD Power 5v...
-
Page 9: Dimension
User manual Dimension Unit：mm... -
Page 10: Recorder Initial Setting
, please using VACRON player to format SD Card first. You can find the VACRON player in CD, or visit (2). VACRON website to download it. Please run the program as Administrator to open this (3). - Page 11 User manual Memory Card format Operation screen...
- Page 12 User manual Memory card recording the initial value setting Open VACRON player and click on「Configuration」 (1). , to initial setting data. Detailed settings, please refer to <Memory card configuration> section explains. Memory card Configuration Operation screen Memory Installation Please note that the memory card before inserting the memory card is inserted, refer to <Memory card...
- Page 13 User manual Recording After recorder connect the power and start the car, it will automatically turn on and start recording. Refer to the <start and stop recording> section explains.
-
Page 14: Installation Guide
User manual Installation Guide 1. The "fixing bracket adhesive sticker" and host-to-latch link Adhesive paste Fixing bracket Adhesive sticker 2. Install the device in windshield position around rearview mirror by the front passenger seat 3. Adjust the viewing angle. - Page 15 User manual 4. Plug the power cable to socket DC5V. 5. Plug in the cigarette adapter 6. Recorder installation guide Installation Complete! Connect to cigarette adapter.
- Page 16 (c) When the machine is installed, it can be installed in the wiper to clean the area. (d) The initial use of a memory card recording, first in VACRON Player configuration data to the memory card. (e) The initial use of a memory card recording please set the...
-
Page 17: Memory Card Install
User manual Memory Card Install Micro SD Card Side flip cover Insert the memory card side flip cover is open; you can install or remove the memory card. When not using the memory card, insert the dust cover closed, dust or other foreign matter can be isolated from the memory card may cause anomalies generated. - Page 18 User manual Memory Card Precautions (1). Class 10 memory card is recommended above SDHC Card (need to use more than 8G) (2). Failure to use a dedicated memory card playback software format, then the machine will be forced to clear the entire memory card information, then the machine in order to start recording a preset value.
- Page 19 User manual (7). Whether the memory card 8G, 16G, 32G or 64G, after the unit or format the player, to see the computer storage only 80MB, the rest is dark file format, you must be able to see files via player.
-
Page 20: Start / Stop Recording
User manual Start / Stop Recording Start/Recording: Power on, and wait about 30 seconds later, the boot is complete. Red light flashes from a presentation showing the video. WiFi/Bluetooth Indicator Recording Indicator Force Recording Button Power /GPS Indicator Indicator Video light (red): Red indicator of REC, ●... - Page 21 User manual 2. Power Off / Stop Recording Built-in super capacitor, when the device power off and delay of about three seconds, the data buffer is written back to the SD card, wait for the lights go out is to stop recording, then you can remove the memory card file to read the video's...
-
Page 22: Functions Of Remote Controller
User manual Functions of Remote Controller Button Function Description Force Manually establish a ▲ Recording recorded file which Button cannot be overwritten. Menu Device version number Menu Button Mute Voice recording On/Off Button Playback Playback list Button √ Check the battery polarity Remote control √... -
Page 23: Vacron Player
(A) To do this, the software should be installed DirectX 9.0 or above. (B) Support OS: WINDOWS XP, VISTA, 7,8,10, does not support MAC OS (C) The recommended hardware requirements: i3 above grade 2.7GHZ, RAM: 4G or more, more preferably independent display card 2. Vacron player Interface... - Page 24 User manual a. Play & Settings Icon Instruction： Close Minimal Playback Calendar Backup Snapshot Configuration Format G-sensor Compass Functional operation described in detail, please refer to the other sections explain...
- Page 25 User manual b. Speed Speed Meter Speed display c. Volume Volume display 音量顯示 Volume up Volume on Volume down 聲音開啟 Mute...
- Page 26 User manual d. Playback controls Playback speed Backup start Playback BAR Quick Backup (1) BAR：Available left mouse button and move around to pull BAR, fast-moving. Top boxes BAR Flagged can be the backup. (2) Playback speed：2X、4X、8X Fast Forward and -2X、- 4X、-8X playback.
-
Page 27: Video Play
User manual Video Play Using Vacron player to playback Click on open files , choice files to play in memory or HDDS Video playback operator： 1. Select the source of the film path, memory card reader, or by reading backup file 2. -
Page 28: Even Calendar
User manual Even Calendar Using the Vacron player, click on「Even Calendar」 Date Event browse video files to follow the sequence of operations to date -> times -> select points. █Green point of videotaped information, mouse click the █ Bluepoint. In videotaped information using mouse to... -
Page 29: Backup
User manual Backup Using the Vacron player, backup file. Backup There are two ways: 1、using the playback interface "Quick Backup" operation; 2、 the use of software to control the operation of the key "Disk Backup" to backup videos. Quick Backup... - Page 30 User manual Quick video backup Notes： (1). Backup video file formats in their original format(*.sd) (2). stored in the file path c:\BlackBox\data...
-
Page 31: Disk Backup
User manual Disk Backup Click on 『disk backup』 , That would appear under the window Video backup interface... - Page 32 User manual Select backup data source (1). Select backup recorder data (2). Select backup data format：original backup(*.sd) (3). or AVI backup(*.avi)
- Page 33 User manual *Notes: In the original format of the backup memory card, that format will include GPS latitude and longitude, speed, G-SENSOR data and other records, * .avi format backup of the terms of the date, video and audio data, it is more recommended that the memory card in its original format backup.
- Page 34 User manual After the above description is set up, you can (8). press the "Start Backup" button to backup. Backup complete After the movie backup is complete, you can view (9). data in the backup box Backup can be divided according to format： (a) Memory card in original format Micro SD Card File type (*.sd)
- Page 35 User manual (b)AVI File Backup (*.avi) CHN01 is the forward facing lens record. The file name is *.avi.
-
Page 36: Snapshot
User manual Snapshot Snapshot operator While playback video and click snapshot , It is played to the display screen to save the theme of archives. Capture the screen, then save it under the same program to play/Snapshot. Files format *.bmp. - Page 37 User manual Snapshot theme archive path Select 『HDDS Backup』 , The following will appear depending on Video backup interface Click on「snapshot save location」, It can replace the position of the image archive screenshots...
-
Page 38: Memory Card Configuration
Micro SD memory card inserted in the host side, and you can move the carriage were recording. Using Vacron player, select「configuration」 Memory card data recording performed the initial value setting... -
Page 39: Video Memory Card Data - Basic Settings
After setting the password, it is required to enter password to access the playback file, setting, formatting memory card. Time Zone: Time zone GMT (GPS auto time correction) VACRON Player Playback Copy to software is copied to the SD Card memory card. You can always... - Page 40 User manual use the other computer playback software to view the video information. You can set up the speed unit here. Km/h: kilometer per hour Unit Of Mile/h: mile per hour Speed Knot：knot per hour ★ Note：1 KM=0.6214 mile, 1 mile=1.6093KM Set the sensitivity for G-sensor.
-
Page 41: Memory Card Recorder -Wifi Setting
User manual 2. Memory card recorder –WiFi setting WiFi/Bluetooth USB dongle Side flip cover WiFi /Bluetooth Dongle *Notes: WiFi/Bluetooth Wireless card to do in the factory setting driver, do not arbitrarily remove or change settings on * Picture for reference only, actual factory products, WiFi/Bluetooth USB the computer to do other, so wireless network card, factory-installed... - Page 42 User manual WiFi function setting SSID, available revise SSID name, The default name for the SSID. Setting ★NOTE: Please set a password SSID enter alphanumeric combinations, do not enter the Chinese in order to avoid garbled.
- Page 43 User manual This feature allows SSID encryption to prevent unauthorized access to any information. Set a password of 15 characters is limited, at least 8 yards. Example: 123456789123456 After setting a password and password is required to connect the machine. ★...
- Page 44 User manual If data is set, please press "Save" button, the setting data stored in the memory card. And inserted back in the recorder, complete video recorder host basic settings and WiFi settings. Player Setting...
-
Page 45: Toolbar Operation
User manual Toolbar operation Open the player and click on「toolbar」 , Perform memory card format memory card and restore operations, or language settings, or to view the current version of the software. Toolbar interface Format SD card What conditions need to format the memory card? When the user to purchase a new memory card, or use their existing card, is required after the first card is formatted before use. - Page 46 User manual *Notes: 1. Before formatting Micro SD card, please ensure to unlock it first. 2. If the card is unlocked but still cannot be formatted, this might be caused by Window Vista / 7 security restrictions. Please run the program as Administrator to prevent from this problem.
-
Page 47: Restoring Memory Card
User manual Restoring Memory Card When the memory card after the video images are recorded when files have been backed up in the computer, and the memory card to be done to other storage purposes, then the card must first restore operation, only do it with !! *Notes: 1. -
Page 48: Interface Language Setting
User manual Restore memory card images to Windows 7 as an example, as shown in step： (1) Select the card you want to restore path location. (2) Press the "Restore" button, confirm that you want to restore the memory card, then follow the steps to complete the operation screen, you can move to do other storage purposes. -
Page 49: Version
User manual Version Current software version, go VACRON website to download or check it... -
Page 50: G-Sensor)
Force Save before the accident, after 1 to 3 minutes video, other images will not be covered by guarantee complete accident image. G-SENSOR SETTING： Open the VACRON Viewer, select「Configuration」 Memory card data recording performed the initial value setting. Detailed settings, please refer to <Memory card configuration> section explains. - Page 51 If gravity sensor set too low, leading to excessive locked file caused by lack of memory card space, the machine can’t continue recording, please use VACRON Player format cards.
-
Page 52: Route / Position Coordinates
User manual Route / position coordinates Open player and click「 」, can be check route and position coordinates. Route position coordinates position coordinates... -
Page 53: Product Upgrade
(2) firmware update, follow these steps: - The memory card in the recorder with a card reader connected to the computer. - Enter VACRON official website (www.vacron.com) click on "Technical Support." - After entering the download area, click to download the corresponding model, begin downloading the update firmware to the memory card. -
Page 54: Notes 1 ：Product Future
User manual Notes 1 ：Product future 1. Ultra-low-light one million high-definition CMOS sensor. 2. Built-in gold capacitor backup power available at the accidental impact while retaining most real side. 3. The anti-noise microphone sensitivity can be synchronized record vehicle driving conditions and interior sound data. -
Page 55: Notes 2 ：Product Specifications
User manual Notes 2 ：Product Specifications Item Specification Sensor CMOS Sensor View Angle 2.45mm Outside vehicle approx 100 degree NTSC：720P/ 30fps or 1080P/30 fps. Recording Frame PAL：720P/ 25fps or 1080P/25 fps 1Mbps Streaming(720P) or Video Streaming 512Kbps Streaming(VGA). (a) Using DC5V±5%、1A adapter Voltage (b) Insert 1.5F super capacitor (a) TV-Out (1 Vp-p composite video output, 75... - Page 56 User manual WiFi Inside WiFi Dongle or Bluetooth Dongle G-Sensor (Internal 3D G-Sensor) * Product specifications are subject to change without notice.
- Page 57 Made in Taiwan...
