Vacron VVA-CBE27 User Manual

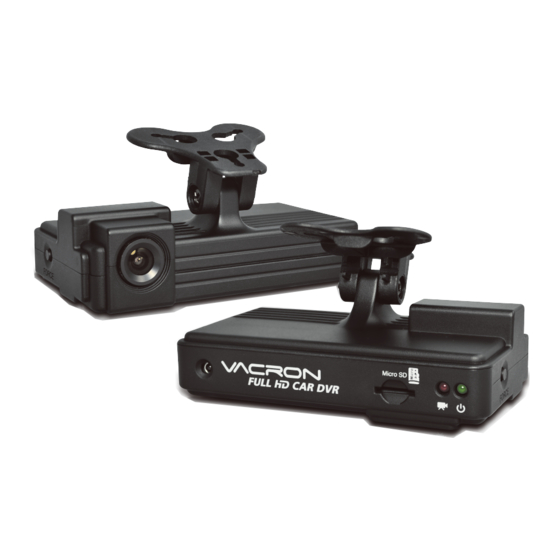

Full hd 5 megapixel vehicle video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

FULL HD 5 Megapixel
Vehicle Video Recorder
Two types for this Model:
Type A W/O GPS / Type B Built-in GPS
CAUTION BEFORE USE:
1. When you use the Micro SD card at the first time, please format it firstly.
2. The Micro SD card can be formatted by remote controller after connecting TV out
cable to TV. Or you can format the memory card by operating the player software
on PC.
3. Please don't take out the Micro SD card suddenly when connecting with power. It
should be switch off first or it might are likely to cause the destruction of data.
User Manual
i
2012 NOV V1.1
TYPE B OPTIONAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VVA-CBE27 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vacron VVA-CBE27

Summary of Contents for Vacron VVA-CBE27

  • Page 1 FULL HD 5 Megapixel Vehicle Video Recorder User Manual 2012 NOV V1.1 TYPE B OPTIONAL Two types for this Model: Type A W/O GPS / Type B Built-in GPS CAUTION BEFORE USE: 1. When you use the Micro SD card at the first time, please format it firstly. 2.

  • Page 2: Table Of Contents

    Index A. Feature Description ..............1 B. Schematic Diagram of The Installation Steps ....... 2 C. Specification ................. 3 D. Product Dimensions ..............5 E. Remote Controller Description ............6 F. Main Menu Operating Description ..........7 G. Play The Recorded File .............. 24 H.

  • Page 3: Feature Description

    A. Feature  Built-in Full HD 5M CMOS Sensor. Viewing angle approx. 105 degrees.  Easy installation. Suitable for all types of vehicles use.  Video record outside driving conditions and audio record inside the vehicle simultaneously.  G-sensor, GPS and Image data are recorded and playable on client software.

  • Page 4: Schematic Diagram Of The Installation Steps

    B. Schematic Diagram of The Installation Steps Two types of brackets installation for selection, suction-cups type and stick-holder type. Suction-cups Type A1. Make the bracket A2.Assemble the suction A3. Set up appropriate facing upward cups, and insert the Micro position by suction cups. SD card.

  • Page 5: Specification

    C. Specification Items Description Chipset Ambarella H.264 image compression chip Sensor Device Full HD 5M CMOS Sensor View Angle View angle approx. 105 degrees. Voltage 5V± 5%; 650mA, Operating -10℃~ +70℃ (Inside vehicle) Temperature For the performance issue, use Micro SD card Class 10 or Storage Device above read / write speed 15MB/s recommend.
  • Page 6 (a) 5V cigarette Power adapter (b) RCA output cable (c) Remote controller (d) Product CD (e) Suction cup bracket Accessories (f) Bracket holder (g) Quick user guide (h) USB card reader (i) Micro SD Card (optional) (j) RCA AV cable (optional) (a) GPS positioning speed will be affected by weather, window films, etc.

  • Page 7: Product Dimensions

    D. Product Dimensions UNIT：mm Front Panel Lens Rear Panel Recording Indicator Power Micro SD Card Side Panel DC5V Power Input Enforced Recording Video Out...

  • Page 8: Remote Controller Description

    E. Remote Controller Description Key mapping table for remote controller: Playback Camcorder/camera mode switch Manual Force Recording Volume down Volume up Stop voice Mute Menu Up / Down / Left / Right Confirm Fast Rewind Fast Forward Play Stop Pause / Step...

  • Page 9: Main Menu Operating Description

    F. Main Menu Operating Description Main menu table switch Set 1/3 Set 2/3 Set 3/3 Total three setting pages; click on the settings page, you can ★ conduct more detailed and related setting (For detailed setting, please refer to the settings page instructions). First stage Remote controller keys description Moving menu options [Left/Right Key]...
  • Page 10 Language Setting ◆ ★Support 13 languages: English / French / German / Italian /Japanese / Korean / Portuguese / Russian /Simplified Chinese /Spanish / Traditional Chinese / Turkish / Dutch Date / Time ◆ Menu Options [Up/Down Key] [Left/Right Key]+ Selecting Options [Confirm key]+ [Up/Down Key] Selected the item...
  • Page 11 month / day / hour / minutes / seconds  Press the remote control button, can change the set of year / month / day / hour / minutes / seconds  After setting and then press remote control key to the Select button and then press to confirm saving.
  • Page 12  TV output format: click the remote control button to enter the TV output format settings page.  Press the remote control key, select the video output format of driving recorder. For example: → , after setting up and then press the remote control button to save the settings.
  • Page 13 Microphone Switch ◆ ★ OFF/ON : Microphone off : microphone on  Microphone: press the remote button, into the microphone switch pages.  Press the remote control key can be turned on or off the microphone.  Setup is complete, press the remote control key to store settings.
  • Page 14 : Fluorescent mode : Incandescent mode  White balance, press remote button, into white balance settings page.  Remote control key to select different white balance mode.  Setup is complete, press the remote button to save the setting. ★White balance mode is set, regardless of the state in the camera or photography will open automatically.
  • Page 15 Effects ◆ ★Color / B & W / Retro color  Effects: press the remote button, enter the effects settings page.  Press the remote control button to select the effect model.  Setup is complete, press the remote button to save the settings.
  • Page 16 Sensing sensitivity ◆ ★Caution: You can adjust the sensitivity level (more number of green bars stands for higher sensitivity) ：Low ：Normal ：High ：Highest  Sensor sensitivity: press the button, enter the sensor sensitivity settings page.  Press the remote control key, select the sensor sensitivity level.
  • Page 17  Press the remote control button, choose whether to format.  To confirm the format, press the button to do the Micro SD card format. ★When you click “cancel the format:, it will return to the main Settings page. ★When determining to format the Micro SD card, all data in the Micro SD card will be erased, please back up any old data in advance to avoid old data be erased.
  • Page 18 Camcorder mode setting Remote control keys description Moving menu options [Up/Down Key] Selecting items [Left/Right Key] Selected the item, confirm setting [Confirm key] Enter index, back to previous menu [MENU key] Camcorder mode settings: press the remote control key to enter the camcorder settings page.
  • Page 19  Video Resolution Setting  Camcorder mode settings / image resolution, press remote controller button to enter image resolution setting page.  Press the remote controller key to choose variety of image resolution.  Setup is complete, press the remote controller button to save the settings.
  • Page 20 ◆ Quality Settings ★ more number of green bars stands for higher quality : Low : Normal : High  Set the camcorder mode / quality: press the remote control button to enter the quality settings.  Press the remote control key to select the video quality.
  • Page 21  Camcorder mode settings / G-sensor: press the remote controller button to enter the G-sensor settings.  Press the remote controller button to select the sensitivity of G-sensor.  Setup is complete, press the button to save the settings. ★Note: the higher the sensitivity on behalf of gravity (G) the more sensitive the sensor, the more likely trigger mandatory recording;...
  • Page 22 button on the remote control, you can leave and return to the camera or main setting page. ★Camera mode is total one page; Click Settings page to more detail settings (the detailed settings, see the setting instructions on the settings page). ◆...
  • Page 23 Icon Description Picture 3M: 300 million pixels 5M: 500 million pixels 8M: 800 million pixels ★When the higher image resolution, the greater the amount of data stored in the file. ◆ Capture mode setting NOR: Normal mode G-S: G-Sensor mode with three pictures once ...
  • Page 24 ★When the capture mode NOR selected, to set capture picture time from the camera cycle option.  Camera Period Setting  Camera mode / capture period: press the remote control buttonto enter the settings page to set the period setting. ...
  • Page 25  Camera mode / G-sensor, press the remote control button to enter the page to set the G-sensor.  Press the remote control button to set the sensitivity of G-sensor.  Setup is complete, press the remote button to save the settings.

  • Page 26: Play The Recorded File

    G. Play The Recorded File Direct playback on machine side  Camcorder mode Play back file screen File selecting screen Multi-files selecting screen  Press button on remote controller under LIVE recording mode to enter file playback menu.  Press button to adjust before and after clips.
  • Page 27  For playback file setting, press button to enter setup page, press button to move to delete one item, then press enter into deleting page.  Use button moving to the file you want to delete, and then press to start deleting. ★You must disable the protection function first in order to process the deleting procedures.
  • Page 28 button to move to protect item, then press enter into protect setting page.  Use button moving to you want to protect file, then press to start protect setting.  Camera Mode  Under camera mode, press button entering into photo playback page.
  • Page 29 ◆ Photo playback settings-Delete one  Photo play setting, press button entering into setting page.  Press button moving to delete one item. Then press button to enter delete page.  Press button to select the file you want to delete. Then press button to start deleting.
  • Page 30 ◆ Photo playback settings-protect  Photo playback settings, press button enter setup page.  Press button to move to protect item, then press enter into protect setting page.  Use button moving to you want to protect file, then press to start protect setting.

  • Page 31: Software Operating Instruction

    Software Operating Instruction 1. Remove Micro SD card from card slot of host side 2. Put the Micro SD card to the card reader 3. Connect card reader to the USB port of PC side 4. Choose the file to play: Execute “TransportStream.exe” , which is located in the product CD folder, Screen shown as below.
  • Page 32 1. Operating Interface Description Return to previous function Forward Playback Playback Key Pause Key Stop Key Play Key Backward Playback Go To Next File Flag to mark starting point of backup file Flag to mark ending point of back up file Back up the marking file Playback, Open file, select files to play Back up the current file...
  • Page 33 X: Induct about level of vehicles moving Y: Induct around level of vehicles moving Z: Induct Height fluctuation around level of vehicles moving  Play BAR Press left button of mouse and move around to pull BAR with fast-moving.  Driving Speed ...
  • Page 34  Select the file to playback Select “ Open the document” , and then choose the file of memory card or hard disc. (The file format is *.ts)  Save the playing file Select “Save the playing file” , and then choose the file of memory card or hard disc.
  • Page 35  Google Map Click and then appear the window of Google Map to view the tracking of Vehicle. (This function needs to connect Internet.)
  • Page 36  Configuration Setting Announce related information of software version and data storage setting of Micro SD card (a) Version: Current Display Version (b) Path of snapshoot: store location of PC client (c) Picture Type: save picture type as bmp or jpg format (d) Continuous snapshoot: Default value is zero, can set continuous screen images capturing.
  • Page 37 Micro SD card Setting  There will have default value before the device complete. Setting up Micro SD card or external monitor connecting can revise default value of this device. (a) Micro SD card: Select the slot of Micro SD card ...
  • Page 38  REC_G-Sensor_SEN: Default as “Level 3”  Speed Unit: Default as “Km/h” (c) Record: Set up record items of the device  Resolution: 1920x1080P@ 30 fps (Default), 1280x720P@60/30 fps  G-Sensor: Default as “the third level”  Record Quality: Good (Default) , Normal, Best (d) Camera: Setting snapshoot items ...

  • Page 39: Formatting The Memory Card

    After select the "Date" with Gray-brown color, on Hour/Minutes table will display Red/Green color. Green: normal record Red: force record 3.Quick switching by minutes Click the minutes table to change the recording footage immediately. Formatting the Memory Card Q. When will you need to format the Micro SD card? Ans: Please format a new Micro SD card and start to record after installation into the video recorder.
  • Page 40 1. Select the Disc from “My Computer” and mouse click right side for memory card format. 2. Please mind the file system as “FAT32” while formatted.
  • Page 41 3. After format process, the Micro SD card can be used to record in vehicle video recorder directly. Way 2. Format the Micro SD card by OSD screen of this device 1. Connect power cable to the device, insert the Micro SD card into the slot and select format item from OSD screen by remote controller.

  • Page 42: Installation Of Micro Sd Card

    J. Installation of Micro SD Card Install the Micro SD card into the device before record started. Procedures for installation of Micro SD card as below: 1. Insert the Micro SD card into the slot, please mind the install direction. 2.
