- Page 1 WARNING: Read these instructions before using the machine CORDLESS ROTARY TOOL KIT MODEL NO: CCRT266 PART NO: 6461901 OPERATION & MAINTENANCE INSTRUCTIONS LS0911...
-
Page 2: Specifications
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED BELOW REFERS TO YOUR BATTERY OPERATED (CORDLESS) POWER TOOL. WORK AREA 1. - Page 4 5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. 6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
-
Page 5: Additional Safety Instructions For Rotary Tools
ADDITIONAL SAFETY INSTRUCTIONS FOR ROTARY TOOLS 1. Only use accessories supplied for use with this tool. 2. Never use worn or cracked accessories. 3. Hold the tool away from your face when switching on. 4. Keep your fingers away from rotating accessories. 5. - Page 6 17. Ensure that sparks resulting from use do not create a hazard e.g. do not hit persons, or ignite flammable substances. 18. Ensure ventilation openings are kept clear when working in dusty conditions. If it should become necessary to clear dust, first disconnect the battery from the rotary tool.
-
Page 7: Notes On Charging
THE BATTERY NOTES ON CHARGING • During use, the battery pack may become warm. Allow it to cool before recharging. • Never store the battery pack when it is discharged, recharge it fully before storage. TO REMOVE THE BATTERY • Press either side of the battery and pull it out of the rotary tool. -
Page 8: Before Use
INSERTING THE BATTERY 1. Align the battery with the base of the handle and slide it into the locating clip. • Make sure that the battery pack is fully located and clicks into place. BEFORE USE FITTING DISCS & GRINDING STONES TO THE MANDREL Mount the selected disc on to the mandrel as shown, ensuring the two washers are in place. -
Page 9: Fitting A Collet
FITTING A COLLET WARNING: MAKE SURE THAT THE BATTERY HAS BEEN REMOVED FROM THE ROTARY TOOL BEFORE REMOVING, OR FITTING A COLLET OR ACCESSORY The rotary tool is supplied with 4 interchangeable collets; 0.8mm - 1.6mm - 2.4mm and 3.2mm (fitted to the rotary tool). Select the collet to be fitted according to the shaft size of the mandrel or accessory to be used. -
Page 10: Fitting An Accessory
FITTING AN ACCESSORY IMPORTANT: Ensure the tool is switched OFF TO FIT AN ACCESSORY, PROCEED AS FOLLOWS. 1. Make sure that the correct size collet has been fitted. 2. Press and hold down the spindle lock. • It may be necessary to rotate the chuck to fully engage the spindle lock. -
Page 11: Operating The Rotary Tool
OPERATING INSTRUCTIONS OPERATING THE ROTARY TOOL WARNING: BEFORE OPERATING THE ON/OFF SWITCH, MAKE SURE THAT THE COLLET AND ACCESSORIES HAVE BEEN CORRECTLY AND SECURELY FITTED. 1. To switch the rotary tool on, rotate the speed control away from 0. 2. Select a suitable speed using the speed controller. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING: MAKE SURE THAT THE BATTERY HAS BEEN REMOVED FROM THE ROTARY TOOL BEFORE STARTING ANY CLEANING, OR MAINTENANCE PROCEDURES. • After use, thoroughly clean all excess chippings and dust from the rotary tool, taking special care to clean the cooling vents. •... -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List

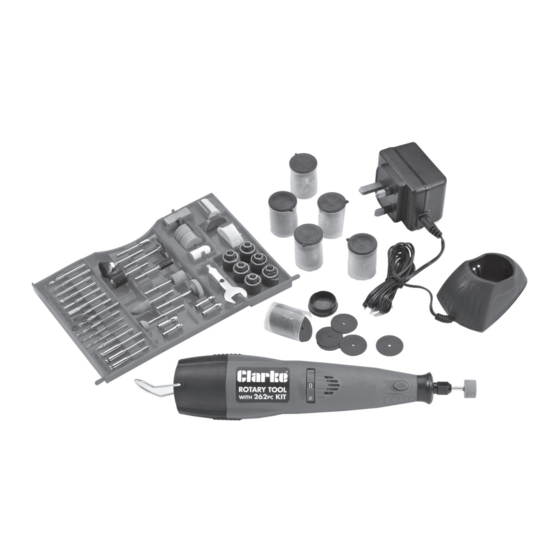

PARTS LIST Part Part number Part Part number 1 x Cordless Grinder ETCCRT26601 3x Aluminium oxide grinding ETCCRT26613 wheel with shank 1 x Charger Base ETCCRT26602 2 x Silicon carbide grinding ETCCRT26614 wheel with shank 1 x Adaptor 12V AC ETCCRT26603 6 x Diamond wheel points ETCCRT26615... - Page 15 For heavier duty work you may be interested in our mains powered rotary tool set Model number CRT40. Also available is our CRT100A- 100pc Accessory Kit for CRT40 This is available from you Clarke dealer Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
