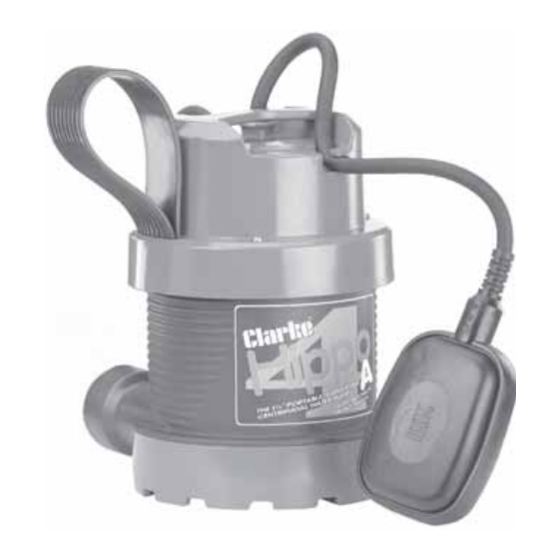

CLEAN WATER PUMP
CLEAN WATER PUMP
MODEL No: Hippo4A
Part No: 7230535
OPERATION & MAINTENANCE
INSTRUCTIONS
0807

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hippo4A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke Hippo4A

  • Page 1 CLEAN WATER PUMP CLEAN WATER PUMP MODEL No: Hippo4A Part No: 7230535 OPERATION & MAINTENANCE INSTRUCTIONS 0807...
  • Page 2: Table Of Contents

    INTRODUCTION • Thank you for purchasing this CLARKE clean water pump. • This highly efficient pump is designed for pumping clean water only, and is ideal for draining ornamental ponds, swimming pools etc. GUARANTEE • This product is guaranteed against faulty manufacture for a period of 12 months.
  • Page 3: Specifications

    SPECIFICATIONS t t i ” 4 * Duty Cycle = 2 hours on, followed by 1 hour off.
  • Page 4: For Your Own Safety

    FOR YOUR OWN SAFETY KEEP CHILDREN AWAY • Do not allow children to touch the pump, cables or connections. USE A RESIDUAL CURRENT DEVICE: • The pump must be connected to a high sensitivity residual current device (RCD) which has a tripping current of less than 30mA. STORAGE •...
  • Page 5: Electrical Connections

    ELECTRICAL CONNECTIONS Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. WARNING! THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green &...
  • Page 6 RECOMMENDED USES The recommended uses for this pump are: • Drainage after flooding • The transfer of liquids • Drainage of containers • Taking water from wells and shafts Liquids that CAN be pumped: • Clean water • Contaminated water (maximum particle size 5 mm) •...
  • Page 7: Parts Identification

    PARTS IDENTIFICATION Handle Pump Float Base Switch May be supplied fitted to the pump 1/2” 3/4” 1” Elbow Multi Hose Adaptor...
  • Page 8: Preparation

    The pump is completely submersible, and should be placed in a vertical position, on a solid flat surface, Placing the pump on a couple of house bricks if required. SUITABLE HOSES, and SPARE/REPLACEMENT MULTI HOSE ADAPTERS ARE AVAILABLE FROM YOUR CLARKE DEALER...
  • Page 9: Using The Pump

    USING THE PUMP CAUTION! CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS DAMAGED IN ANY WAY Place the pump on a flat surface in the area that you want to drain. • If there is sediment in the operating area, the pump should be placed on house bricks, or similar.
  • Page 10: Cleaning And Maintenance

    BEFORE CLEANING, OR PERFORMING ANY MAINTENANCE. • These pumps should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. • Do not attempt to repair the pump yourself, repairs must be carried out by your CLARKE dealer, or contact the CLARKE Service Department, on 020 8988 7400.
  • Page 11: Troubleshooting

    , s t e l l PARTS & SERVICE CONTACTS For spare parts and service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 or e-mail as follows: PARTS: parts@clarkeinternational.com...
