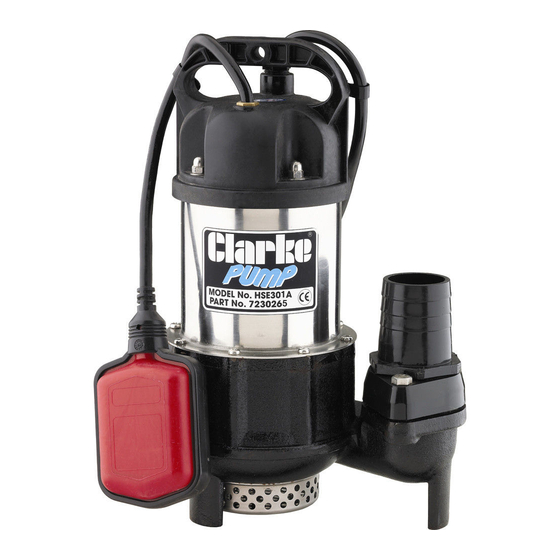

- Page 1 SUBMERSIBLE PUMPS HSE RANGE OPERATING & MAINTENANCE INSTRUCTIONS GC0514...
-
Page 2: Introduction
INTRODUCTION Thank you for purchasing this CLARKE submersible pump. Before attempting to use the pump, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to the submersible pump giving you long and satisfactory service. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................. 2 GUARANTEE ..................2 ENVIRONMENTAL PROTECTION ............2 SPARES & SERVICING CONTACTS ............2 TABLE OF CONTENTS ................3 PUMP SAFETY INSTRUCTIONS ............. 4 ELECTRICAL CONNECTIONS .............. 5 OVERVIEW ..................7 OPERATION ..................9 CLEANING & MAINTENANCE ............. 11 FAULT FINDING .................. -
Page 4: Pump Safety Instructions
PUMP SAFETY INSTRUCTIONS 1. Only use the pump in the manner and for the functions described in these instructions. 2. These pumps are designed to pump water only. Never use for pumping flammable liquids or corrosive chemicals of any kind. 3. -
Page 5: Electrical Connections
18. Always use an approved cable extension suitable for the power rating of this pump (see specifications), the conductor size should also be at least the same size as that on the pump, or larger. When using a cable reel, always unwind the cable completely. - Page 6 FUSE RATING The fuse in the plug for this appliance must be rated according to the Technical Specification on page 16. If this product is fitted with a plug which is moulded onto the electrical cable (i.e. non-rewirable) please note: 1.
-
Page 7: Overview
STRAINER PROTECTED INLET The CLARKE HSE range of submersible pumps are of rugged and durable construction, designed for long lasting continuous operation. They are suitable for discharging pools, ponds, fountains, pits and any waste water drainage. They can handle foul water containing sewage or other... - Page 8 As the water level rises, the switch will float and start the pump. As the water level falls, so will the float switch, until it stops the pump. Float switches are factory set to provide the correct ON-OFF switching mode. •...
-
Page 9: Operation
Note: When the pump is being used in a permanent or semi-permanent installation, a check valve must be fitted in the delivery hose. Suitable hoses are available from your Clarke dealer. USING THE PUMP 1. Take all necessary precautions as described on page 4 before plugging in the pump and switching ON. - Page 10 (at least 5 minutes) before attempting to restart, by which time the cut-out will have reset. ACCESSORIES A wide range of accessories is available from your nearest CLARKE dealer, for further information, contact your nearest dealer, or telephone CLARKE International Sales department on 01992 565300.
-
Page 11: Cleaning & Maintenance
The oil must be cleared to prevent any possible harm to pond life. Disconnect the pump from the electrical supply, remove it from the pond and clear the oil, then contact your CLARKE dealer for advice. -
Page 12: Fault Finding
FAULT FINDING & t I ( . ) r f i ( t i f e l l f i ( l l e y l l y l l & - r i i t l v i l l n I t t i t i s... -
Page 13: Parts Lists & Spares Diagrams
PARTS LIST & DIAGRAM HSE130... - Page 14 PARTS LIST & DIAGRAM:- HSE200/300/301/360 HSE200 HSE300 HSE301 HSE360 HSE361 Top Cover HG20001 HG30001 HG30101 HG36001 HG36101 Upper Bearing HG20002 HG30002 HG30102 HG36002 HG36102 Motor Housing HG20003 HG30003 HG30103 HG36003 HG36103 Shaft HG20004 HG30004 HG30104 HG36004 HG36104 Stator HG20005 HG30005 HG30105 HG36005 HG36105...
- Page 15 PARTS LIST & DIAGRAM:- HSEC650A/651A...
-
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS " 4 " 2 " 2 " 2 " 2 & s l i &... -
Page 17: Declarations Of Conformity
DECLARATION OF CONFORMITY... - Page 18 DECLARATION OF CONFORMITY...
- Page 19 DECLARATION OF CONFORMITY...
