Nady Systems VR-3U Owner's Manual page 6

Quick User Controls Guide
uB-3 Bodypack Transmitter (lT/HM)
34
35

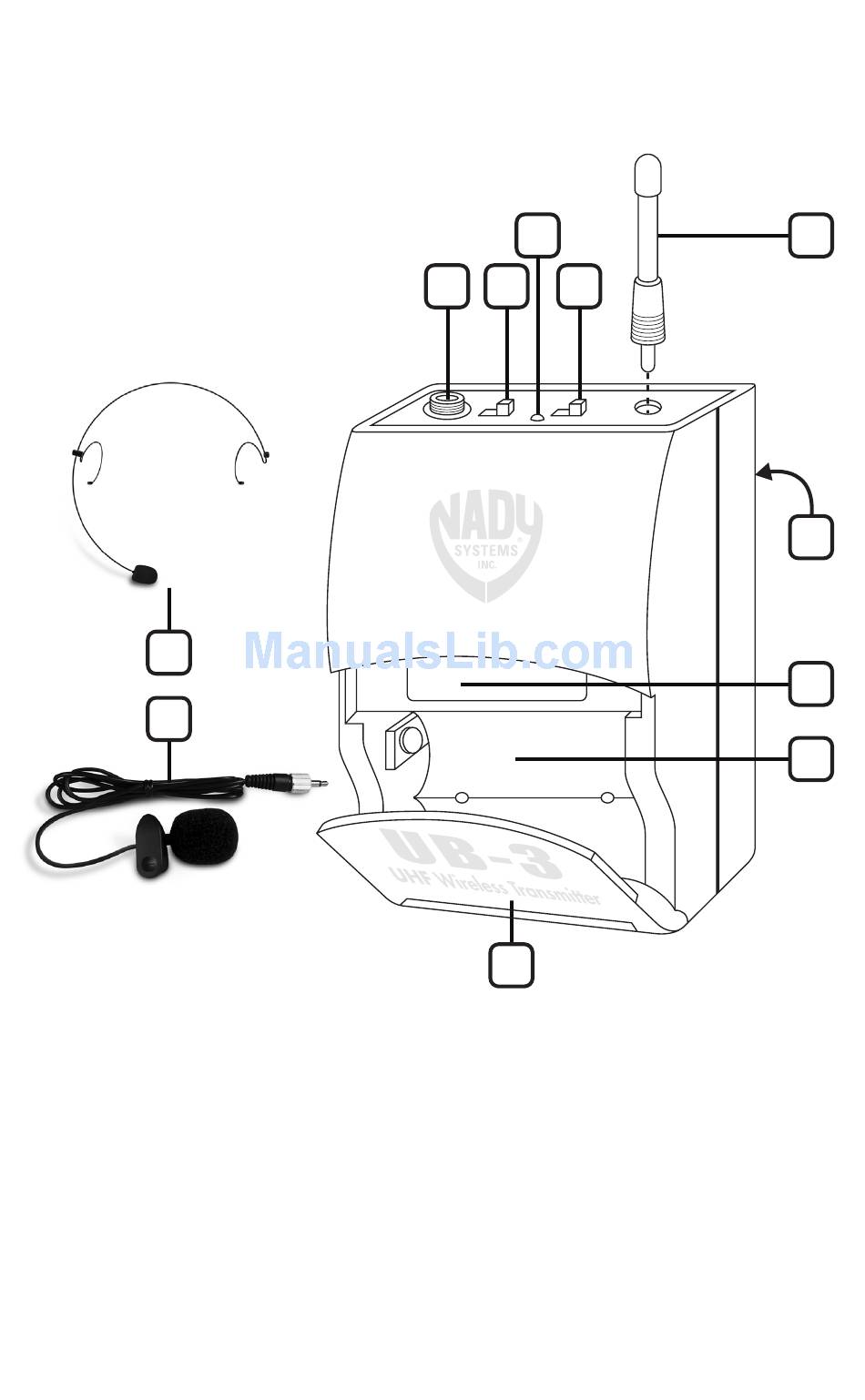

23. LATCHING BATTERY DOOR Open to
insert two AA alkaline batteries
24. BATTERY COMPARTMENT Holds two
AA alkaline batteries
25. INPUT VOLUME User adjustable input
level trim-pot
26. INPUT JACK Locking 3.5mm mini jack
for connecting audio input cord from
(HM) HeadMic (34) or (lT) lapel Mic (35)
™
27. AUDIO MUTE/ON Slide switch to turn audio
on/off; set to On to un- mute audio
6
28
26 27 29
23
28. POWER ON/LOW BATTERY LED (Green) Indicates
TX is ON; (Orange) indicates Low-Battery
29. ON/OFF SWITCH Power switch to turn
transmitter on/off
30. ANTENNA Removable antenna
33. BELT CLIP Removable clip (on back of unit)
can be set to point top of transmitter either
up or down
34. HEADMIC
Head worn microphone (HM)
™
35. LAVALIER/LAPEL MIC Pendant worn
microphone (LT)
