Summary of Contents for Nady Systems XR-61

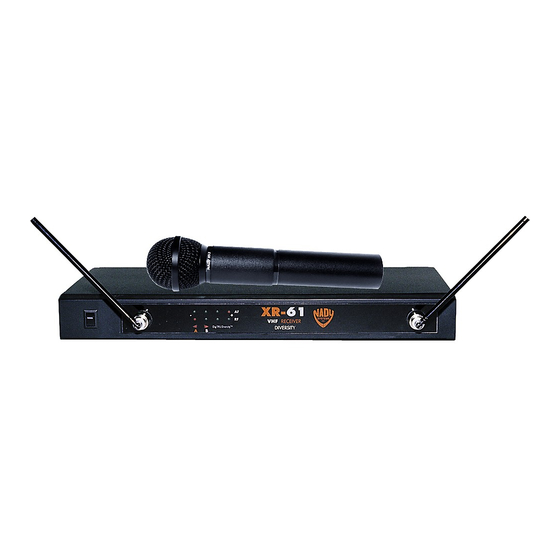

- Page 1 NADY XR-61 VHF DigiTRU Diversity™ System XR PRO SERIES WIRELESS MICROPHONE SYSTEM OWNER’S MANUAL...
-
Page 2: Table Of Contents
SERVICE ....................18 This manual will first list the features of the XR-61 Pro Series System and then will take you step by step in explaining how to operate your new system. After reading the receiver instructions, turn to the section of the booklet that covers the type of transmitter used with your new system. -
Page 3: System Features
1. Rackmounting the Receiver Dynamic Range, and the clearest, most natural sound available The XR-61 receiver is supplied with RACK EARS (1) which can be attached with the screws • Operating Range: Up to 250 feet typical (depending on site conditions)-up provided on the front of the side panels to enable rackmounting the receiver. - Page 4 5. Connecting the Audio Output The XR-61 receiver provides both a fixed mic level BALANCED AUDIO OUTPUT XLR (10) and an adjustable line level UNBALANCED AUDIO OUTPUT 1/4” JACK (11). The level from the UNBALANCED OUTPUT is controlled by the rear panel VOLUME CONTROL (12).
-
Page 5: Wht-15 Handheld Microphone Transmitter
Microphone Connection section of the above XR-61 receiver instructions. The AF LEVEL LED DISPLAY (13) on the XR-61 receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during use of the top red LED indicator in this display is normal, however if the red LED stays on continuously, it means the signal is too loud and there is the possibility of overload distortion. -
Page 6: Wlt-15 Lavalier/Lapel Or Headworn Microphone Bodypack Transmitter
Microphone Connection section of the above XR-61 receiver instructions. The AF LEVEL LED DISPLAY (13) on the XR-61 receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional flickering on and off during use of the top red LED indicator in this display is normal, however if the red LED stays on continuously, it means the signal is too loud and there is the possibility of overload distortion. -
Page 7: Wgt-15 Instrument Bodypack Transmitter
3. The WGT-15 transmitter is now ready to use. The A and/or B DIVERSITY LED INDICA- TORS (8) and most or all of the RF DISPLAY LEDs (9) on the XR-61 receiver should now be lit, indicating a received signal from the transmitter. Adjust the volume of the receiver as per the Audio Output Instrument Connections section of the above XR-61 receiver instructions. -
Page 8: Link 2™ Plug-In Transmitter
DISPLAY (13) on the XR-61 receiver will light up to 5 LEDs (4 green and 1 red) for all • Step 5 - To release the XLR CONNECTOR, turn the threaded LOCKING RING clock input signals. -
Page 9: Specifications
Up to 250 ft. typical (depending on site conditions); up to 500+ feet optimum line-of-sight TRANSMITTERS Audio Inputs • WHT-15 Nady DM-10D neodymium dynamic cartridge • WLT-15/WGT-15 3.5mm mono locking jack for connecting to omni or unidirectional lavalier mic or unidirectional headworn mic, with phantom power (WLT-15);... -
Page 10: Service
SERVICE (U.S.) Should your Nady XR-61 Pro Series Wireless Microphone System require service, please contact the Nady Service Department via telephone at (510) 652-2411 or e-mail to service@nadywireless.com for a Return Authorization (R/A) Number and a service quote (if out of warranty). Make sure the R/A Number is clearly marked on the outside of the pack- age and enclose a cashier's check or money order (if not prepaid with a credit card).
