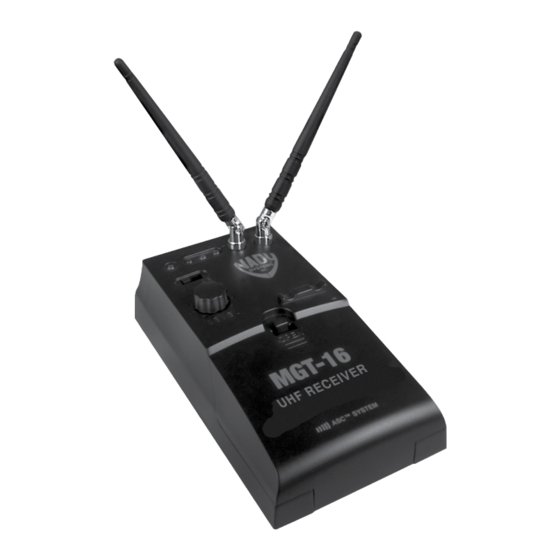

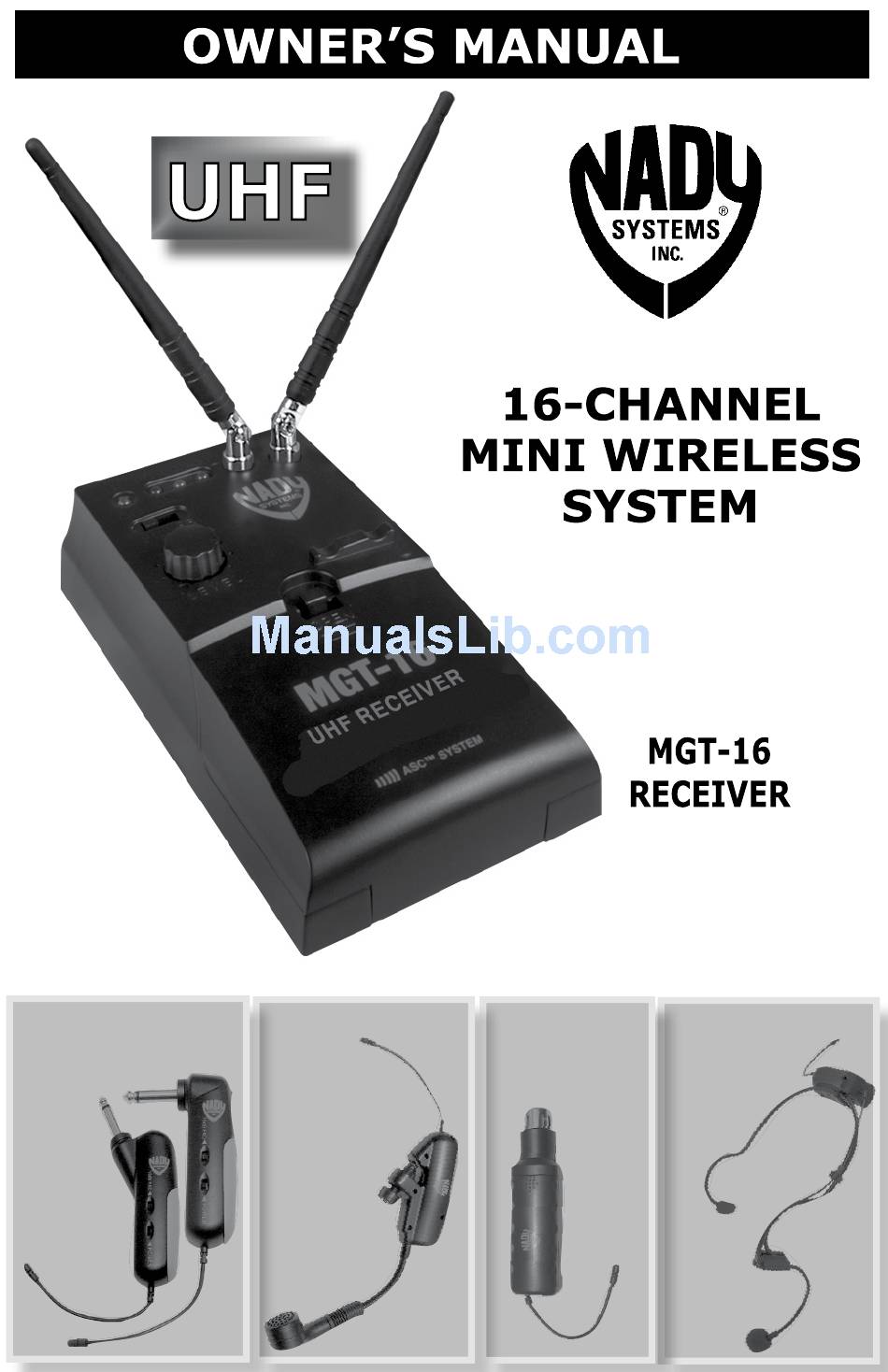

- Page 1 Instructions for use with any of these transmitters LINK-16 SYSTEM MGT-16 SYSTEM MHT-16 SYSTEM WHM-16 SYSTEM WH-16 MH-16 LK-16 MT-16A MT-16R...
-
Page 2: Table Of Contents
The “pedal-style” receiver can be placed anywhere. Using This Manual This booklet provides information regarding the use of the MGT-16, MHT- 16, LINK-16 or WHM-16 Wireless System with the MGT-16 receiver and one of the following transmitters: MT-16A/R, MH-16, LK-16 or WH-16. It includes a description of features and a step-by-step guide to operation of the particular system you have purchased. -
Page 3: System Features (Mgt-16/Mht-16/Link-16/Whm-16)
• ASC (Auto Sync Channel) infrared wireless download pairs transmitters to selected receiver frequency for quick, easy setup MGT-16 Instrument Receiver • Compact, portable, “pedal style” receiver can be placed anywhere • Dual ¼ wave antennas • Unbalanced ¼” line output plug •... -
Page 4: Quick User Controls/Connections Guide
Quick User Controls/Connections Guide MGT-16 Receiver... - Page 5 IR window 6-12” away from the MGT-16’s IR WINDOW (1), press the SYNC button once and wait one second for the transmitter to respond. If the IR data download is successful, the receiver SIGNAL LED (10) will light, indicating the transmitter is locked in and transmitting.
-
Page 6: Mt-16A/R Instrument Transmitter
Quick MGT-16 User Controls/Connections Guide MT-16A/R Instrument Transmitter 17. POWER SWITCH Slide in arrow direction to power transmitter On 18. 15dB ATTENUATION PAD Select to reduce the input gain by 15dB for higher level audio input signals 19. INPUT ¼” PLUG Connect directly intoguitar/bass output jack 20. -
Page 7: Horn Instrument Transmitter
Quick MHT-16 User Controls/Connections Guide MH-16 Saxophone (Horn) Instrument Transmitter 28. BATTERY COMPARTMENT COVER To cover AAA battery, slide to open 29. BATTERY Single AAA alkaline or NiMH battery required for operation 30. BATTERY COMPARTMENT Insert one AAA battery, observing correct polarity 31. -
Page 8: Snap-On Transmitter
QUICK LINK-16 SYSTEM USER CONTROLS/CONNECTIONS GUIDE LK-16 Snap-On Transmitter 39. XLR LOCKING CLIP To lock the hardwired microphone securely 40. POWER SWITCH Slide in arrow direction to power transmitter On 41. BATTERY COMPARTMENT COVER To cover AAA battery, slide to open 42. -
Page 9: Head-Worn Transmitter
QUICK WHM-16 USER CONTROLS/CONNECTORS GUIDE WH-16 Head-Worn Transmitter 48. POWER SWITCH Slide in arrow direction to power transmitter On 49. POWER & LOW BATTERY LED Flashes once at power up, continuous flashing indicates battery needs replacement 50. BATTERY COMPARTMENT Insert one AAA battery, observing correct polarity 51. -
Page 10: System Operation
(8) on the top side of the receiver , then plug the adapter into an AC outlet. AC operation of the MGT-16 receiver is the same as Selecting the MGT-16 Receiver DC operation except that the Low Battery Indicator Channel and IR Sync is inactive when the AC adapter is connected. - Page 11 The IR Sync Button (14) on the MGT-16 on or properly positioned) the receiver receiver is used to transfer the selected and the transmitter units do not link and frequency info from the receiver to the transmitter’s previously programmed transmitter for quick synchronization prior channel remains unchanged.
-
Page 12: Mt-16A/R, Mh-16, Lk-16, Wh-16 Transmitters
SYSTEM OPERATION MT-16A/R, MH-16, LK-16, or WH-16 Transmitter Note: The transmitter referred to below is The transmitters (MT-16A/R, MH-16 only) one of the following: MT-16A/R, MH-16, have a 15dB Pad (18) switch which can LK-16 or WH-16, as provided with your be selected to attenuate high output from system. - Page 13 IR Sync Window (1) on the receiver (see for unity gain (one-to- one) with a hard- Selecting the MGT-16 Receiver wired cord. Or, (MT-16A/R, MH-16 only) Channel and IR Sync on page 10). select up to an added 4-5dB boost by...
-
Page 14: Miscellaneous Tips
Miscellaneous Tips • The receiver antennas should be kept away from any metal surfaces whenever possible as they can reflect away or shield the incoming RF signal. • When inserting batteries, make sure they are inserted with the correct polarity. •... -
Page 15: Cautions And Troubleshooting
RF channel. Make sure that the Power Switch (2) on the MGT-16 receiver is not in the second position (audio muted/attenuated). The receiver’s Audio Output (7) is adjustable, so make sure the Volume Control (3) is set properly. -
Page 16: Mgt-16 System Dip-Switch Frequency Selection Chart
MGT-16 DIP-Switch Frequency Selection Chart Frequency Plan: 902.4MHz-923.7MHz (16 Channels) U.S. -
Page 17: Specifications
SPECIFICATIONS MGT-16 System Frequency Response 50Hz–16kHz (-3dB) Dynamic Range 120dB Oscillating System Phase Lock Loop (PLL) Total Harmonic Distortion (THD) <0.8% RF Carrier Frequency Range 902.40MHz–923.70MHz Modulation FM (F3E), +/-30KHz normal Operating Range Up to 250 feet (typical, depending on site conditions) -
Page 18: Servicing
(RA) number. Make sure the RA number is clearly marked on the outside of the package. If unit is past the One Year Warranty, The Nady Service Department will provide a quote for service or replacement. - Page 19 This warranty does not cover finish or appearance items nor items damaged in shipment en route to Nady Systems, Inc. for repair. You must include proof of date and place of purchase (i.e., photocopy of your bill of sale) or we cannot be responsible for repairs or replacement.
- Page 20 6701 Shellmound Street | Emeryville, CA USA 94608 T 510.652.2411 | F 510.652.5075...
