NTI RACKMUX-V15/17 RACKMOUNT LCD MONITOR WITH KEYBOARD AND MOUSE
NTI
NETWORK
TECHNOLOGIES
INCORPORATED
1275 Danner Dr Tel:330-562-7070
Aurora, OH 44202 Fax:330-562-1999
www.networktechinc.com
When connecting a CPU with DVI support to the single-link DVI port of the RACKMUX, use a DVI-D-6 (supplied) for the DVI video
signal, a USB-AB-2M (supplied) for the USB connection, and if using PS/2 keyboard and mouse connections, connect a
VVKINT-6-MM cable (supplied) between the CPU and RACKMUX.
DVI-D-Male
DVI-D-Male
USB Type A
USB-A - Male
Male
6 miniDIN Male
6 miniDIN-Male
Purple-Keyboard
6 miniDIN-Male
Green-Mouse
REAR VIEW OF RACKMUX-V17
USB Type B Male
USB-AB-2M
(supplied)
VEXT-6-MM
(supplied)
Video Connector

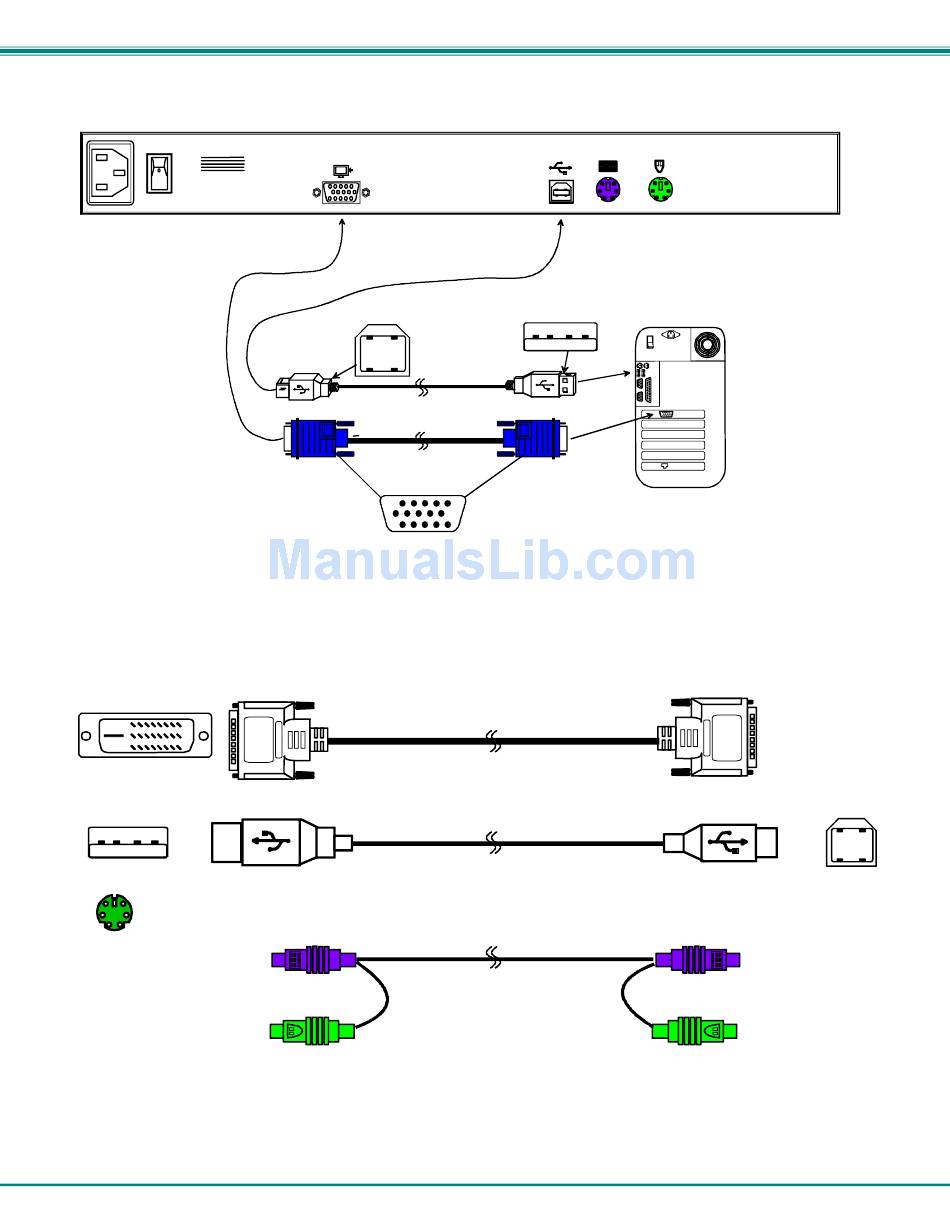

Figure 5- Connect a USB CPU

DVI-D-6
(supplied)
(3 and 9 foot cables also available)
USB-AB-2M
(supplied)
(.5, 1, 3, and 5 meter cables also available)
VVKINT-6-MM
(supplied)
(3,10, 15,25, 35, and 50 foot
lengths also available)

Figure 6- Cables used for RACKMUX with DVI video support

5
USB Type A Male
USB CPU
15HD Male
DVI-D-Male
USB Type B
Male
USB-B - Male
6 miniDIN-Male
Purple-Keyboard
6 miniDIN-Male
Green-Mouse
