NTI RACKMUX-V15/17 RACKMOUNT LCD MONITOR WITH KEYBOARD AND MOUSE
DC POWER OPTION
If the RACKMUX has been ordered with the DC Power option ("48V" at the end of the model number), a 3-terminal block has
been provided for connection to a 36-72VDC 2A power source.
protective bracket to make connections. Proper connections are indicated.
Note: Be sure to properly secure the terminal block to the RACKMUX after wire insertion.
An earth ground terminal has been provided for optional use.
protective bracket
Earth ground connection
Remove screws to remove
terminal block
Remove screws
to remove
terminal block
REAR VIEW OF RACKMUX-V1748V
36-72VDC
CAUTION: RISK OF ELECTRIC SHOCK
36-72VDC PRESENT ON DC POWER INPUT

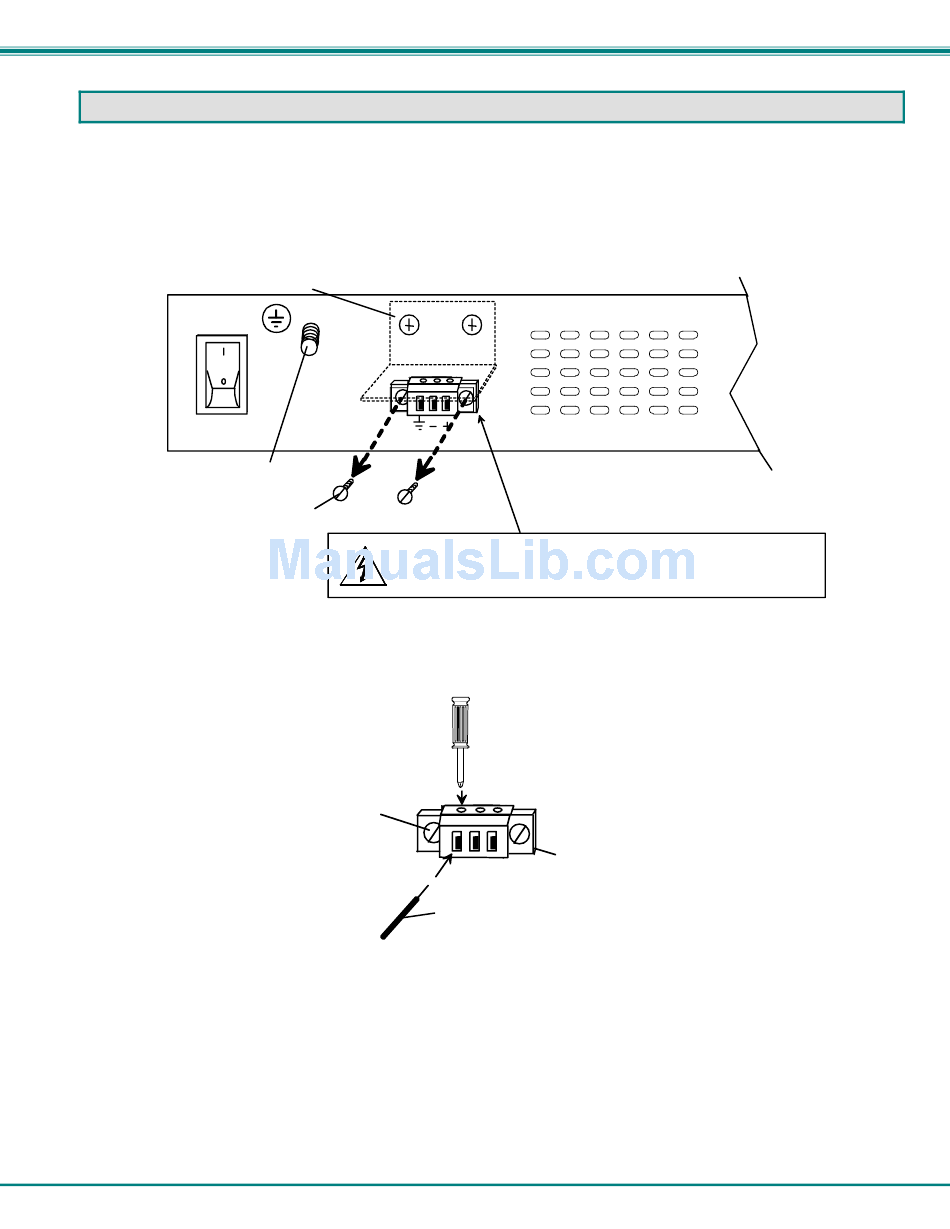

Figure 15- RACKMUX with DC Power option
Power supply
ground
Figure 16- Apply wires to terminal block
The terminal block can be easily removed from under the
Phillips
screwdriver
terminal block
