APPENDIX A - ACCESSORIES AND SPARE PARTS
A.1.2 Data and power supply cables kit

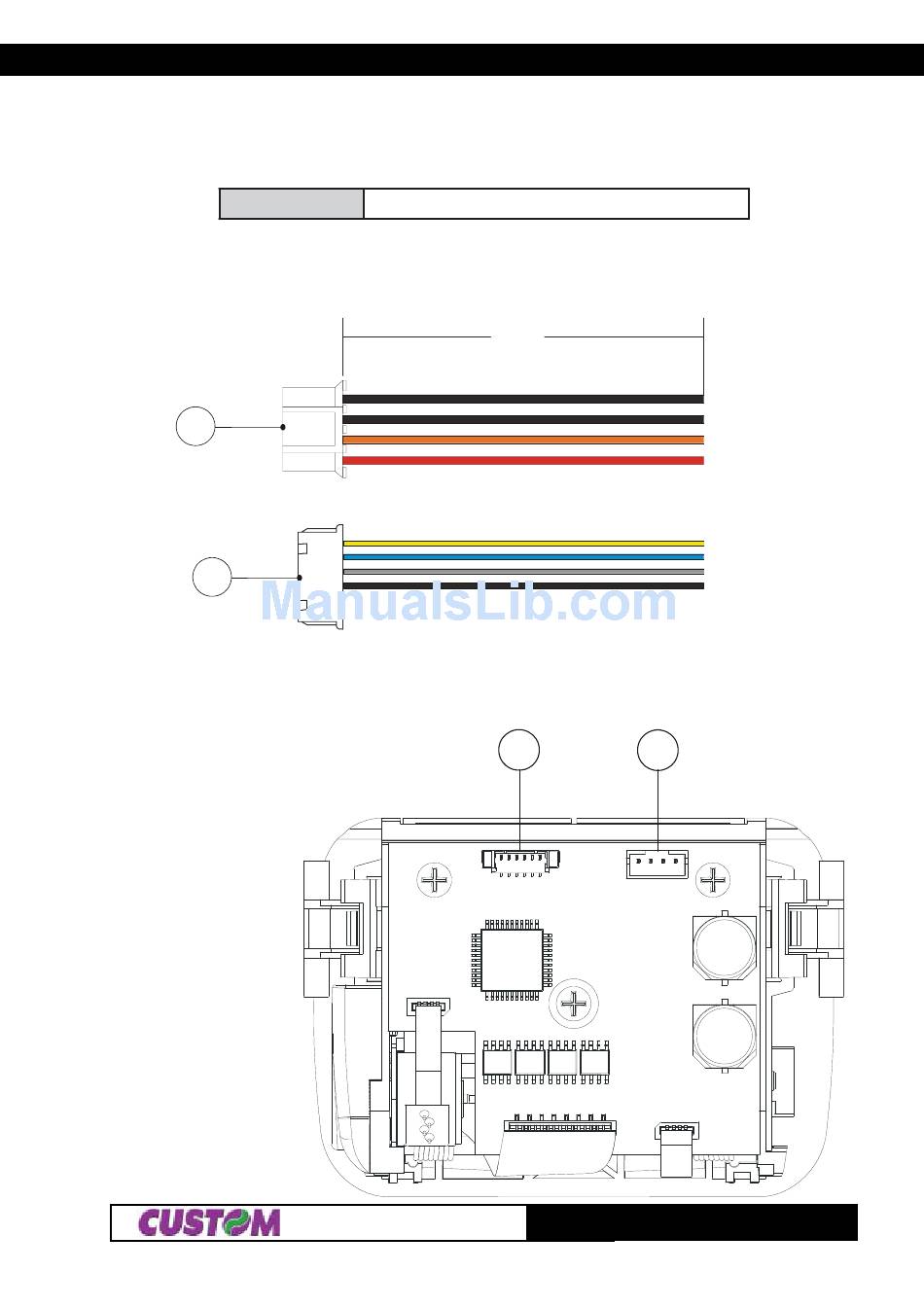

The printer can be supplied with a data and power supply cable starter kit ( see picture A.2)
P C S K
The kit includes (see picture A.2)
- power supply cable (1);
- data cable for serial interface (2).
1
2
To the cable connections see picture A.3;
- link the power supply cable (1) to the
power supply (1) connector of the printer.;
- link the data serial interface cable (2) to the
interface connector (2) of the printer.
P L U S
A- 3
S a t t r r e K t i c a b e l s
500 mm
2
1
Mini PLUS
(Fig.A.2)
(Fig.A.3)
