Sitecom Wireless Router User Manual page 67

To Configure IPX Settings(Optioanl)
Note:
on the ARM Customization screen, the IPX feature key have to be installed
previously.
Step 1
Configuration - Advanced Features - IPX:
Step 2
Step 3
The IPX Routing Table
The IPX routing table contains all the information that the Wireless Router needs to
route an IPX data packet. You can view the IPX routing table by clicking on the IPX

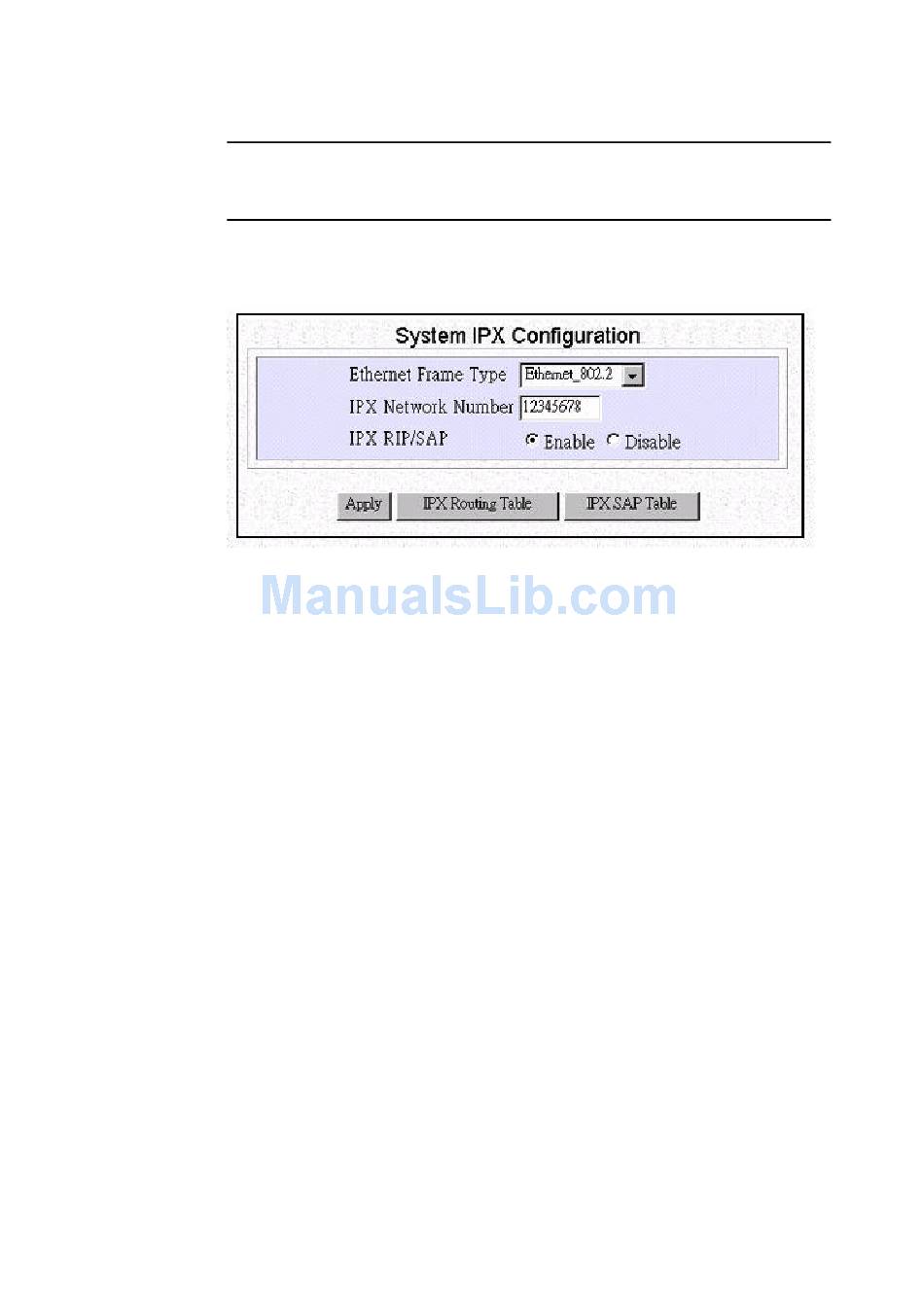

Routing Table button at the bottom of the System IPX Configuration screen. From
this screen, you can also add new routing entries to the table. The following screen
IPX options appear only if you selected Share NetWare (IPX) Resource
To select IPX Protocol, select IPX from the Menu:
Enter the following information:
Ethernet Frame Type: the Ethernet frame type on the LAN, normally
detected automatically by the Wireless Router, however you may change
this selection. Options are Ethernet_802.3, Ethernet_802.2, Ethernet_II,
and Ethernet_SNAP.
Network Number: a unique identifier for the IPX network on your LAN.
Normally, this is automatically detected by the Wireless Router.
IPX RIP/SAP: enables or disables IPX Routing Information Protocol and
Service Advertising Protocol, used for exchanging routing tables and
server information among IPX RIP/SAP agents.
Press APPLY to save the changes to the Wireless Router, or press IPX
Routing Table to display or modify the IP Routing Table or press IPX
SAP Table to display or modify the IPX SAP Table.
4-23
