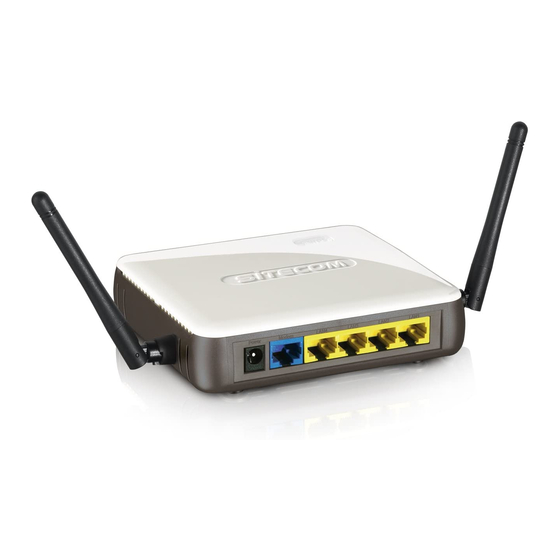

Sitecom WL-366 User Manual

Wireless broadband router (802.11b/g/n)
Hide thumbs Also See for WL-366:
Table of Contents

Advertisement

Quick Links

See also: User Manual
WL-366
Wireless Broadband Router
(802.11b/g/n)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-366 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sitecom WL-366

Summary of Contents for Sitecom WL-366

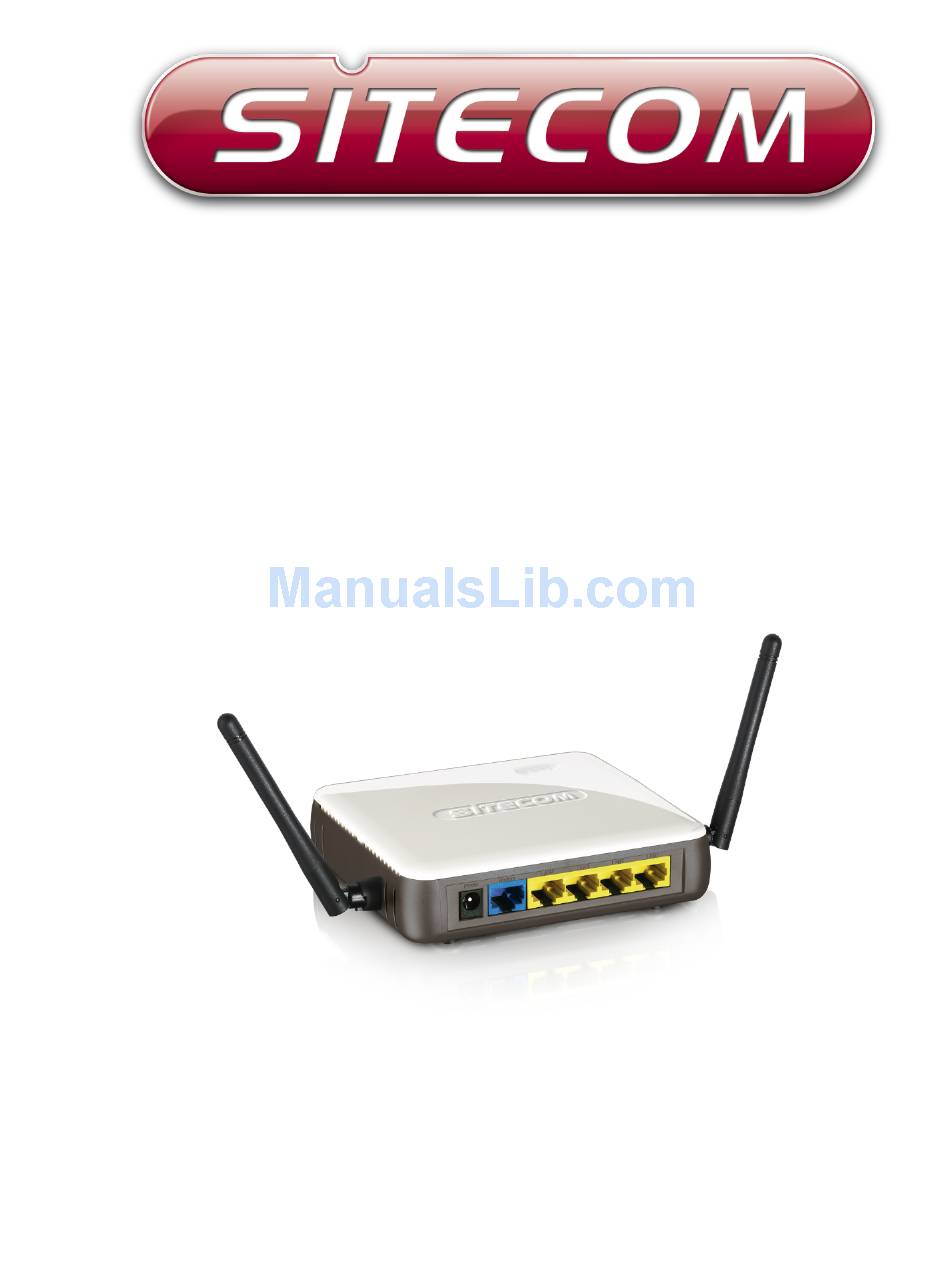

  • Page 1 WL-366 Wireless Broadband Router (802.11b/g/n)

  • Page 2: Table Of Contents

    4NETWORK + SYSTEM REQUIREMENTS ..................8 5WL-366 PLACEMENT ......................... 8 6SETUP LAN, WAN ..........................9 7PC NETWORK ADAPTER SETUP ....................10 8BRINGING UP THE WL-366 ......................14 9 INITIAL SETUP WL-366 ........................14 10 CONFIGURATION WIZARD ......................22 11 WIRELESS SETTINGS ........................24 12 FIREWALL SETTINGS ........................
  • Page 3 Introduction Congratulations on your purchase of the WL-366 Wireless Network Broadband Router. The WL-366 is compliant with 802.11n v2.0 and up to 6 times faster than standard 802.11g based routers while still being compatible with 802.11g & 802.11b devices. The WL-366 is not only a Wireless Access Point, but also doubles as a 4-port full-duplex Switch that connects your wired-Ethernet devices together.

  • Page 4: 1Key Features

    Key Features Features Advantages Incredible Data Rate up to Heavy data payloads such as 300Mbps* MPEG video streaming IEEE 802.11n draft 2.0 Compliant Fully Interoperable with IEEE and backward compatible with 802.11b / IEEE802.11g 802.11b/g compliant devices with legacy protection Four 10/100 Mbps Fast Switch Ports Scalability, extend your (Auto-Crossover)

  • Page 5: 2Package Contents

    Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original package. WL-366 Router 220V~240V Power Adapter Quick Install Guide CD (User’s Manual)

  • Page 6: 3Product Layout

    3 Product Layout Port Description Power connector Connect the DC adapter here. Connect the cable from your ADSL/Cable modem WAN[Blue] to this port. Connect the cable from your PC’s or network LAN[Yellow] devices to this port.

  • Page 7: Back Label

    Back label The back label describes the corresponding LED indications and port functionality. Description Lights up in yellow when WLAN is enabled, blinks WLAN yellow when WPS is set and lights up blue when WLAN is connected. LINK/ACTIVY Blinks on traffic for specific LAN PORT Lights up in yellow when WAN port is connected, lights up in blue when internet connection is established.

  • Page 8: 4Network + System Requirements

    Ethernet compatible CAT5 cables. WL-366 Placement You can place the WL-366 on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your Wireless Broadband Router in the center of your home (or your office) in a location that is away from any potential source of interference, such as a metal wall or microwave oven.

  • Page 9: 6Setup Lan, Wan

    Setup LAN, WAN WAN connection: LAN connection:...

  • Page 10: 7Pc Network Adapter Setup

    7 PC Network Adapter setup Windows XP Enter [Start Menu]  select [Control panel]  select [Network]. Select [Local Area Connection]) icon=>select [properties]...
  • Page 11 Select [Internet Protocol (TCP/IP)] =>Click [Properties]. Select the [General] tab. a. The router supports [DHCP] function, please select both [Obtain an IP address automatically] and [Obtain DNS server address automatically].
  • Page 12 Windows Vista/7 Enter [Start Menu]  select [Control panel]  select [View network status and tasks] -> select [Manage network connections]. Select [Local Area Connection]) icon=>select [properties]...
  • Page 13 Select [Internet Protocol Version 4 (TCP/IPv4)] =>Click [Properties]. Select the [General] tab. The router supports [DHCP] function, please select both [Obtain an IP address automatically] and [Obtain DNS server address automatically].

  • Page 14: 8Bringing Up The Wl-366

    Bringing up the WL-366 Connect the supplied power-adapter to the power inlet port and connect it to a wall outlet. The router automatically enters the self-test phase. During self-test phase, the Power LED will be lit continuously to indicate that this product is in normal operation.
  • Page 15 Type http://192.168.0.1 in the address bar and press [Enter].
  • Page 16 Type user name and password (default is admin/admin). Click OK. You will see the home page of the WL-366. The System status section allows you to monitor the current status of your router. The UP time, hardware information, serial number as well as firmware...

  • Page 17: Dhcp Server

    DHCP Server The DHCP server tab gives you the opportunity to change the IP settings of the WL-366. IP address 192.168.0.1. It is the router’s LAN IP address (Your LAN clients default gateway IP address). IP Subnet Mask 255.255.255.0 Specify a Subnet Mask for your LAN segment.

  • Page 18: Device Status

    Start IP/End IP You can select a particular IP address range for your DHCP server to issue IP addresses to your LAN Clients. Note: default IP range 192.168.0.100  192.168.0.199. If you want your PC(s) to have a static/fixed IP address, then you’ll have to choose an IP address outside this IP address Pool Domain Name You can specify a Domain Name for your LAN.

  • Page 19: Internet Status

    Internet Status This page displays whether the WAN port is connected to a Cable/DSL connection. It also displays the router’s WAN IP address, Subnet Mask, and ISP Gateway as well as MAC address, the Primary DNS. Press Renew button to renew your WAN IP address.

  • Page 20: Dhcp Client Status

    DHCP Client Status This page shows all DHCP clients (LAN PCs) currently connected to your network. The table shows the assigned IP address, MAC address and expiration time for each DHCP leased client. Use the Refresh button to update the available information.
  • Page 21 WL-366 Log View the operation log of the WL-366. This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be cleared <Clear> or it can be refreshed <Refresh>...

  • Page 22: Configuration Wizard

    Configuration Wizard Click Wizard to configure the router. The Setup wizard will now be displayed; check that the modem is connected and click Next. Select your country from the Country list. Select your internet provider. Click Next.
  • Page 23 Depending on the chosen provider, you may need to enter your user name and password, MAC address or hostname in the following window. After you have entered the correct information, click Next. Click APPLY to complete the configuration.

  • Page 24: Wireless Settings

    Wireless Settings You can set parameters that are used for the wireless stations to connect to this router. The parameters include Mode, ESSID, Channel Number and Associated Client. Wireless Function Enable or Disable Wireless function here. Click Apply and wait for module to be ready &...

  • Page 25: Basic Settings

    Basic Settings Mode Allows you to set the AP to AP or WDS mode. 802.11 Mode Allows you to set the AP fixed at 802.11b or 802.11g mode. You can also select B+G mode to allow 802.11b and 802.11g clients at the same time.

  • Page 26: Advanced Settings

    Advanced Settings This tab allows you to set the advanced wireless options. The options included are Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, and Preamble Type. You should not change these parameters unless you know what effect the changes will have on the router. Fragment Threshold "Fragment Threshold"...
  • Page 27 Preamble Type The “Long Preamble” can provide better wireless LAN compatibility while the “Short Preamble” can provide better wireless LAN performance. WMM WiFi Multi Media if enabled supports QoS for experiencing better audio, video and voice in applications.
  • Page 28 Security This Access Point provides complete wireless LAN security functions, included are WEP and WPA with pre-shared key. With these security functions, you can prevent your wireless LAN from illegal access. Please make sure your wireless stations use the same security function, and are setup with the same security key.
  • Page 29 When you select 64-bit or 128-bit WEP key, you have to enter WEP keys to encrypt data. You can generate the key by yourself and enter it. You can enter four WEP keys and select one of them as a default key. Then the router can receive any packets encrypted by one of the four keys.
  • Page 30 Click <Apply> at the bottom of the screen to save the above configurations. You can now configure other sections by choosing Continue, or choose Apply to apply the settings and reboot the device.
  • Page 31 WPA Pre-shared Key Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key to authenticate wireless stations and encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently. So the encryption key is not easy to be cracked by hackers. This is the best security available.
  • Page 32 This wireless router supports MAC Address Control, which prevents unauthorized clients from accessing your wireless network. Enable wireless access control Enables the wireless access control function Adding an address into the list Enter the "MAC Address" of the wireless station to be added and then click "Add". The wireless station will now be added into the "MAC Address Filtering Table"...
  • Page 33 Wi-Fi Protected Setup (WPS) is the simplest way to establish a connection between the wireless clients and the wireless router. You don’t have to select the encryption mode and fill in a long encryption passphrase every time when you try to setup a wireless connection. You only need to press a button on both wireless client and wireless router, and WPS will do the rest for you.
  • Page 34 WPS Current Status If the wireless security (encryption) function of this wireless router is properly set, you’ll see a ‘Configured’ message here. Otherwise, you’ll see ‘UnConfigured’. WPS Passphrase It shows the passphrase key that is randomly generated by the wireless router during the WPS process. You may need this information when using a device which doesn’t support WPS.

  • Page 35: Firewall Settings

    12 Firewall Settings The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attacks, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).
  • Page 36 If you have a client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall, then you can open up the firewall restrictions to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN.
  • Page 37 Denial of Service (DoS) The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events. Discard Ping on WAN The router’s WAN port will not respond to any Ping requests.
  • Page 38 Access You can restrict users from accessing certain Internet applications/services (e.g. Internet websites, email, FTP etc.), Access Control allows users to define the traffic type permitted in your LAN. You can control which PC client can have access to these services. Deny If you select “Deny”...
  • Page 39 Remove PC If you want to remove some PC from the "MAC Filtering Table", select the PC you want to remove in the table and then click "Delete Selected". If you want to remove all PCs from the table, just click the "Delete All"...

  • Page 40: Url Block

    URL block You can block access to some Web sites from particular PCs by entering a full URL address or just keywords of the Web site. Enable URL Blocking Enable/disable URL Blocking Add URL Keyword Fill in “URL/Keyword” and then click “Add”. You can enter the full URL address or the keyword of the web site you want to block.

  • Page 41: Advanced Settings

    13 Advanced Settings Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP.
  • Page 42 Local IP This is the LAN client/host IP address that the Public Port number packet will be sent to. Local Port This is the port number (of the above Private IP host) that the below Public Port number will be changed to when the packet enters your LAN (to the LAN Server/Client IP) Type Select the port number protocol type (TCP, UDP or both).

  • Page 43: Special Applications

    Special Applications Some applications require multiple connections, such as Internet games, video Conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications. Trigger Port This is the out going (Outbound) range of port numbers for this particular application.
  • Page 44 Popular applications This section lists the more popular applications that require multiple connections. Select an application from the Popular Applications selection. Once you have selected an application, select a location (1-10) in the Copy to selection box and then click the Copy to button. This will automatically list the Public Ports required for this popular application in the location (1-10) you specified.
  • Page 45 UPnP With UPnP, all PCs in you Intranet will discover this router automatically. So, you don’t have to configure your PC and it can easily access the Internet through this router. UPnP You can enable or Disable the UPnP feature here. After you enable the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without having to configure anything.
  • Page 46 QoS can let you classify Internet application traffic by source/destination IP address and port number. You can assign priority for each type of application and reserve bandwidth for it. The packets of applications with higher priority will always go first. Lower priority applications will get bandwidth after higher priority applications get enough bandwidth.

  • Page 47: Toolbox Settings

    14 TOOLBOX Settings Password change options You can change the password required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive. Current Password Fill in the current password to allow changing to a new password.

  • Page 48: Time Zone

    Time Zone The Time Zone allows your router to base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings. Set Time Zone Select the time zone of the country you are currently in. The router will set its time based on your selection.

  • Page 49: Remote Management

    Remote Management The remote management function allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field. Host Address This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site.

  • Page 50: Firmware Upgrade

    Firmware Upgrade This page allows you to upgrade the router’s firmware. Firmware Upgrade This tool allows you to upgrade the Broadband router’s system firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page.

  • Page 51: Backup Settings

    Backup Settings The Backup screen allows you to save (Backup) the router’s current configuration settings. When you save the configuration setting (Backup) you can re-load the saved configuration into the router through the Restore selection. If extreme problems occur you can use the Restore to Factory Defaults selection, this will set all configurations to its original default settings (e.g.
  • Page 52 Reset You can reset the router’s system should any problem exist. The reset function essentially re-boots your router’s system.
  • Page 53 DDNS DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers. This router supports DynDNS, TZO and other common DDNS service providers.
