Connecting more Devices through a Hub to the
Wireless Router
2-4
The Wireless Router provides four LAN ports to allow up to four PCs or
Workstations to be connected to it directly. If you want to connect more devices, you
can connect an external hub or switch to LAN port 1 using a straight LAN cable if the
Uplink switch is set to the Uplink position, or using a cross-over LAN cable if the
Uplink switch is set to the Normal position.

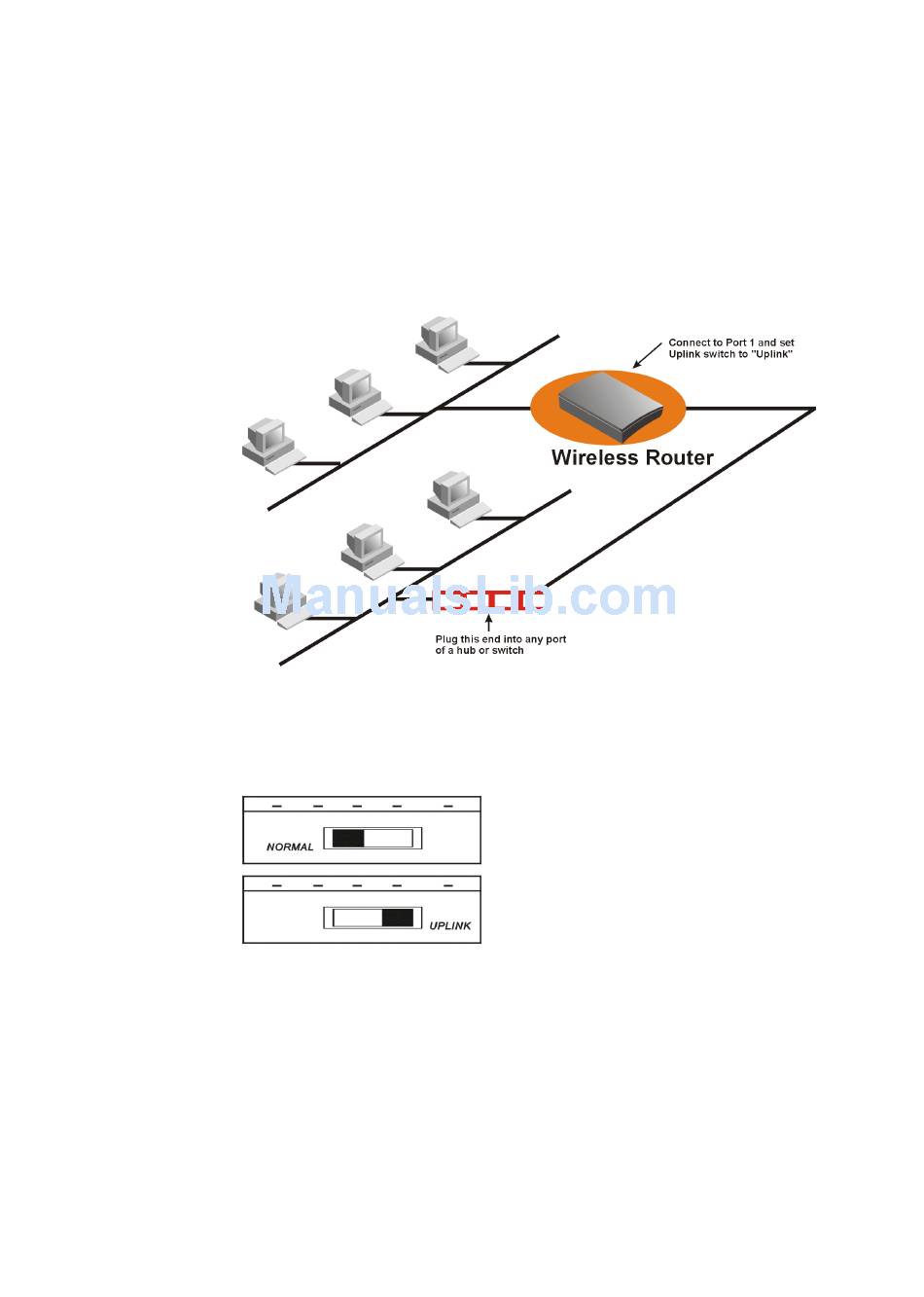

Figure 2-2 Connecting a Hub or Switch to the Wireless Router
The uplink switch is shown in the following picture.
Figure 2-3 Uplink Switch
