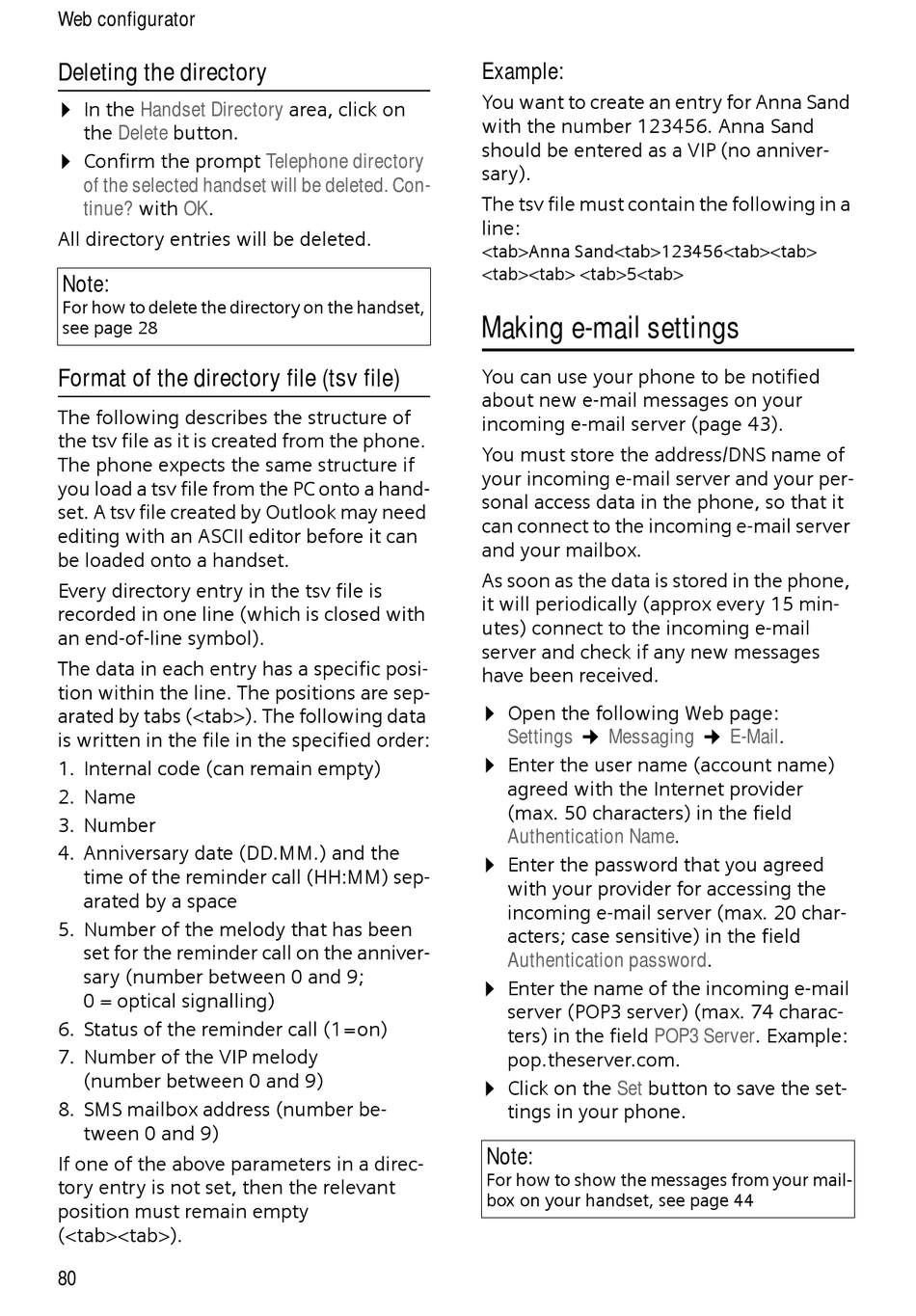

Web configurator
Deleting the directory
¤
In the
Handset Directory
the
button.
Delete
¤
Confirm the prompt
of the selected handset will be deleted. Con-
with OK.
tinue?
All directory entries will be deleted.
Note:
For how to delete the directory on the handset,
see page 28
Format of the directory file (tsv file)
The following describes the structure of
the tsv file as it is created from the phone.
The phone expects the same structure if
you load a tsv file from the PC onto a hand-
set. A tsv file created by Outlook may need
editing with an ASCII editor before it can
be loaded onto a handset.
Every directory entry in the tsv file is
recorded in one line (which is closed with
an end-of-line symbol).
The data in each entry has a specific posi-
tion within the line. The positions are sep-
arated by tabs (<tab>). The following data
is written in the file in the specified order:
1. Internal code (can remain empty)
2. Name
3. Number
4. Anniversary date (DD.MM.) and the
time of the reminder call (HH:MM) sep-
arated by a space
5. Number of the melody that has been
set for the reminder call on the anniver-
sary (number between 0 and 9;
0 = optical signalling)
6. Status of the reminder call (1=on)
7. Number of the VIP melody
(number between 0 and 9)
8. SMS mailbox address (number be-
tween 0 and 9)
If one of the above parameters in a direc-
tory entry is not set, then the relevant
position must remain empty
(<tab><tab>).
80
area, click on
Telephone directory
Example:
You want to create an entry for Anna Sand
with the number 123456. Anna Sand
should be entered as a VIP (no anniver-
sary).
The tsv file must contain the following in a
line:
<tab>Anna Sand<tab>123456<tab><tab>
<tab><tab> <tab>5<tab>

Making e-mail settings

You can use your phone to be notified
about new e-mail messages on your
incoming e-mail server (page 43).
You must store the address/DNS name of
your incoming e-mail server and your per-
sonal access data in the phone, so that it
can connect to the incoming e-mail server
and your mailbox.
As soon as the data is stored in the phone,
it will periodically (approx every 15 min-
utes) connect to the incoming e-mail
server and check if any new messages
have been received.
¤
Open the following Web page:
¢
Settings
Messaging
¤
Enter the user name (account name)
agreed with the Internet provider
(max. 50 characters) in the field
Authentication
Name.
¤
Enter the password that you agreed
with your provider for accessing the
incoming e-mail server (max. 20 char-
acters; case sensitive) in the field
Authentication
password.
¤
Enter the name of the incoming e-mail
server (POP3 server) (max. 74 charac-
ters) in the field
pop.theserver.com.
¤
Click on the
Set
button to save the set-
tings in your phone.
Note:
For how to show the messages from your mail-
box on your handset, see page 44
¢
E-Mail.
POP3
Server. Example:
