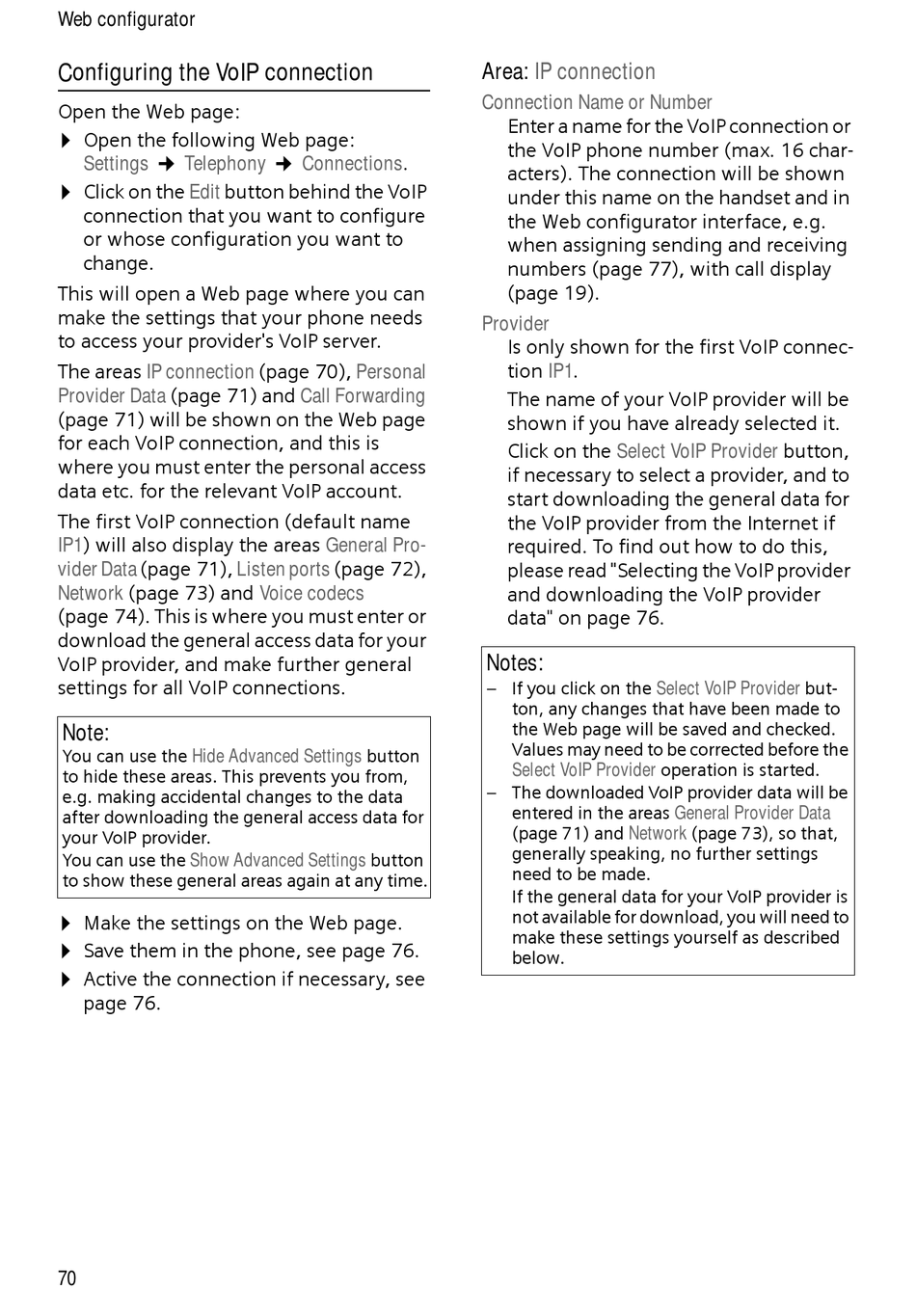

Web configurator
Configuring the VoIP connection
Open the Web page:
¤
Open the following Web page:
¢
Settings
Telephony
¤
Click on the
button behind the VoIP
Edit
connection that you want to configure
or whose configuration you want to
change.
This will open a Web page where you can
make the settings that your phone needs
to access your provider's VoIP server.
The areas
IP connection
Provider Data
(page 71) and
(page 71) will be shown on the Web page
for each VoIP connection, and this is
where you must enter the personal access
data etc. for the relevant VoIP account.
The first VoIP connection (default name
IP1) will also display the areas
(page 71),
vider Data
(page 73) and
Network
(page 74). This is where you must enter or
download the general access data for your
VoIP provider, and make further general
settings for all VoIP connections.
Note:
You can use the
Hide Advanced Settings
to hide these areas. This prevents you from,
e.g. making accidental changes to the data
after downloading the general access data for
your VoIP provider.
You can use the
Show Advanced Settings
to show these general areas again at any time.
¤
Make the settings on the Web page.
¤
Save them in the phone, see page 76.
¤
Active the connection if necessary, see
page 76.
70
¢
Connections.
(page 70),
Personal
Call Forwarding
General Pro-
(page 72),
Listen ports
Voice codecs
button
button
Area:
IP connection
Connection Name or Number
Enter a name for the VoIP connection or
the VoIP phone number (max. 16 char-
acters). The connection will be shown
under this name on the handset and in
the Web configurator interface, e.g.
when assigning sending and receiving
numbers (page 77), with call display
(page 19).
Provider
Is only shown for the first VoIP connec-
tion IP1.
The name of your VoIP provider will be
shown if you have already selected it.
Click on the
Select VoIP Provider
if necessary to select a provider, and to
start downloading the general data for
the VoIP provider from the Internet if
required. To find out how to do this,
please read "Selecting the VoIP provider
and downloading the VoIP provider
data" on page 76.
Notes:
– If you click on the
ton, any changes that have been made to
the Web page will be saved and checked.
Values may need to be corrected before the
Select VoIP Provider
– The downloaded VoIP provider data will be
entered in the areas
(page 71) and
Network
generally speaking, no further settings
need to be made.
If the general data for your VoIP provider is
not available for download, you will need to
make these settings yourself as described
below.
button,
but-
Select VoIP Provider
operation is started.
General Provider Data
(page 73), so that,
