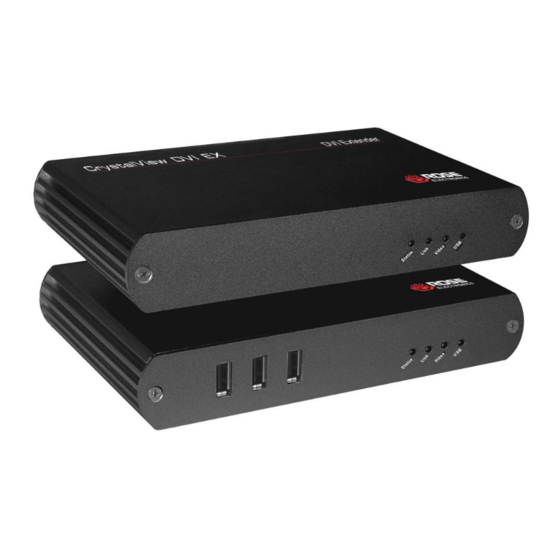

Rose electronics CrystalView DVI EX Installation And Operation Manual
Kvm extender, dvi, usb 2.0, audio, cat5
Hide thumbs
Also See for CrystalView DVI EX:
- Quick start manual (2 pages) ,
- Installation and operation manual (18 pages)
Related Manuals for Rose electronics CrystalView DVI EX
Summary of Contents for Rose electronics CrystalView DVI EX

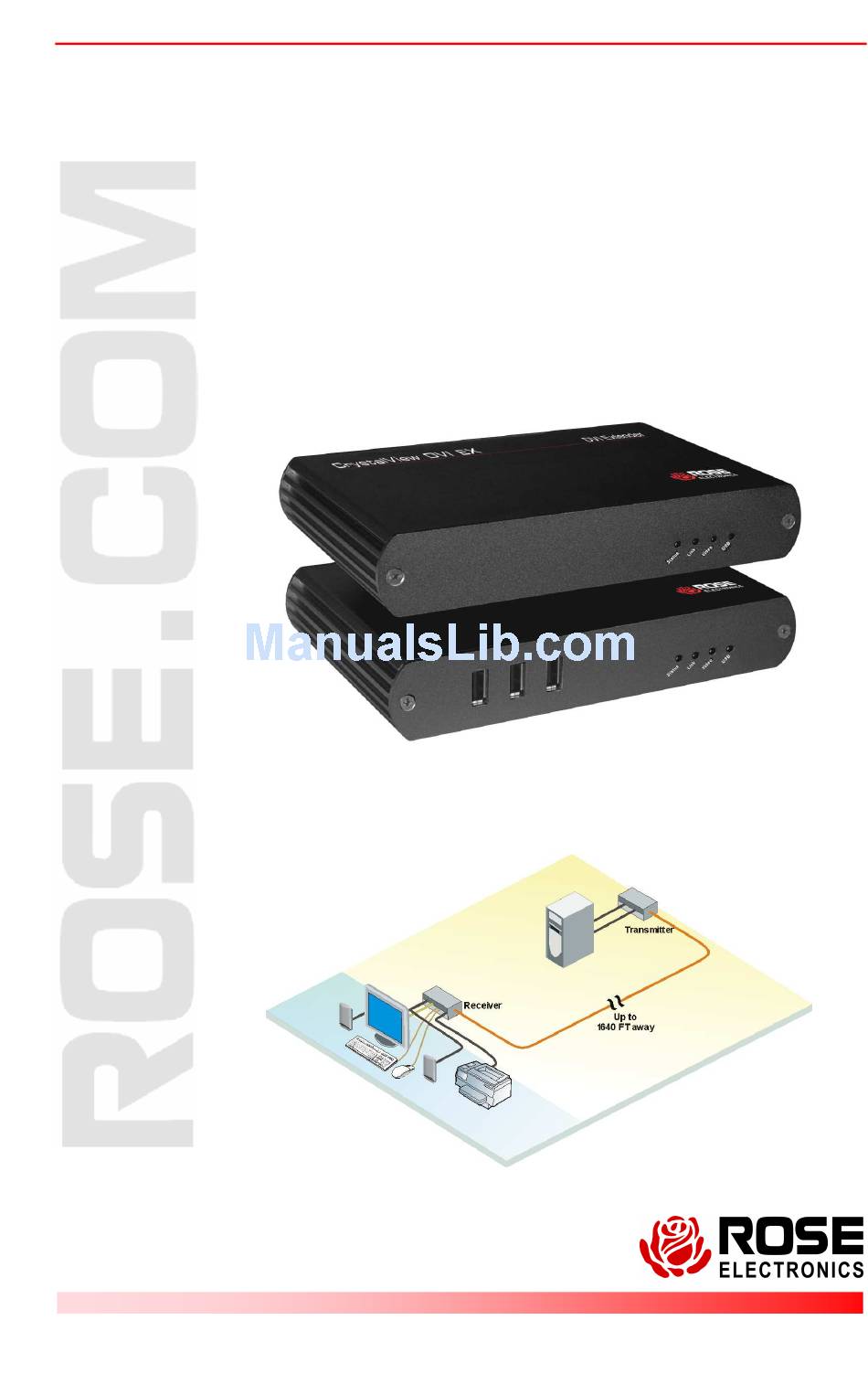

- Page 1 CrystalView DVI EX KVM Extender, DVI, USB 2.0, Audio, CAT5 INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 2 LIMITED WARRANTY Rose Electronics warrants the CrystalView DVI EX to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY Product CrystalView DVI EX / Part number CRK-2DTXT-EX/A1 This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication.
-
Page 4: Table Of Contents
Transmitter and receiver indicators............6 CrystalView DVI EX Installation..............7 Installation Verification (Refer to Table 1) ..........8 USB Device Installation................8 Operating the CrystalView DVI EX ..............8 Maintenance and Repair................11 Technical Support ..................11 Product Safety ..................... 12... -
Page 5: Disclaimer
Thank you for choosing the Rose Electronics CrystalView DVI EX KVM station extender. The CrystalView DVI EX is the KVM extender of choice for businesses that need to extend and operate a computer, server, or KVM switch from a distance. The CrystalView DVI EX makes this possible by the use of CAT5 cable. -
Page 6: Features
6’ USB Type A / B cable 5’ DVI-Dmm cable Documentation CD Other cables are usually ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. Installation and Operations Manual... -
Page 7: System Overview
OVERVIEW System Overview The CrystalView DVI Ex system consists of two units; a transmitter and a receiver. The transmitter connects to your computer’s DVI–D video connector and a USB Type A connector. The receiver connects to a DVI monitor, a microphone, a headset, and three USB devices. The transmitter and receiver units are connected together with up to 1,640 feet of solid core CAT5 or better UTP cable. -
Page 8: Crystalview Dvi Ex Model
CrystalView DVI EX Model LED Indicators* Status Link Video Transmitter Front View Connectors DVI-D – Video In Config – Reserved USB – Type B Link – RJ45 Power - +5V, 3A adapter Transmitter Rear View LED Indicators* Status Link Video... -
Page 9: Transmitter And Receiver Indicators
Transmitter and receiver indicators Description applies to both the transmitter and receiver unless specified otherwise. Indicator Description On – System ready Status Blinking – System being configured – not ready (Green LED) Off – No power to the unit On – Valid link between the transmitter and Link receiver (Green LED) -
Page 10: Crystalview Dvi Ex Installation
9. Connect the 24V, 1A power adapter to an AC outlet and to the Receiver unit 10. Turn on the remote monitor and boot the computer. Wait for approximately one minute for the CrystalView DVI EX units to initialize. NOTE: Use only the provided DC power adapters with this product. -
Page 11: Installation Verification (Refer To Table 1)
Verify that the USB device is detected and installed properly. Operating the CrystalView DVI EX Operating your CrystalView DVI EX system is no different than being connected directly to your computer. The only difference is the computer you are accessing is no longer on your desk but up to 1,640 feet away. - Page 12 TROUBLESHOOTING The Status, Link, Video, and USB LEDs on the transmitter and receiver will indicate any problems with the connections or unit. Please refer to Table 1 for a description of the different LED conditions that may occur. All LEDs on the Transmitter / Receiver unit are off Verify that the power adapter is properly connected and supplying +5V DC to the transmitter or +24V DC to the receiver There is no audio...
- Page 13 Microphone or Headphone doesn’t operate correctly. The audio device is not enumerated on the host computer. Audio jack not fully inserted. The two connectors for the Microphone and Headphone are reversed. Check that the CMEDIA device is enumerated on the host computer. On Mac it will be listed as USB PNP device.
-
Page 14: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 15: Product Safety
The CrystalView DVI EX extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView DVI EX should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 16: Appendix A - General Specifications
APPENDICES Appendix A – General Specifications Range 1640 feet (500 meters) over Cat 5 (or better) cable USB device support High-speed devices (480 Mb/s-USB 2.0) Full speed devices (12 Mb/s-USB 2.0/1.1) Low speed devices (1.5 Mb/s-USB 2.0/1.1) USB hub support Up to 4 USB hubs USB host support EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) -
Page 17: Appendix B - Part Numbers
Appendix B – Part numbers Part Number Description CRK-2DTXT-EX/A1 DVI, USB 2.0, Audio, CAT5 CAB-DVImm DVI-D mm cable CAB-USBABnnn USB type A/B cable Installation and Operations Manual... -
Page 18: Appendix C - Recommended Equipment
Appendix C – Recommended Equipment The following list of devices is recommended for use in the system: Monitors Samsung Acer Viewsonic ASUS BENQ Dell Graphic cards NVIDIA ION ATI Radeon HD 2000 series and above Matrox P-series Intel GMA 950 and GMA HD NVIDIA Quadro Series ATI FireGL/FirePro series NVIDIA Geforce Mobility 9000... - Page 19 〒103-0014 東京都中央区日本橋蛎殻町 1-16-11 TEL:03-3668-8089 FAX:03-3668-9872 URL:http://www.cybernetech.co.jp...
