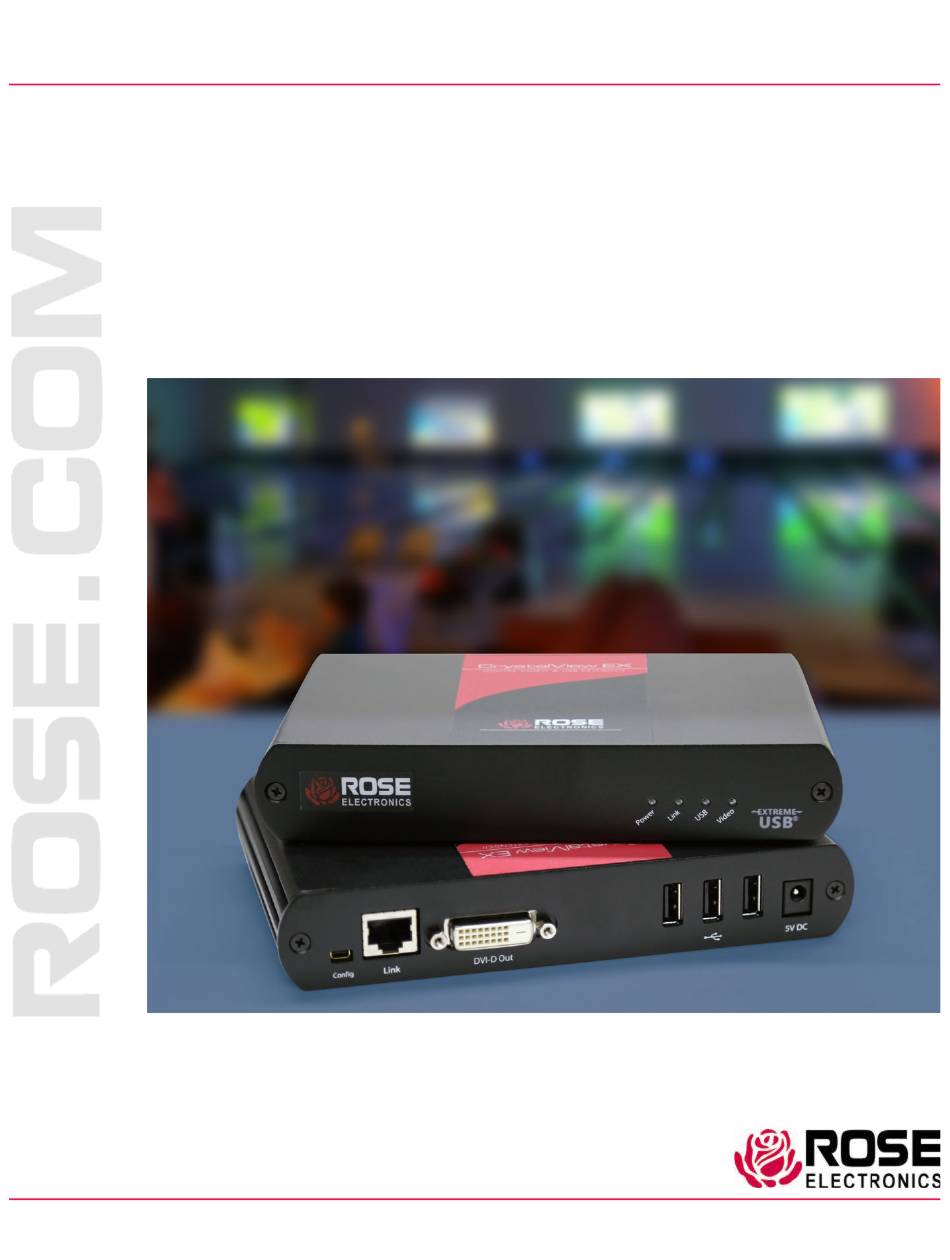

- Page 1 CrystalView EX DVI CATx Extender • DVI • USB 2.0 • 330' (100m) Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 ® Rose Electronics warrants the CrystalView EX DVI to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
Figure 2. Transmitter Rear Panel Figure 3. Receiver Front Panel Figure 4. Receiver Rear Panel Figure 5. Two CrystalView EX DVI Transmitters in a 1U rack shelf Figure 6. CrystalView EX DVI Installation Tables Table 1. CrystalView EX DVI Models Table 2. -
Page 5: Disclaimer
CAT5e or better cable. This provides access to your computer from up to 330 feet away (100m). The CrystalView EX DVI extender supports both USB 1.1 and low to moderate bandwidth USB 2.0 devices. It is ideal for use with industrial controls, digital signage, connecting cameras for security systems, and USB device printing, scanning and storage. -
Page 6: Package Contents
1 x CATx cable (Transmitter to Receiver – Point-To-Point) ■ USB 1.1 or 2.0 compatible peripheral devices Additional cables are usually ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. CrystalView EX DVI Manual... -
Page 7: Crystalview Ex Dvi Models
MODELS CrystalView EX DVI Models The CrystalView EX DVI comes in a single model as shown below. Indicators ■ Power ■ Link ■ ■ Video Figure 1.Transmitter Front Panel Connectors ■ DVI-D In ■ USB Type B ■ Link ■... -
Page 8: Transmitter And Receiver Front Panel Indicators
Connection to Transmitter unit using CAT5e or better cable Config Reserved for Rose Electronics’ use only Power +5V power adapter with locking connector Table 4. Receiver Rear Panel Connectors Figure 5. Two CrystalView EX DVI Transmitters in a 1U rack shelf CrystalView EX DVI Manual... -
Page 9: System Installation
INSTALLATION AND OPERATION System Installation Prior to installing the CrystalView EX DVI, prepare the layout of the computer, the Transmitter, the Receiver, and the equipment that will be connected to the Receiver. The Transmitter and Receiver units should be in locations that are easily accessible. -
Page 10: Receiver Installation
“generic hub”. OS X users can open the System Profiler to confirm that CrystalView EX DVI USB has been installed correctly. In the left hand column under Hardware, select “USB” and inspect the right hand panel. If the EX6 has been installed correctly, you should find it listed as a “Hub”... -
Page 11: Connecting Usb Devices
If the total power requirement is greater than 500ma, use a self-powered hub. The CrystalView EX DVI is compatible with a wide variety or graphic cards, monitors, USB devices, and operating systems. System Operation... -
Page 12: Troubleshooting
The unit is malfunctioning. ■ Reconnect the Receiver to the power adapter. ■ The USB cable is ■ If the USB LED continues to stay off, contact defective. Technical Support. Table 5.CrystalView EX DVI Troubleshooting Part 1 CrystalView EX DVI Manual... -
Page 13: Table 6. Crystalview Ex Dvi Troubleshooting Part 2
■ Confirm extender operation with a CAT5e/6/7 ■ The display or source is patch cable. not supported. ■ Contact Technical Support. ■ The CrystalView EX DVI is malfunctioning. Table 6. CrystalView EX DVI Troubleshooting Part 2 CrystalView EX DVI Manual... -
Page 14: Safety
The CrystalView EX DVI extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView EX DVI should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 15: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 16: Appendices
32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 158°F (-20°C to 70°C) Relative Humidity 20% to 80% no condensation Compliance FCC Part 15 Class A, CE Class A, ICES-003 Class A CE EN 55024, RoHS2 (CE) CrystalView EX DVI Manual... -
Page 17: Appendix B - Part Numbers
Part Number Description CRK-1DTXT-EX6 CrystalView EX DVI CAB-USBAB005 USB Cable CAB-DVIDMM005 DVI Cable TFR-05D300FSUB-1.7F +5V,3A power adapter RM-CRV-EX/19 Rack Mount Kit (holds 2 units, side-by-side) RM-CRVEX/CP Blanking Plate for Rack Mount Kit RM-UD/CRV-EX Under Desk Bracket CrystalView EX DVI Manual... - Page 18 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
