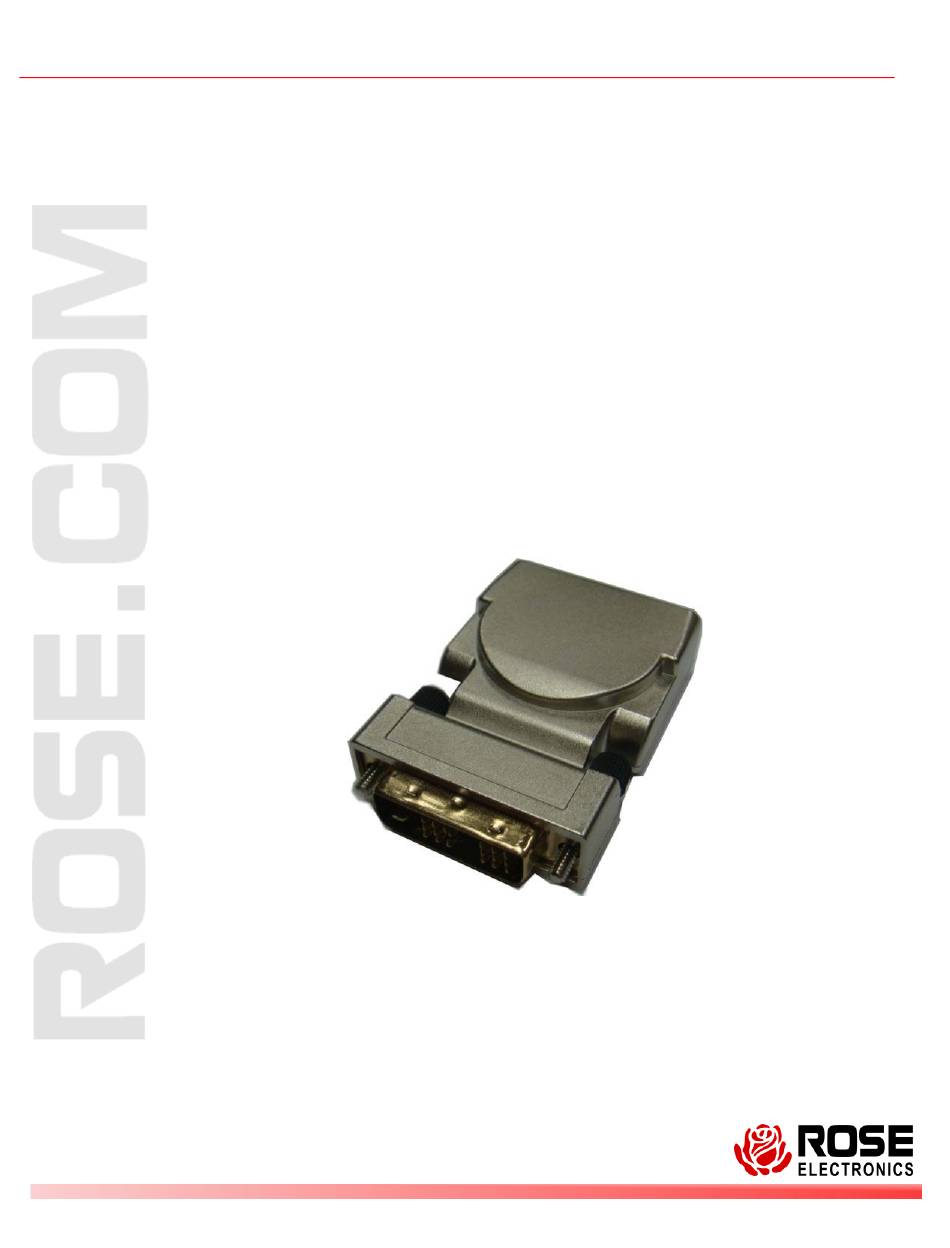

CrystalView Micro LT
Single-Mode / Multi-Mode Optical DVI Extender
INSTALLATION
AND
OPERATIONS MANUAL
10707 Stancliff Road
Phone: (281) 933-7673
Houston, Texas 77099
www.rose.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CrystalView Micro LT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rose electronics CrystalView Micro LT

  • Page 1 CrystalView Micro LT Single-Mode / Multi-Mode Optical DVI Extender INSTALLATION OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 www.rose.com...
  • Page 3 LIMITED WARRANTY Rose Electronics warrants the CrystalView Micro LT to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
  • Page 4: Table Of Contents

    Figure 2. DVI Panel Layout ..........................4 Figure 3 DVI-D Male (18+1) Connector PIN Definitions ..................5 Figure 4. Active Power LED ..........................6 Figure 5. Connecting the computers to the CrystalView Micro LT ..............6 Appendices Page # Appendix A. General Specifications ......................... 10...
  • Page 5: Disclaimer

    (See limited warranty). Introduction Thank you for choosing Rose Electronics CrystalView Micro LT extender. Utilizing both single-mode and multi- mode optical fiber, the product transmits DVI signals over long distances. The built-in EDID technology provides ease of installation and flexible compatibility with any display, regardless of resolution.
  • Page 6: Features

    Manual Additional power supply and cables can be ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. Product registration Register your product for future updates at: www.rose.com/htm/online-registrationform.htm...
  • Page 7: System Overview

    System Overview The CrystalView Micro LT comes in a single model. The following figures show the buttons and connectors on the unit. Figure 1. Unit, Front & Back Composite CrystalView Micro LT Installation and Operations Manual...
  • Page 8: Dvi Panel Layout

    6. EDID button (Transmitter) - Allows the user to manually program a display’s EDID data into the Transmitter’s EEPROM. The button must be pressed and held down using a pin or paper clip. CrystalView Micro LT Installation and Operations Manual...
  • Page 9: Pin Designations

    T.M.D.S Data 0 Shield T.M.D.S Data 0 Shield T.M.D.S Clock Shield T.M.D.S Clock Shield T.M.D.S Data Clock+ T.M.D.S Data Clock+ T.M.D.S Data Clock- T.M.D.S Data Clock- Figure 3 DVI-D Male (18+1) Connector PIN Definitions CrystalView Micro LT Installation and Operations Manual...
  • Page 10: Installation

    INSTALLATION Installation This section describes the process of connecting the CrystalView Micro LT to a video source and a display. AC/DC Power Adaptor Transmitter: There are two power input options for the CrystalView Micro LT Transmitter unit. Power is normally supplied from the graphic card through PIN14 (+5V) of the DVI connector. However, if the power output of the graphic card is insufficient for the operation of the Transmitter module, the AC/DC power adaptor may be used to power the unit.
  • Page 11: Manual Self-Edid Programming

    EDID is programmed into the Transmitter unit. If this table works with a DVI source, it is not necessary to reprogram the extender. CrystalView Micro LT can also be programmed with any display’s EDID table, to provide full compatibility with the display.
  • Page 12: Service Information

    Houston, Texas 77099 USA Technical Support If you are experiencing problems, or need assistance in setting up or operating your CrystalView Micro LT, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support Department at: Phone: (281) 933-7673 E-Mail: TechSupport@rose.com...
  • Page 13: Safety And Emc Regulatory Statements

    SAFETY Safety and EMC Regulatory Statements The CrystalView Micro LT has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView Micro LT should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.
  • Page 14: Appendix A. General Specifications

    Operating conditions: 32–122° F / 0–50° C, 0%-80% non-condensing relative humidity Storage conditions: -4–158° F / -20–70° C 1. Single-Mode Fiber: Fiber Core Dimension (9/125μm) 2. Multi-Mode OM3 Fiber: Fiber Core Dimension (50/125μm), Bandwidth (1300nm : 500MHz*km) CrystalView Micro LT Installation and Operations Manual...
  • Page 16 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
