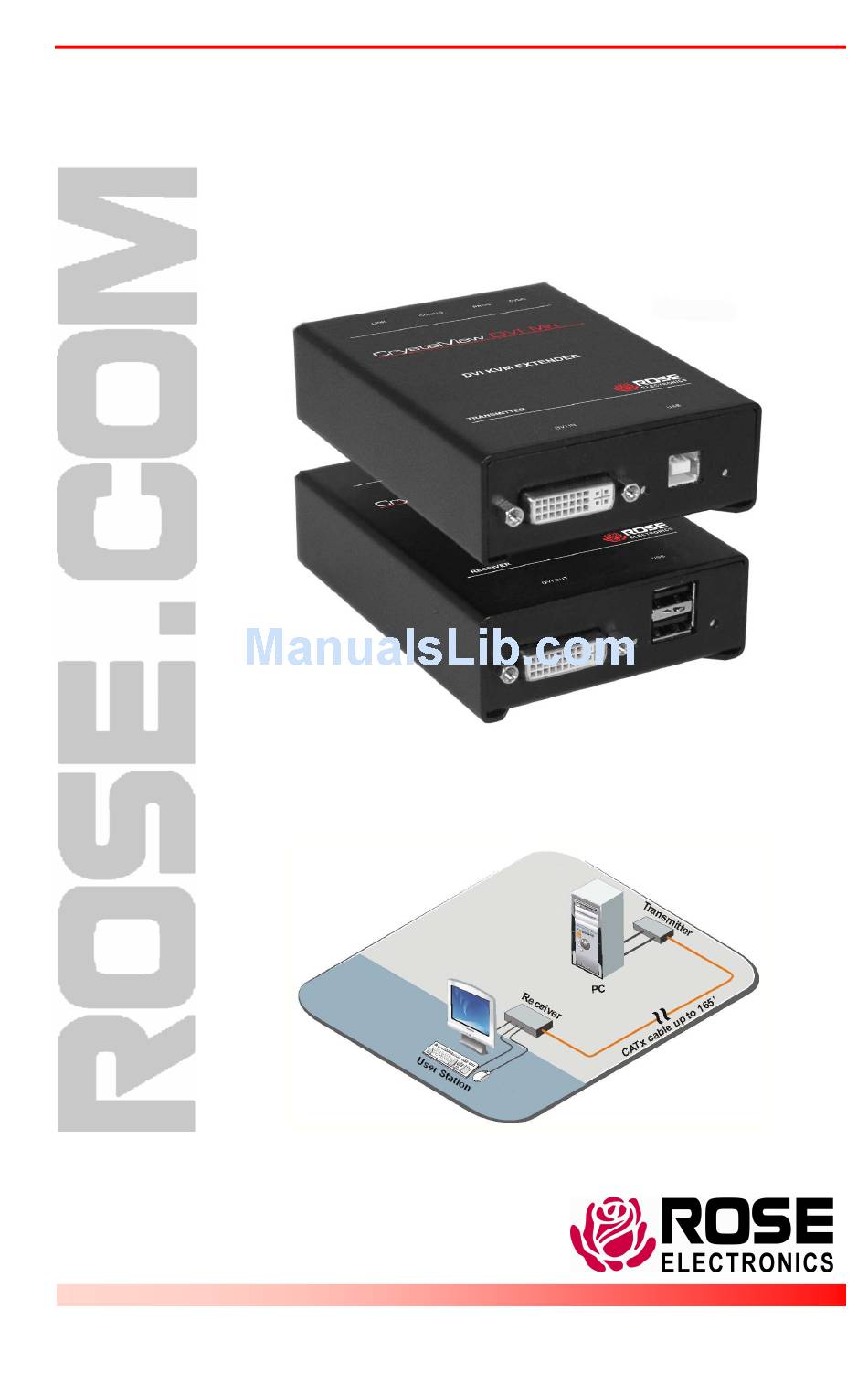

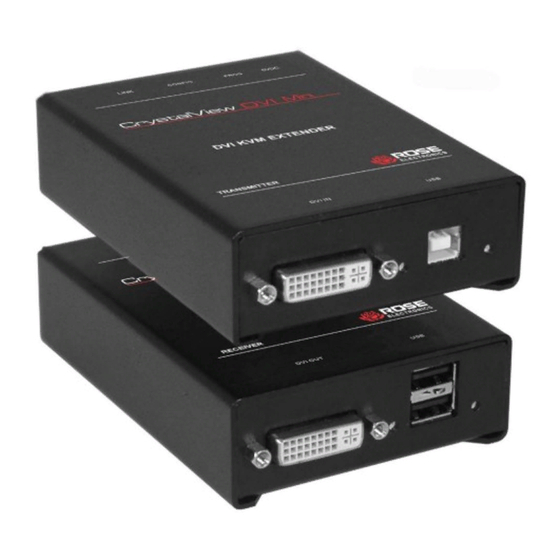

- Page 1 CrystalView DVI Mini DVI Cat5 Video Extender Installation and Operations Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 2 LIMITED WARRANTY Rose Electronics warrants the CrystalView DVI Mini to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication.
-
Page 4: Table Of Contents
Page # System Introduction .................. 1 Disclaimer ....................1 About This Manual ..................2 Product Registration ................. 2 Rose Electronics Web Site ............... 2 Features ....................3 Package Contents ................. 3 CrystalView DVI Mini Models..............4 Single-Head Installation................6 Dual-Head Installation ................7 Dip Switch Settings ................ -
Page 5: System Introduction
Thank you for choosing the Rose Electronics CrystalView DVI Mini KVM station extender. The CrystalView DVI Mini is the result of Rose Electronics commitment to providing state-of-the-art solutions for today’s demanding workplace. The CrystalView DVI Mini has proven to be a valuable investment for any business, big or small, that has a need to access their computer from a remote location. -
Page 6: About This Manual
About This Manual This manual covers the installation, configuration, and the operation of the CrystalView DVI Mini extender system. The system consists of a transmitter and receiver units, a computer to remotely access, and a remote KVM user station for remote access to the computer. The “Model”... -
Page 7: Features
1 Additional USB Type A to Type B cable (6ft / 1.8m) CATx and other cables are usually ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. -
Page 8: Crystalview Dvi Mini Models
MODELS CrystalView DVI Mini Models The CrystalView DVI Mini is available in the following models: Single head – part number CRK-M1DVI Transmitter - Front View Power +5VDC Programming port RJ45 Link Configuration Dip switches Transmitter - Rear View DVI-I video input USB Type B Receiver –... -
Page 9: Figure 2. Dual Access Model
2- USB Type B Receiver – Front View Power +5VDC 2-Programming ports 2-RJ45 Link 2-Configuration Dip switches Receiver – Rear View 2-DVI-I video outputs 4-USB HID Type A Figure 2. Dual Head Model CrystalView DVI Mini Installation and Operations Manual... -
Page 10: Single-Head Installation
To CPU To CPU To optional CATx DVI-D port USB port power adapter cable Transmitter Receiver Receiver-Rear Receiver-Front To power CATx To DVI To USB adapter cable monitor HID devices Figure 3. Single-Head Installation CrystalView DVI Mini Installation and Operations Manual... -
Page 11: Dual-Head Installation
DVI-D port #1 USB port #1 Transmitter Receiver Receiver-Rear Receiver-Front To keyboard/ To other CATx Mouse #1 USB HID devices cable #2 To power CATx adapter cable #1 monitor #1 monitor #2 Figure 4. Dual-Head Installation CrystalView DVI Mini Installation and Operations Manual... -
Page 12: Dip Switch Settings
Configuration for Maximum Distance transmission, Independent of Monitor Resolution Reserved – currently w/o function Operation mode: Standard operation (Default) Operation mode: Firmware update Set only during Firmware Update, if required Figure 5. Transmitter Dip-switch settings CrystalView DVI Mini Installation and Operations Manual... -
Page 13: Figure 6. Receiver Dip-Switch Settings
CATx cables should have ferrites on both ends of the cable close to the transmitter and receiver’s RJ45 connector. A point to point connection is required. Patch panels in the line are allowed CrystalView DVI Mini Installation and Operations Manual... -
Page 14: Ddc Information
DDC Information The CrystalView DVI Mini, by default, uses an internal DDC table. If this does not satisfy your requirements, the DDC information from the remote monitor can be downloaded and saved in the internal DDC table. To download the remote monitor’s DDC table, perform the following: 1. -
Page 15: System Troubleshooting
USB port Make sure that the USB device is classified as a HID USB device CrystalView DVI Mini supports most USB HID devices but there are some types that we can’t ensure that will operate properly... -
Page 16: Product Safety
Except where explained in this manual, do not attempt to service this Unit yourself. Do not use this Unit near water. CrystalView DVI Mini is for indoor use only, do not link between buildings Do not connect the CATx cable to any other equipment, especially network or telecommunication equipment Assure that the placement of this Unit is on a stable surface. -
Page 17: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 18: Appendix A - General Specifications
W: 3.1in / 80 mm D: 4.3 in / 110 mm D: 4.3 in / 110 mm Dual-Head Receiver H: 1.1 in / 29 mm W: 6.3in / 161 mm D: 4.3 in / 110 mm CrystalView DVI Mini Installation and Operations Manual... -
Page 19: Appendix B - Parts And Cables
• V220 Cordless Optical • LX3 Optical • V320 Cordless Optical • LX5 Cordless Optical • V450 Laser Cordless • LX7 Cordless Optical • VX Nano • MX 620 Cordless Laser • VX Revolution CrystalView DVI Mini Installation and Operations Manual... - Page 20 〒103-0014 東京都中央区日本橋蛎殻町 1-16-11 TEL:03-3668-8089 FAX:03-3668-9872 URL:http://www.cybernetech.co.jp...
