Rose electronics CRV-DLDFMPDVI Features And Benefits

CrystalView Pro fiber Rack

Features and Benefits

Extend 10 KVM stations from 10 CPUs via fiber
cable:
(Multimode) 62.5-micron cable up to 650 feet
(Multimode) 50-micron cable up to 1,300 feet
(Singlemode) 9-micron cable up to 33,000 feet
Supports:
DVI and VGA video modes
PS/2, SUN, USB keyboards and mice
Full stereo audio (optional)
Serial (optional RS232)
Video resolutions up to 1600 x 1200
Flexible modular architecture
Compatible with Rose Electronics KVM switches
such as ServeView Pro, UltraView Pro, and
UltraMatrix
Compatible with Windows, Windows NT, OS/2,
UNIX, Linux, and other operating systems
Uses a microprocessor to emulate the keyboard
and mouse. The keyboard and mouse on the
receiver unit do not have to be connected for the
PC to boot; only the transmitter must be connected
to the PC.
Fully automatic KVM sharing
(Local access models)
Only two fibers needed
Digital OSD setup menu
Rack mount kits available for 4U chassis
in 19", 23", or 24"
(1900 x 1200 optional)

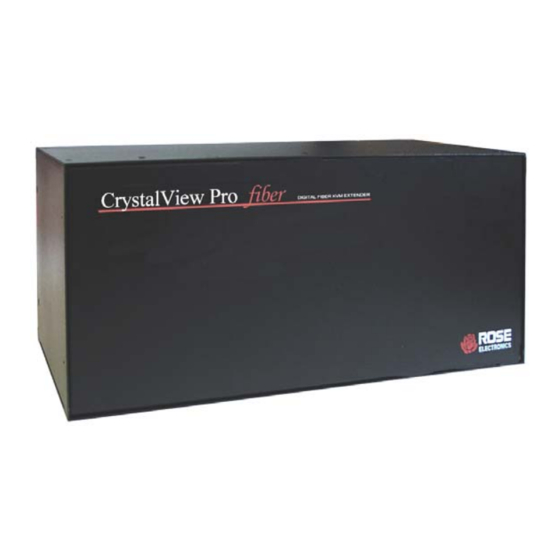

Digital fiber KVM extender rack
Rack containing 10 CrystalView Pro fiber
transmitters or receivers
Extends keyboard, video, and mouse signals
up to 33,000 feet away
Supports DVI and VGA video at resolutions
up to 1600 x 1200 (Optional1900 x 1200)
Single, Dual, Serial and Audio models
Easily adapted to your system
CrystalView™ Pro fiber Rack Advantage
The CrystalView Pro fiber rack is the KVM extender of
choice for businesses that need to extend and operate
several computers, servers, or KVM switches from a
great distance. The CrystalView Pro fiber rack makes
this possible by the use of standard fiber optic cable.
You can fully operate and control 10 computers or
servers from as far away as 33,000 feet using 9-micron
fiber cable.
The CrystalView Pro fiber rack supports both DVI video
as well as analog VGA video. All combinations of DVI
and VGA video cards and monitors are supported. The
OSD features make it easy to adjust all the necessary
device parameters, color, brightness, contrast, and
saturation. Using fiber cable, you can extend the
distance between the transmitter and receiver further
than with conventional CAT5 cable. In addition, fiber
cable is unaffected by electromagnetic interference,
keeping your data safe from interference from lightning
and over voltage transients.
The modular architecture makes the CrystalView Pro
fiber easily adapted to your system. PS/2, SUN, and
USB peripherals are supported. CAT5, Multimode and
Singlemode fiber cabling, serial for Touchscreens and
other supported serial devices, stereo audio, parallel for
printers, and 10BaseT Ethernet are also supported as
options.
Up to 10 transmitters or receivers can be
installed. Each module is totally
independent giving you the flexibility needed
to interface to PCs, serial devices, Sun
systems, Touchscreens, and more from a
central location.
On-screen display
W W W . R O S E . C O M
