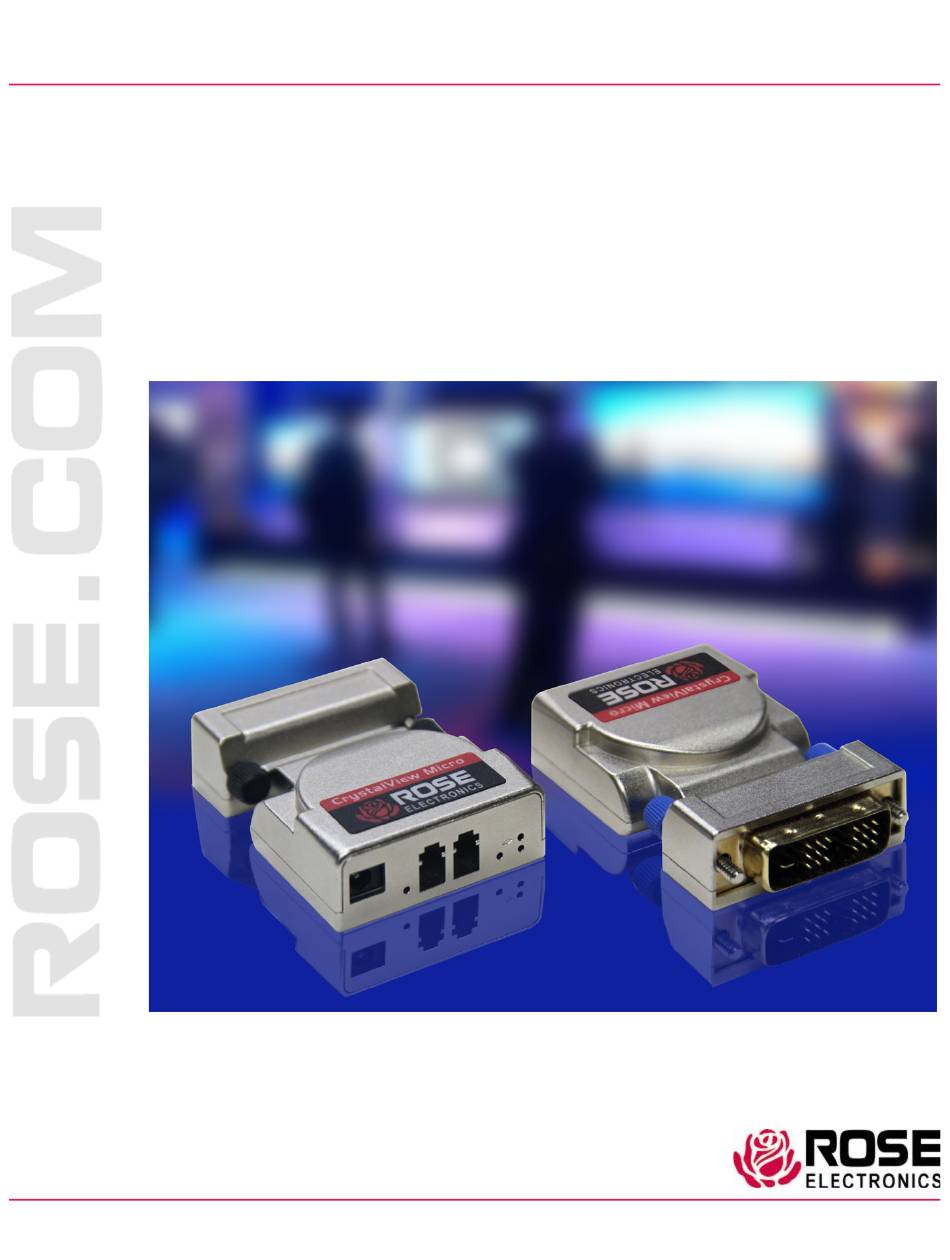

Page 1: Operation Manual
CrystalView DVI Micro LT Multi-mode or Single-mode DVI Fiber Extender Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com... -
Page 2: Limited Warranty
CrystalView DVI Micro LT Extender to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. -
Page 3: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents Compatibility Application Examples CrystalView DVI Micro LT Models Installation Procedure System Connection LC Fiber Status Indicators Manual Self-EDID Programming Programming Procedure Device Power AC/DC Power Adaptor DVI Panel Layout – Connectors and LED’s DVI Connector - Pin Designations Safety Maintenance and Repair... -
Page 4: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics CrystalView DVI Micro LT fiber extender. Utilizing both single-mode and multi-mode optical fiber, the product transmits DVI signals up to 1640ft (500m) on multi-mode fiber, and 4920ft (1500m) on single-mode fiber. -
Page 5: Package Contents
User Manual Additional power supply and cables can be ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. Compatibility Hardware: Any device with DVI video input or output... -
Page 6: Crystalview Dvi Micro Lt Models
MODELS CrystalView DVI Micro LT Models The CrystalView DVI Micro LT comes in a single model. The following figures show the buttons and connectors on the unit. Figure 1. CrystalView DVI Micro, front and back composite CrystalView DVI Micro LT Manual... -
Page 7: Installation Procedure
INSTALLATION Installation Procedure Before beginning an installation, ensure you have all products and components ready for the installation System Connection Connect the transmitter to the DVI source, and the receiver to the DVI display. Figure 2. Connecting the CrystalView DVI Micro LT LC Fiber Plug the duplex LC fiber into the LC connectors on the CrystalView DVI Micro LT transmitter and receiver units. -
Page 8: Programming Procedure
Programming Procedure Insert a small pin or paper clip into the EDID button hole, and press and hold down the button. Release the button once the EDID indicator begins to blink rapidly. Connect the transmitter unit to the DVI cable of the display. -
Page 9: Dvi Panel Layout - Connectors And Led's
DVI Panel Layout – Connectors and LED’s Figure 4. DVI panel layout (transmitter and receiver) DVI Panel - Connectors and LED’s Number Description Power adaptor: DC jack Power Indicator: Illuminated when 5V power is supplied from either the transmitter DVI connector or the 5V external power supply LC fiber optic connector Data Indicator: displays signal transmission status:... -
Page 10: Dvi Connector - Pin Designations
DVI Connector - Pin Designations Transmitter Unit Receiver Unit Designation Designation T.M.D.S Data 2- T.M.D.S Data 2- T.M.D.S Data 2+ T.M.D.S Data 2+ T.M.D.S Data 2 Shield T.M.D.S Data 2 Shield DDC Clock DDC Clock DDC Data DDC Data No Connect No Connect T.M.D.S Data 1- T.M.D.S Data 1-... -
Page 11: Safety
PRODUCT SAFETY Safety The CrystalView DVI Micro LT, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. ... -
Page 12: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 13: Appendix A - Specifications
APPENDICES Appendix A — Specifications Part Numbers Description CRK-T1DFXDM-DLT CrystalView DVI Micro LT Fiber Extender Chassis Dimensions (W x D x H) Transmitter and receiver chassis 1.53” x 2.12” x 0.57” (39 x 54 x 14.6 mm) Power Requirements Power source Transmitter unit is interface powered (from DVI circuit). - Page 14 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
