Summary of Contents for Rose electronics CrystalView HDT

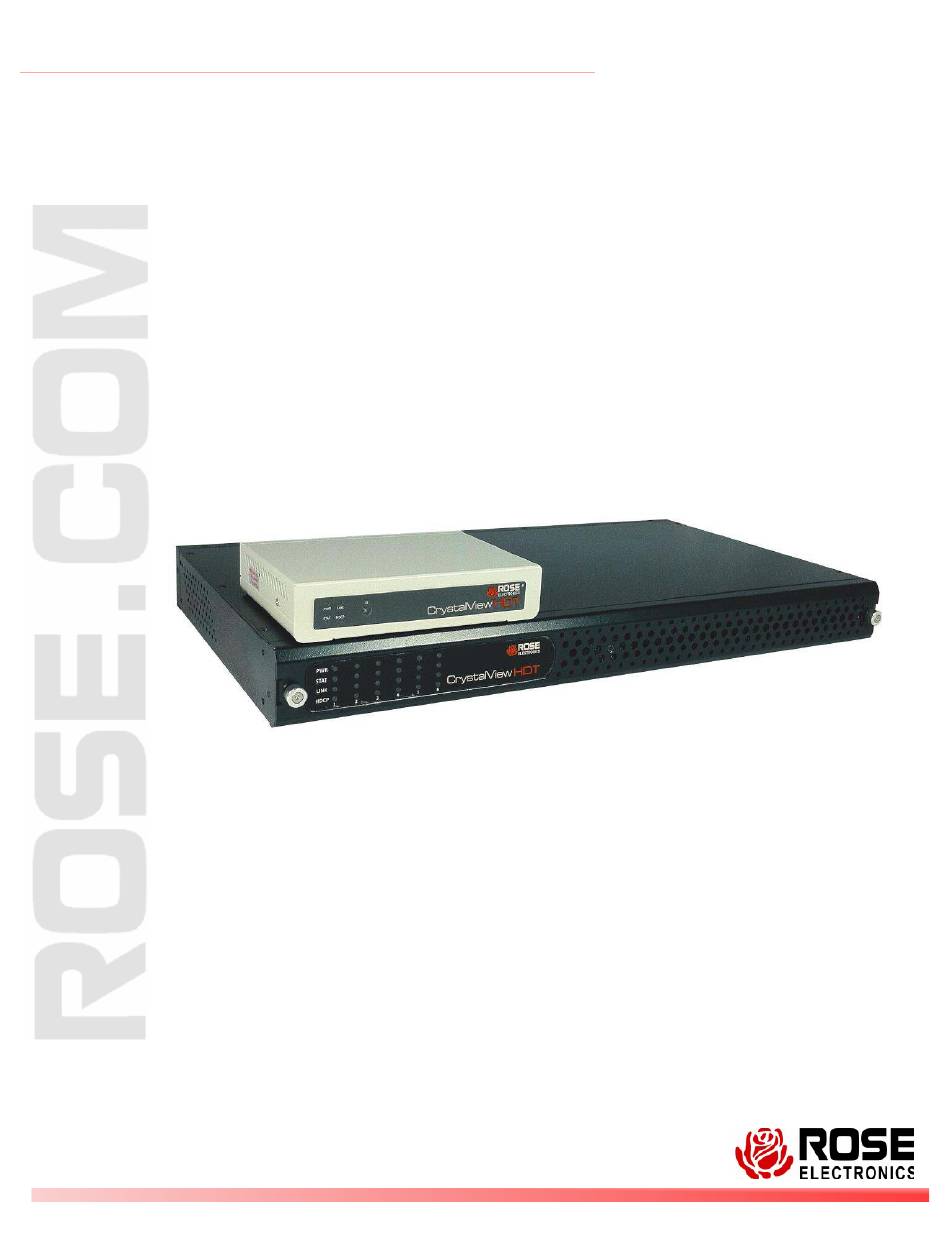

- Page 1 CrystalView HDT CATx Video, Audio and USB Extender 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 www.rose.com...
- Page 3 Rose Electronics warrants the CrystalView HDT to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
-
Page 4: Table Of Contents
Maintenance and Repair ..........................12 Technical Support ............................12 Safety and EMC Regulatory Statements ......................13 Figures Page # Figure 1. CrystalView HDT Transmitter Front and Rear Panels ................3 Figure 2. CrystalView HDT Receiver Front and Rear Panels ................4... -
Page 5: Disclaimer

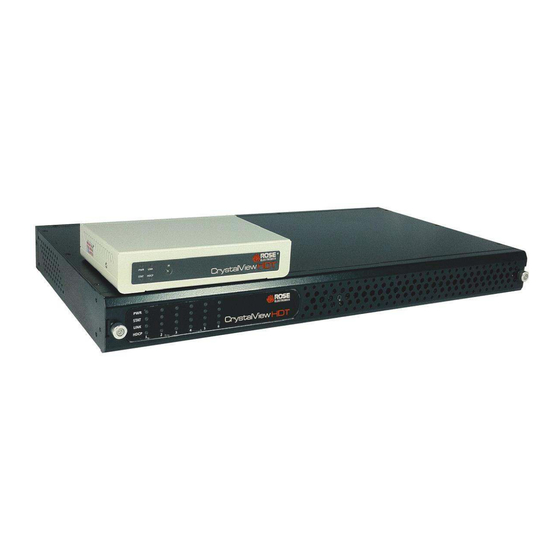

(See limited warranty) Introduction Thank you for choosing Rose Electronics CrystalView HDT. The CrystalView HDT is a standalone device (rack mountable) which extends HDMI/VGA video signals from connected devices up to 328 ft. (100 m) at resolutions up to1080p without compression. The Receiver consoles can use USB keyboard and mouse or Infrared Remotes to control the source devices. -
Page 6: Features
Power Supply Cord Ÿ Manual Ÿ Additional cables can be ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller so the problem can be quickly resolved. Product registration Register your product for future updates at: www.rose.com/htm/online-registrationform.htm ... -
Page 7: Model Description
Model Description The CrystalView HDT Transmitter chassis comes in a single model that can support from 1 to 6 HDMI or VGA transmitter cards. The following figures show the indicators and connectors on a fully equipped chassis. Transmitter Chassis Front and Rear Panels Figure 1. -
Page 8: Receiver Front And Rear Panels
Connects to a USB keyboard and mouse. 5. Dip Switches: Used to perform firmware upgrades. 6. HDBaseT RJ-45: Connects to a CrystalView HDT Transmitter card via CAT5e/6 cable. 7. HDMI Output: Connects to an HDMI monitor for digital video and audio. -
Page 9: Installation
Installation The installation of the CrystalView HDT is quick and simple. This section of the manual describes how to connect the CrystalView HDT to computers and video equipment. While the steps given here need not be followed in any particular order, it is recommended that power is applied to the unit as a final step. -
Page 10: Basic Setup When Connecting To A Video Player
Basic Setup When Connecting to a Video player The following figure shows a typical setup of CrystalView HDT Transmitter and Receiver connected to a remote video player. Ÿ Connect an HDMI cable between the video player’s HDMI output and the HDMI input on the transmitter card. -
Page 11: Volume Control When Using Headphones
Increase the horizontal total width of the image. Ÿ Ctrl + J Increase the horizontal total width of the image by increments of 10. Ÿ Decrease the horizontal total width of the image. CrystalView HDT Installation and Operations Manual... - Page 12 Return the current image adjustment parameter to the factory default setting. Ÿ Ctrl + A Return all image adjustment parameters to the factory default setting. Ÿ Ctrl + C Scroll through the image adjustment parameters and perform minor adjustments with the above keys. CrystalView HDT Installation and Operations Manual...
-
Page 13: Appendix A - General Specifications
IR (Infrared receiver) Infrared signal input from an infrared-compliant remote control. HDBaseT (RJ45 connector) For direct pairing between CrystalView HDT HDMI or VGA transmitter cards CrystalView HDT receivers; can be extended up to 100m (328ft). Outputs HDMI OUT (HDMI type A) - Page 14 Supported IR carrier frequency 30 to 56kHz Power Power consumption CrystalView HDT Transmitter Chassis: 120W (maximum) CrystalView HDT Receiver: 10W (maximum) Power Supply (CrystalView HDT Transmitter Chassis) 100 ~ 240 V AC / 48 V DC adapter Power Supply (CrystalView HDT Receiver)
-
Page 15: Appendix B - Resetting To The Factory Default State
CrystalView HDT, HDBaseT Transmitter Card, HDMI-DVI, USB HID, IR, CATx, 328ft (100m) CRV-DLHTXU-P/IRK CRV-DLVTXU-P/IRK CrystalView HDT, HDBaseT Transmitter Card, VGA, USB HID, Audio, IR, CATx, 328ft (100m) CRV-SRHTXU-P CrystalView HDT, HDBaseT Receiver Unit, HDMI, USB HID, Audio, IR, CATx, POE... -
Page 16: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 17: Safety And Emc Regulatory Statements
Servicing There are no user-serviceable parts inside these products. Only service-trained personnel must perform any servicing, maintenance, or repair. The user may adjust only items mentioned in this manual. CrystalView HDT Installation and Operations Manual... - Page 18 正規代理店 〒103-0014 東京都中央区日本橋蠣殻町1-16-11、SFビル 株式会社サイバネテック Tel: 03-3668-8089、Fax: 03-3668-9872、Web: www.cybernetech.co.jp...
