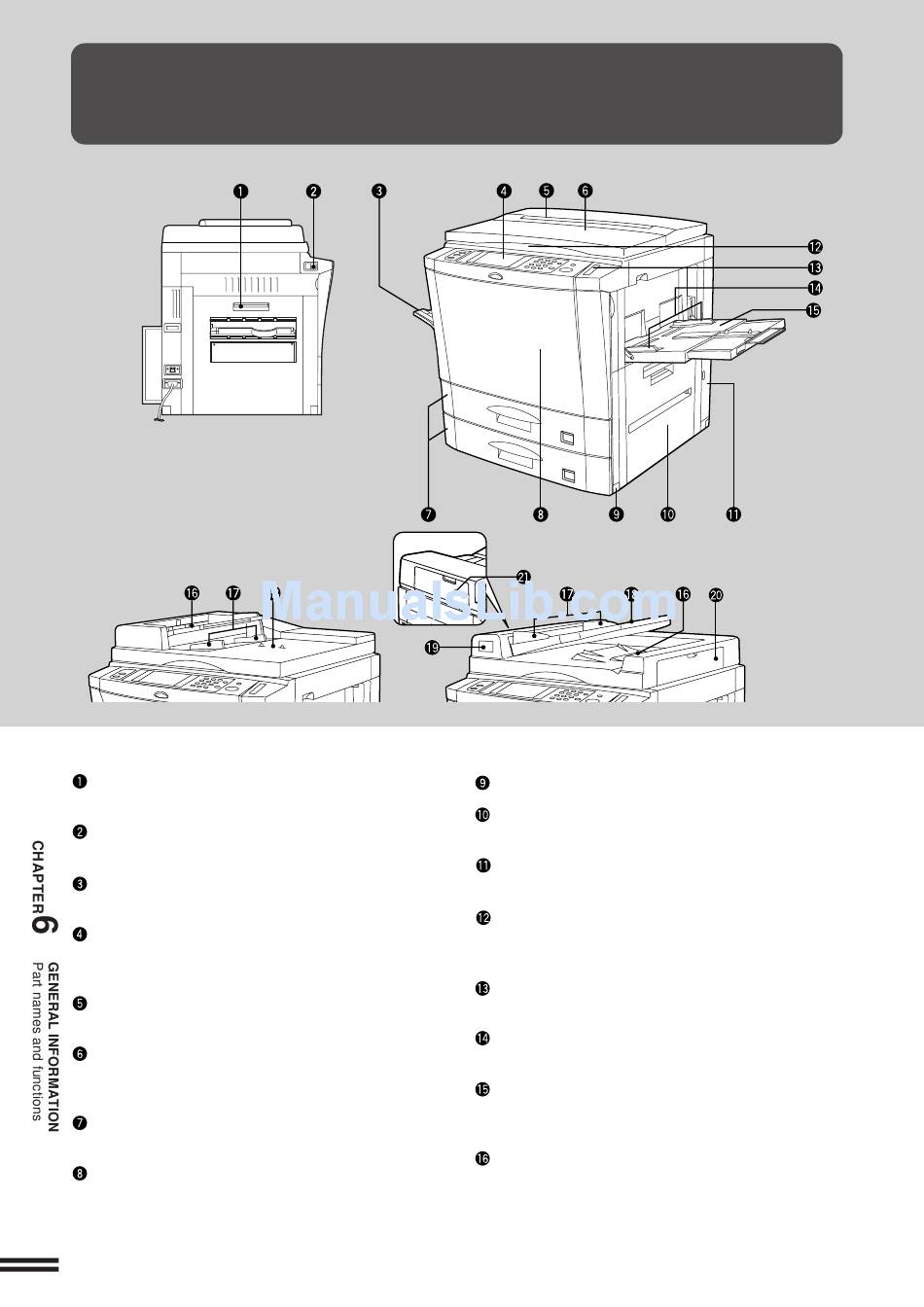

PART NAMES AND FUNCTIONS

Exterior

[Optional SPF]
Exit area cover
Open to remove misfed paper.
Power switch
Press to turn copier power on and off.
Exit tray (optional)
Finished copies are deposited in the exit tray.
Operation panel
All copier controls are located here for easy
operation.
Original stocker (optional)
Keep originals here.
Document cover (optional)
Place the original on the document glass and close
the document cover before copying starts.
Paper trays
Each tray holds 500 sheets of paper.
Front cover
Open to remove misfeeds and to service the
copier.
6-2
[AR-250 with optional document cover]
[Optional RADF]
Handles
Right side cover
Open to remove misfeeds in the paper feed area.
Toner collecting container cover
Open to replace the toner collecting container.
Document glass
All originals which cannot be copied from the
optional SPF/ RADF must be copied here.
Paper clip tray
Keep paper clips here.
Bypass tray paper guides
Adjust to the width of the copy paper.
Bypass tray
Special papers (including transparency film) and
copy paper can be fed from the bypass tray.
SPF/RADF exit area (optional)
Finished originals are output here.
