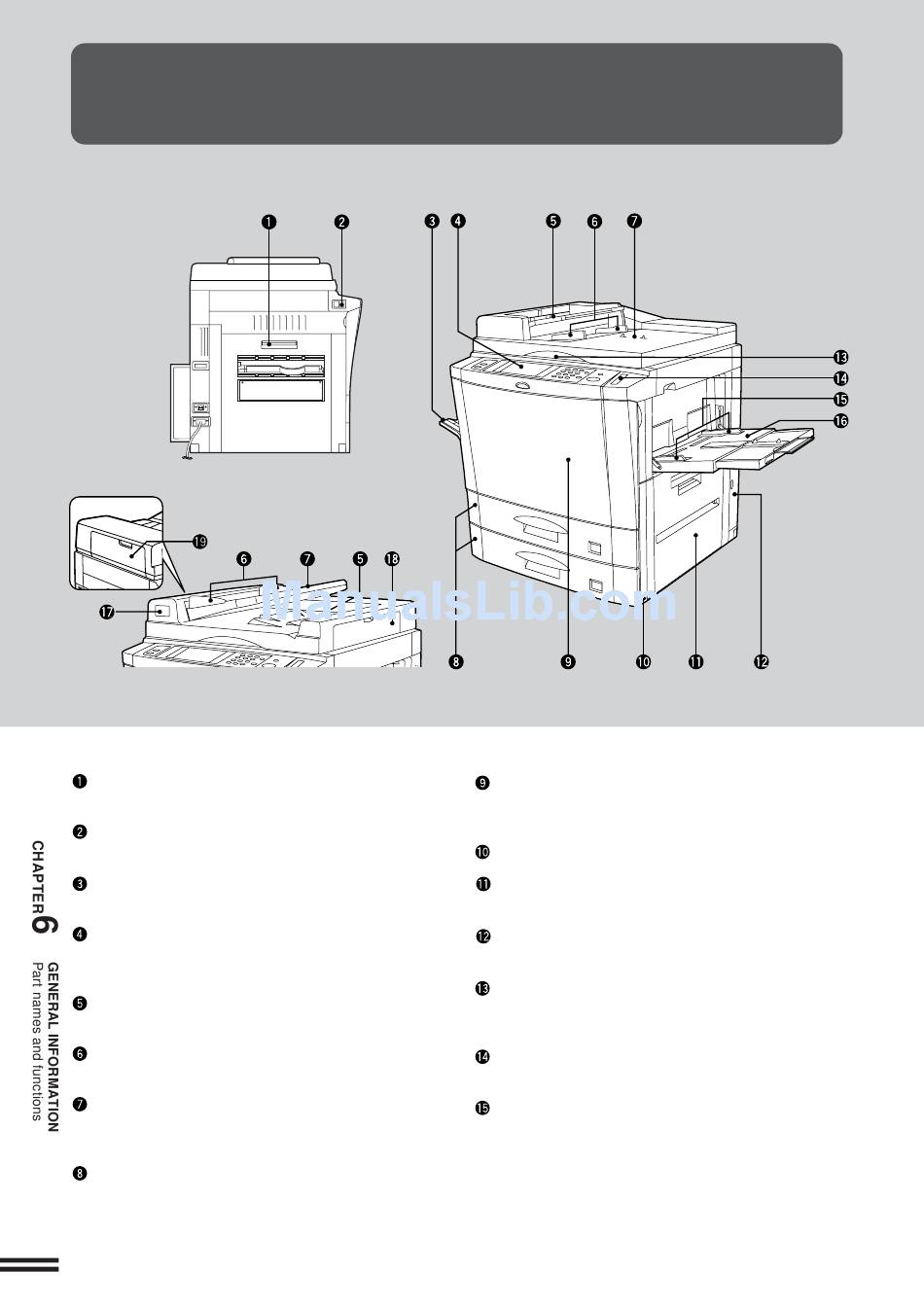

PART NAMES AND FUNCTIONS

Exterior

[AR-286/AR-336]
Exit area cover
Open to remove misfed paper.
Power switch
Press to turn copier power on and off.
Exit tray (optional)
Finished copies are deposited in the exit tray.
Operation panel
All copier controls are located here for easy
operation.
SPF/RADF exit area
Finished originals are output here.
Original guides
Adjust to the size of the originals.
Document feeder tray
Holds up to 30 (AR-281) or 50 (AR-286/AR-336)
originals.
Paper trays
Each tray holds 500 sheets of paper.
6-2
Front cover
Open to remove misfeeds and to service the
copier.
Handles
Right side cover
Open to remove misfeeds in the paper feed area.
Toner collecting container cover
Open to replace the toner collecting container.
Document glass
All originals which cannot be copied from the SPF/
RADF must be copied here.
Paper clip tray
Keep paper clips here.
Bypass tray paper guides
Adjust to the width of the copy paper.
[AR-281]
