Hans Grohe Metris S 31063XX1 Installation Instructions / Warranty

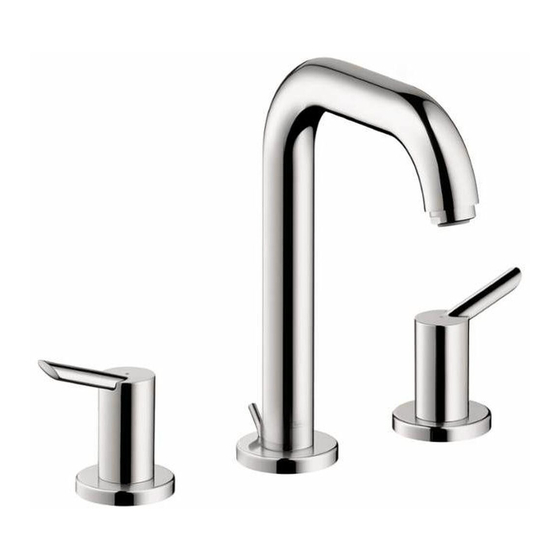

Metris widespread lavatory faucet 31063xx1 metris widespread bidet faucet 31263xx1 talis s widespread lavatory faucet 32310xx1 focus widespread lavatory faucet 31730xx1.
Hide thumbs

Advertisement

Installation Instructions / Warranty
Metris
Metris
31063XX1
31263XX1
Talis
Focus
32310XX1
31730001
Previous page
Next page

Advertisement

Table of Contents

   Related Manuals for Hans Grohe Metris S 31063XX1

   Summary of Contents for Hans Grohe Metris S 31063XX1

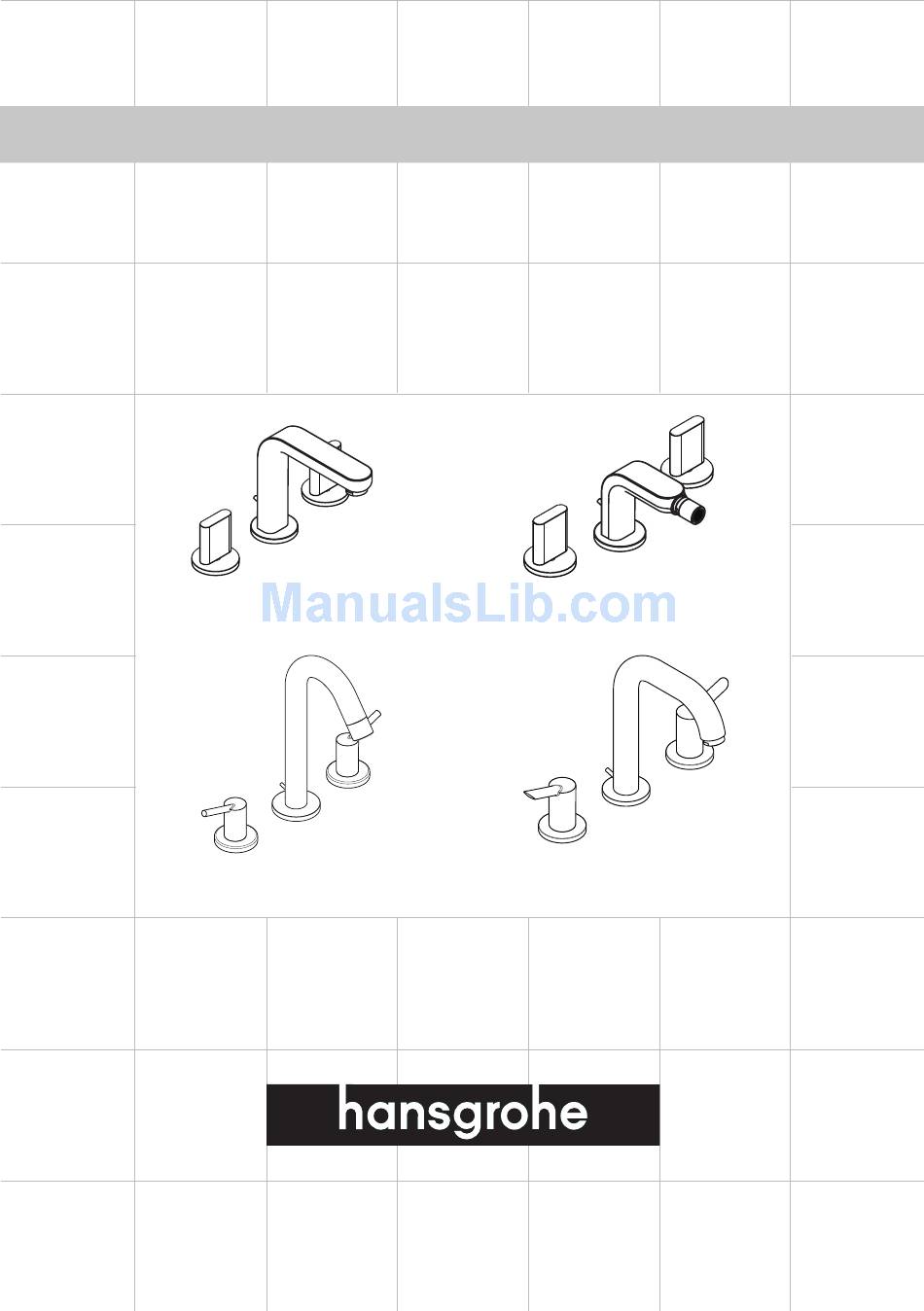

  • Page 1 Installation Instructions / Warranty Metris Metris 31063XX1 31263XX1 Talis Focus 32310XX1 31730001...
  • Page 2 Metris Widespread Lavatory Faucet Metris Widespread Bidet Faucet Talis S Widespread Lavatory Faucet Focus Widespread Lavatory Faucet Product Information Requires 1/2" supply lines (not included) Max. mounting surface thickness Hole sizes in mounting surface Spout 1 3/8" Valves 1 1/4" Max.
  • Page 3 31730XX1 32310XX1 Note: To prevent shipping damage, the spout is attached to the spout escutcheon with two adhesive strips. These strips must be removed before the spout is installed. Loosen the spout screw with a 2.5 mm Allen wrench.Pull the spout away from the escutcheon. adhesive strips Remove the adhesive strips.
  • Page 4 Installation Remove the valve mounting nuts from the valves. From below the mounting surface, push the valves up into the holes. Install the mounting nuts on the valves. Tighten the tensioning screws. Place the handles over the valve mounting nuts. Tighten the handles by rotating the escutcheons clockwise.
  • Page 5 Screw the connecting hoses into the spout tee. Slide the 3/8" compression nuts and ferrules over the ends of the hoses. Connect the hoses to the valve outlets. Use two wrenches so that the hoses do not twist or become loosened from the spout tee.

  • Page 6: Install The Pop-up Drain

    Install the pop-up drain Remove the plunger assembly. Unscrew the drain outlet flange from the tee. plunger Unscrew the tailpiece from the tee. Wrap height adjuster the threads with two layers of Teflon tape and replace. flange Install the white, flexible sealing gasket on the flange.

  • Page 7: User Instructions

    User Instructions Turn the right handle forward (clockwise) to turn the cold water on. Turn the handle back (counter- clockwise) to turn the cold water off. Turn the left handle forward (counter-clockwise) to turn the hot water on. Turn it back (clockwise) to turn the hot water off.
  • Page 8 Replacement Parts Metris handle - hot handle - cold valve set hot cartridge cold cartridge connection hose 3/8" compression ftg aerator pull rod spout mounting kit 10 spout 11 spout escutcheon 12 o-ring 11 x 2 13 bidet spout 14 aerator 15 ball joint 16 aerator 17 handle, hot...
  • Page 9 Talis Focus...
  • Page 10 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
  • Page 11 the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A.
  • Page 12 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770-360-9880 • Fax 770-360-9887 www.hansgrohe-usa.com...

This manual is also suitable for:

Widespread lavatory faucet 31263xx1Widespread lavatory faucet 31730001Talis 32310xx1Focus31730001 seriesMetris 31263xx1Focus 31730001
