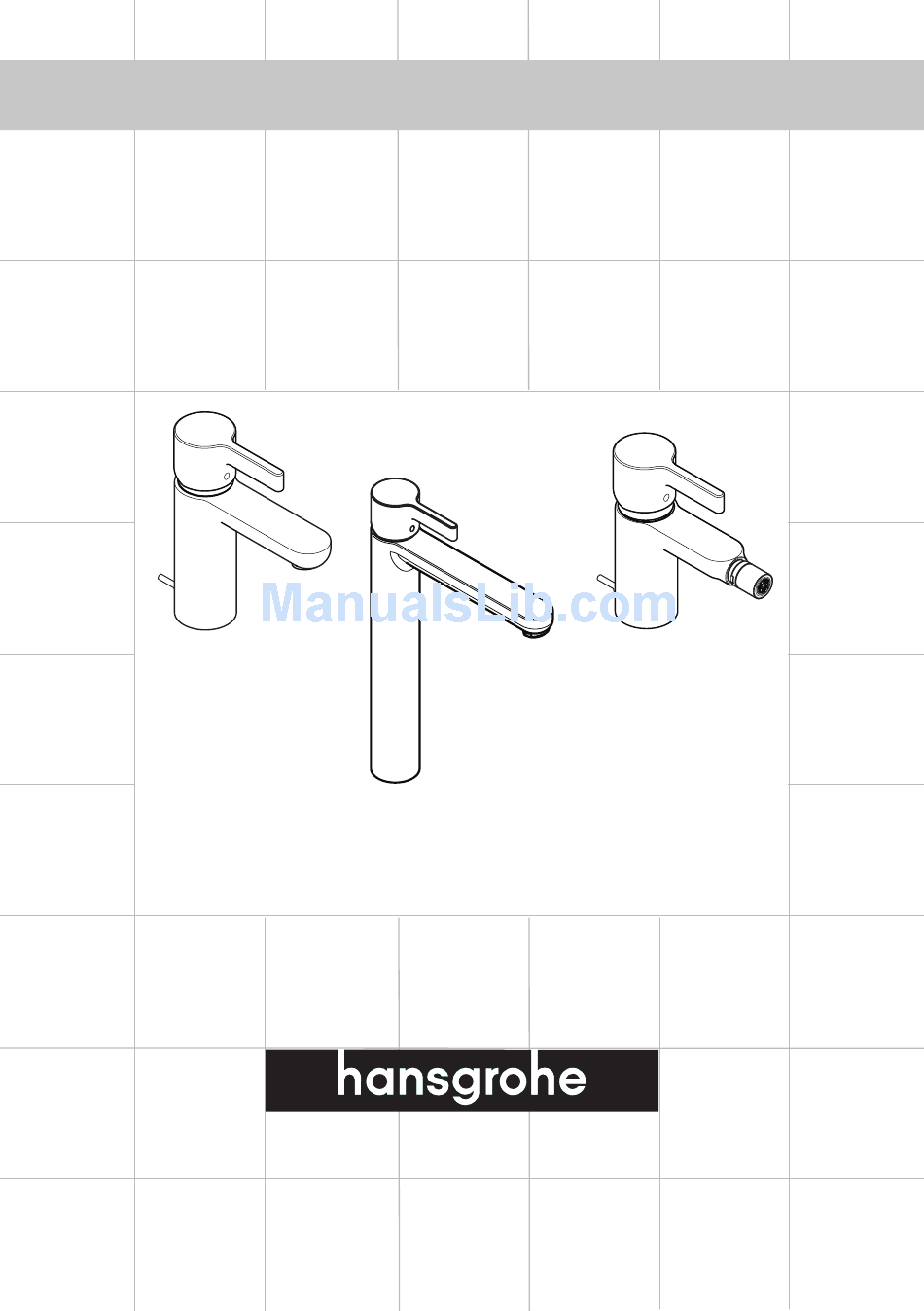

- Page 1 Installation Instructions / Warranty Metris 31060XX1 31020XX1 31261XX1...
- Page 2 Metris Single Control Lavatory Mixer 31060XX1 Tall Lavatory Mixer 31020XX1 Single Control Bidet Mixer 31261XX1 31060XX1 Technical Specification Recommended incoming water pressure Recommended incoming hot water temperature Hole size in mounting surface Maximum mounting surface thickness Flow rate Supply hoses require stops with 3/8” compression fittings (not included) Bidet mixer 31261XX1 is not intended for use on a bidet with a vertical spray.
- Page 3 Installation Place the faucet and the sealing ring on the countertop. From below, install the fiber washer, friction washer and mounting nut. Tighten the mounting nut and the tension- ing screws. sealing ring fiber washer friction washer mounting nut tensioning screws Attach the hoses to the supply stops with 3/8”...
-
Page 4: Install The Pop-Up Drain
Install the Pop-up Drain plunger Remove the plunger assembly. height adjuster Unscrew the drain outlet flange from the tee. flange Unscrew the tailpiece from the tee. Wrap the threads with plumbers’ thread tape and replace. Install the white, flexible sealing gasket to sealing gasket the flange. - Page 5 Reset the High Temperature Limit Stop (optional) Close the drain OR cover it with a wash cloth. Use the included 4 mm Allen wrench to push the screw cover into the handle. Retrieve the screw cover when the handle is removed. Use the 4mm Allen wrench to loosen the handle screw 4 complete revolutions.
- Page 6 Replacement Parts handle 31093XXX screw cover 96338000 flange 97406XXX 97209000 cartridge 92730000 seal 95008000 aerator 13912XXX fixing set 13961000 connection hose 96321001 pull rod 96657XXX handle screw 96059000 o-ring, 30 x 2 98186000 o-ring 35 x 2 92604000 ball joint 97362XXX aerator 97360XXX...
- Page 7 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
- Page 8 including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship.
